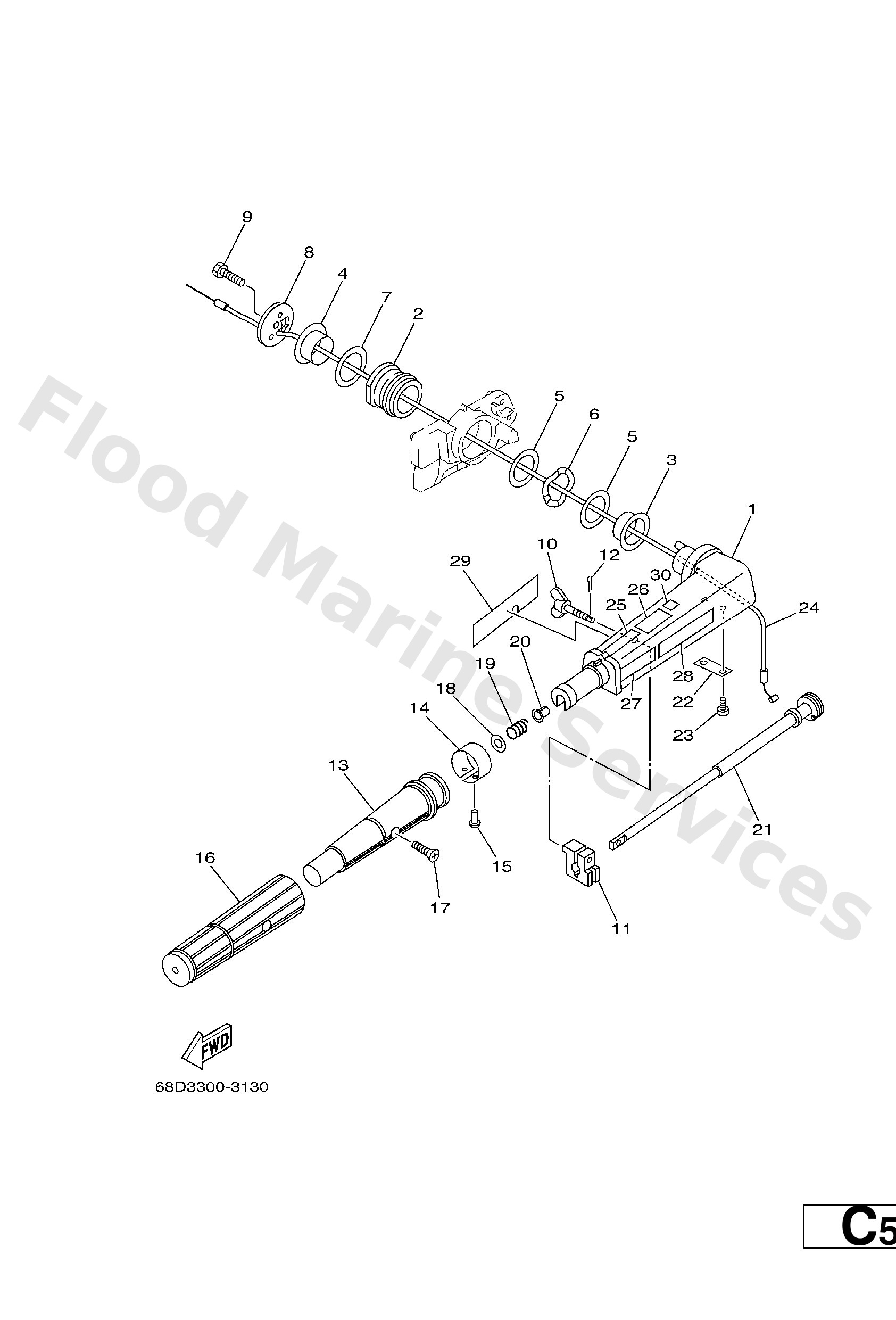

Diagram: STEERING

Diagram

Parts List

68D−G2111−00−4D
Handle, Steering
Diagram Reference: 1
Get Part
67D−42129−00
Bushing, rubber
Diagram Reference: 2
Get Part
68D−G2171−00
Bushing, 1
Diagram Reference: 3
Get Part
68D−G2172−00
Bushing, 2
Diagram Reference: 4
Get Part
68D−G2181−00
Washer, 1
Diagram Reference: 5
Get Part
69M−G2188−00
Washer,wave
Diagram Reference: 6
Get Part
68D−G2182−00
Washer, 2
Diagram Reference: 7
Get Part
68D−G2131−01
Cover, Handle Steering
Diagram Reference: 8
Get Part
97075−08025
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
6G1−42125−01
Bolt, friction adjusting
Diagram Reference: 10
Get Part
6N0−G2126−00
Piece, friction
Diagram Reference: 11
Get Part
91490−16010
Pin, cotter
Diagram Reference: 12
Get Part
68D−G2119−00
Grip, steering han
Diagram Reference: 13
Get Part
68D−G2137−00
Indicator, Throttle
Diagram Reference: 14
Get Part
90269−02M09
Rivet(6l5)
Diagram Reference: 15
Get Part
67D−42177−00
Rubber, handle
Diagram Reference: 16
Get Part
90149−05M13
Screw, countersunk
Diagram Reference: 17
Get Part
92903−10600
Washer, plate
Diagram Reference: 18
Get Part
90501−23215
Spring (655)
Diagram Reference: 19
Get Part
90386−08032
Bushing (650)
Diagram Reference: 20
Get Part
69M−G2138−00
Lever, throttle
Diagram Reference: 21
Get Part
68D−G2159−00
Stay
Diagram Reference: 22
Get Part
97885−05012
Screw,pan head (646)
Diagram Reference: 23
Get Part
68D−F6301−00
Trottle cable
Diagram Reference: 24
Get Part
6E0−83627−41
Label, caution 7
Diagram Reference: 25
Get Part
6E0−83627−51
Label, Caution 7
Diagram Reference: 26
Get Part
6A1−2415A−41
Label, caution
Diagram Reference: 27
Get Part
6A1−2415A−51
Label, Caution
Diagram Reference: 28
Get Part
68D−E571Y−60
13 −
Diagram Reference: 29
Get Part
6N0−F8176−00
13 −
Diagram Reference: 30
Get Part
