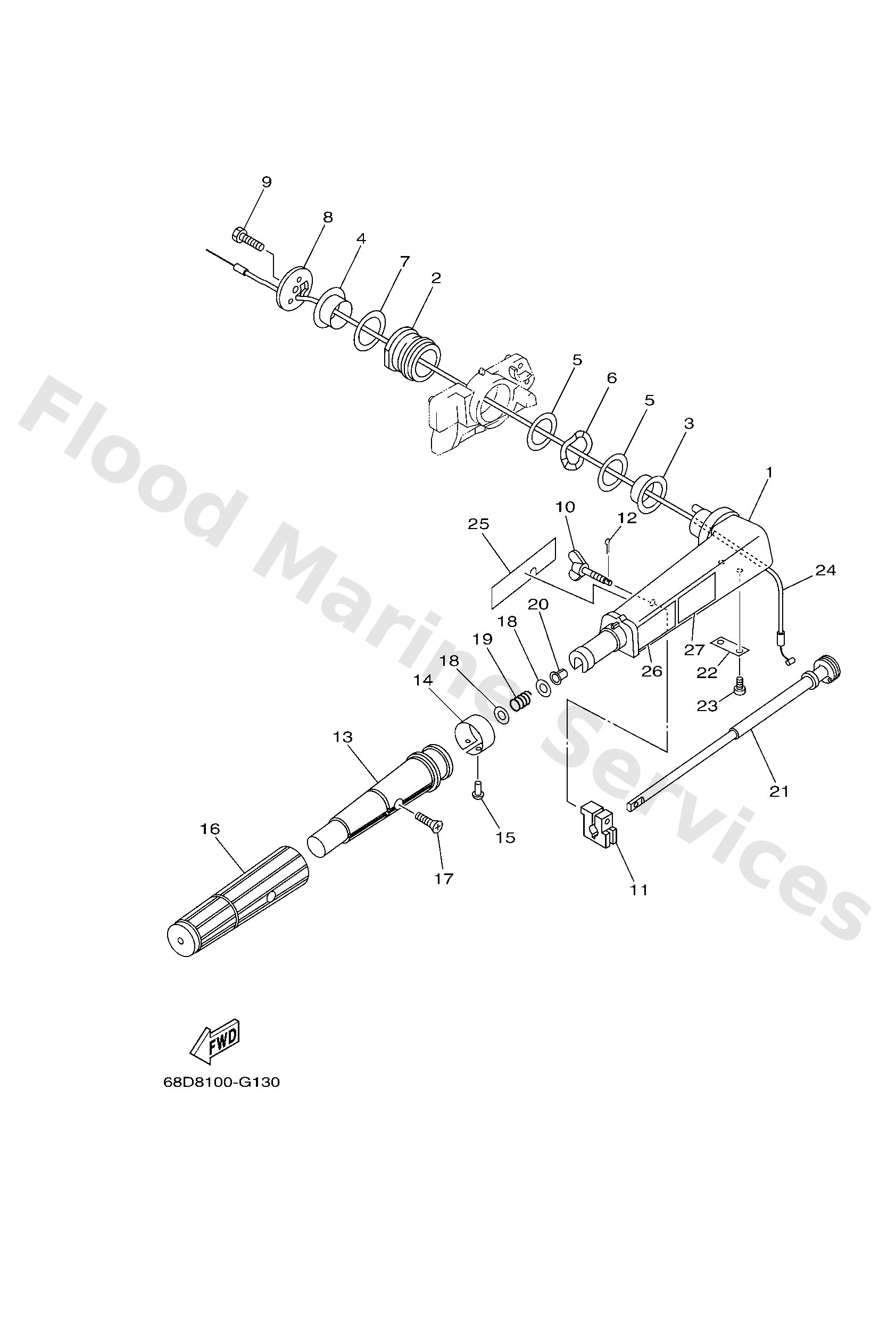

Diagram: STEERING

Diagram

Parts List

68DG2111004D
Handle, Steering
Diagram Reference: 1
Get Part
67D4212900
Bushing, rubber
Diagram Reference: 2
Get Part
68DG217100
Bushing, 1
Diagram Reference: 3
Get Part
68DG217200
Bushing, 2
Diagram Reference: 4
Get Part
68DG218100
Washer, 1
Diagram Reference: 5
Get Part
69MG218800
Washer,wave
Diagram Reference: 6
Get Part
68DG218200
Washer, 2
Diagram Reference: 7
Get Part
68DG213101
Cover, Handle Steering
Diagram Reference: 8
Get Part
9707508025
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
6G14212501
Bolt, friction adjusting
Diagram Reference: 10
Get Part
6G14212600
Piece, friction
Diagram Reference: 11
Get Part
9149016010
Pin, cotter
Diagram Reference: 12
Get Part
68DG211900
Grip, steering han
Diagram Reference: 13
Get Part
68DG213700
Indicator, Throttle
Diagram Reference: 14
Get Part
9026902M09
Rivet(6l5)
Diagram Reference: 15
Get Part
68DG217710
Rubber, handle
Diagram Reference: 16
Get Part
9014905M13
Screw, countersunk
Diagram Reference: 17
Get Part
9020110M02
Washer, plate(6g9)
Diagram Reference: 18
Get Part
9050123215
Spring (655)
Diagram Reference: 19
Get Part
9038608032
Bushing (650)
Diagram Reference: 20
Get Part
6G14213801
Lever, throttle
Diagram Reference: 21
Get Part
68DG215900
Stay
Diagram Reference: 22
Get Part
9788505012
Screw,pan head (646)
Diagram Reference: 23
Get Part
68DF630110
Trottle cable
Diagram Reference: 24
Get Part
68DE571Y60
Mark, Caution
Diagram Reference: 25
Get Part
6AH4279440
Label, warning (ge
Diagram Reference: 26
Get Part
6AH4279450
Label, warning (ge
Diagram Reference: 27
Get Part
