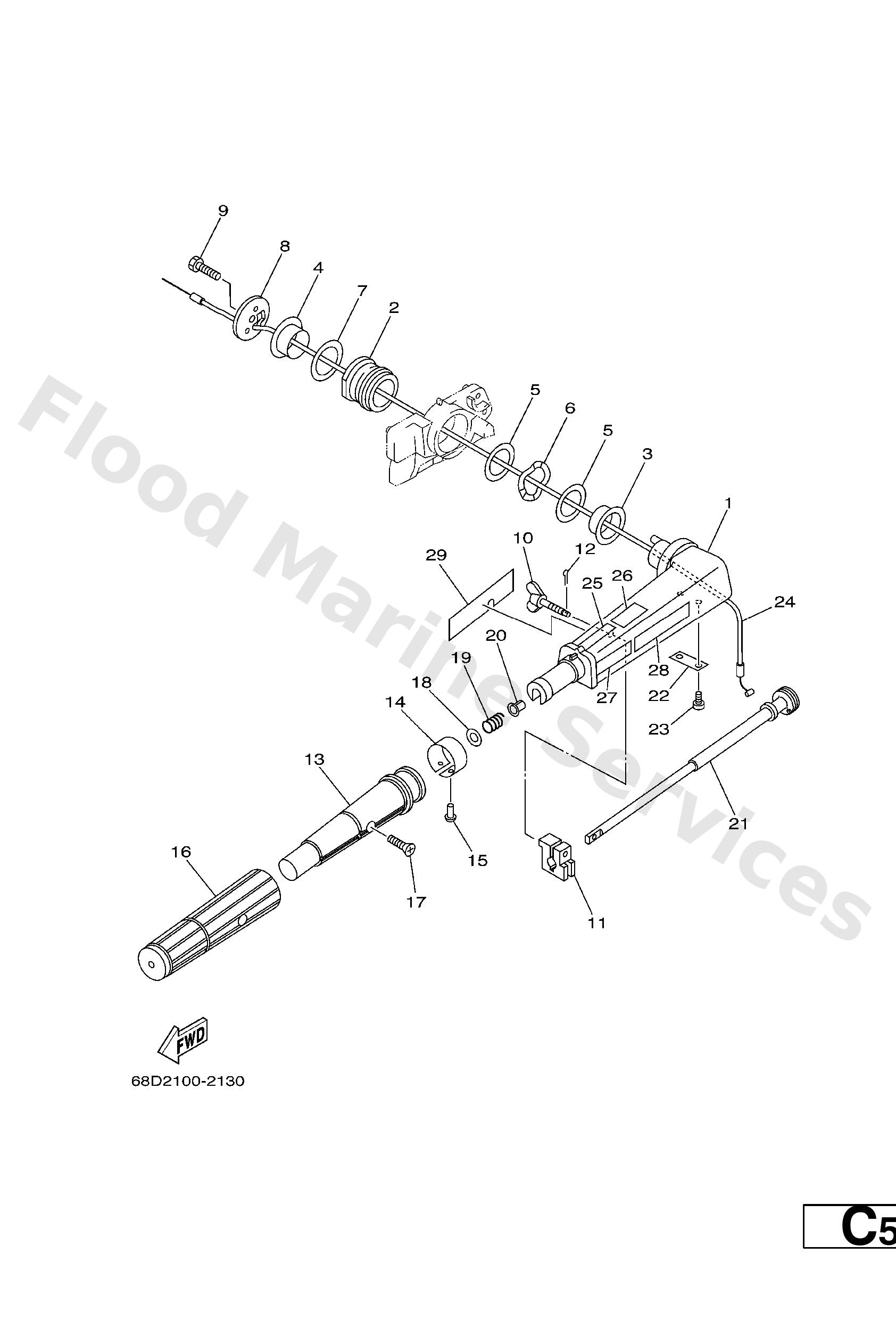

Diagram: STEERING

Diagram

Parts List

68D−G2111−00−4D

Handle, Steering

Diagram Reference: 1

67D−42129−00

Bushing, rubber

Diagram Reference: 2

68D−G2171−00

Bushing, 1

Diagram Reference: 3

68D−G2172−00

Bushing, 2

Diagram Reference: 4

68D−G2181−00

Washer, 1

Diagram Reference: 5

69M−G2188−00

Washer,wave

Diagram Reference: 6

68D−G2182−00

Washer, 2

Diagram Reference: 7

68D−G2131−01

Cover, Handle Steering

Diagram Reference: 8

97075−08025

Bolt, hexagon deep recess

Diagram Reference: 9

6G1−42125−01

Bolt, friction adjusting

Diagram Reference: 10

6N0−G2126−00

Piece, friction

Diagram Reference: 11

91490−16010

Pin, cotter

Diagram Reference: 12

68D−G2119−00

Grip, steering han

Diagram Reference: 13

68D−G2137−00

Indicator, Throttle

Diagram Reference: 14

90269−02M09

Rivet(6l5)

Diagram Reference: 15

67D−42177−00

Rubber, handle

Diagram Reference: 16

90149−05M13

Screw, countersunk

Diagram Reference: 17

92903−10600

Washer, plate

Diagram Reference: 18

90501−23215

Spring (655)

Diagram Reference: 19

90386−08032

Bushing (650)

Diagram Reference: 20

69M−G2138−00

Lever, throttle

Diagram Reference: 21

68D−G2159−00

Stay

Diagram Reference: 22

97885−05012

Screw,pan head (646)

Diagram Reference: 23

68D−F6301−00

Trottle cable

Diagram Reference: 24

6E0−83627−41

Label, caution 7

Diagram Reference: 25

6E0−83627−51 (FOR CANADA,CARIB)

Label, Caution 7

Diagram Reference: 26

6A1−2415A−41

Label, caution

Diagram Reference: 27

6A1−2415A−51 (FOR CANADA,CARIB)

Label, Caution

Diagram Reference: 28

68D−E571Y−40 (FOR USA,OCEANIA)

13 −

Diagram Reference: 29

68D−E571Y−50 (FOR CANADA)

13 −

Diagram Reference: 29

68D−E571Y−60 (FOR CARIB)

13 −

Diagram Reference: 29
