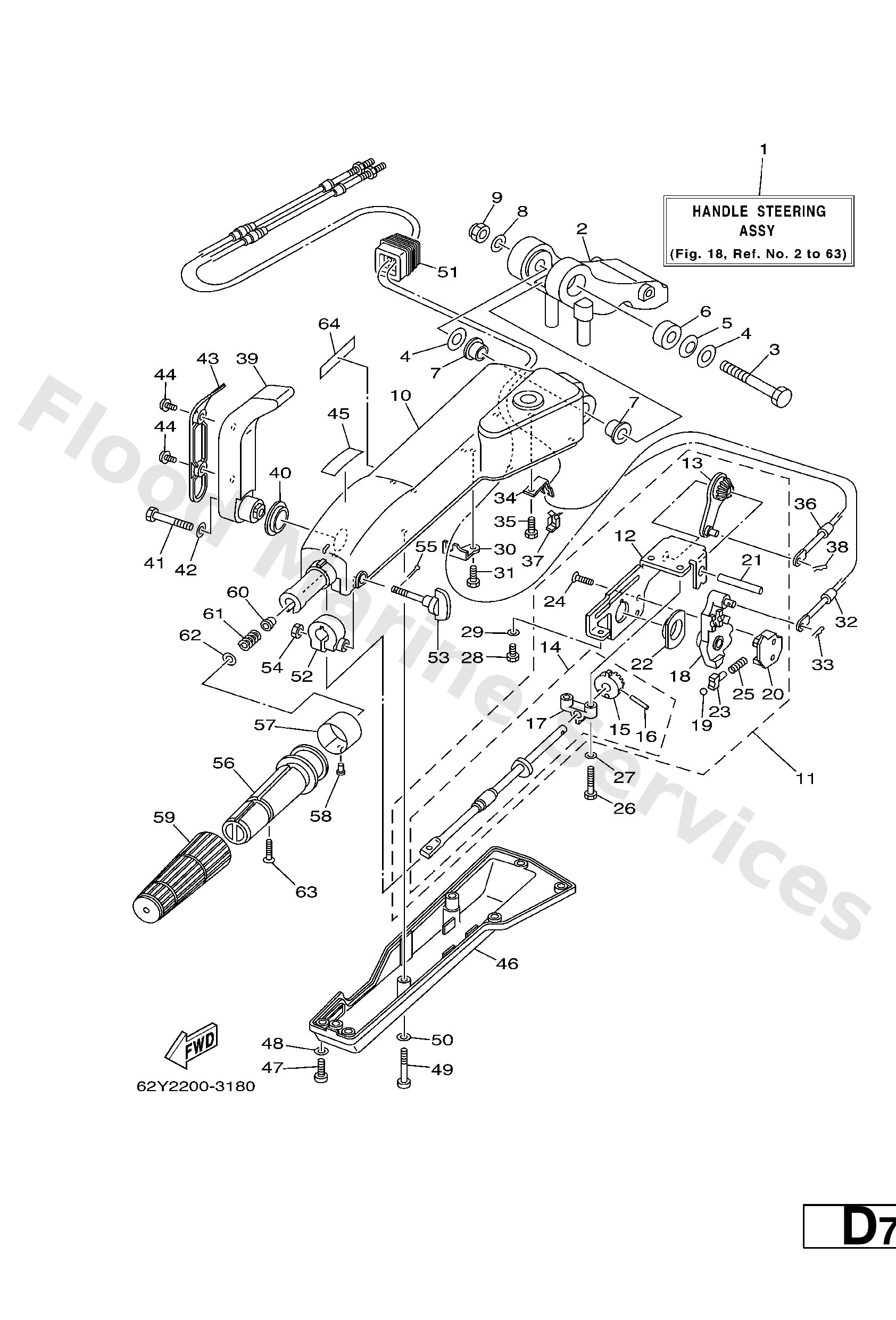

Diagram: STEERING 1

Diagram

Parts List

90101−12M09
Bolt
Diagram Reference: 3
Get Part
92990−12200
Ybs66-12 washer,plain
Diagram Reference: 4
Get Part
90206−12M22
Washer, wave(6b0)
Diagram Reference: 5
Get Part
90387−12M02
Collar(6b0)
Diagram Reference: 6
Get Part
90386−12M93
Bush(6b0)
Diagram Reference: 7
Get Part
92990−12600
Washer, plate(663)
Diagram Reference: 8
Get Part
90185−12M12
Nut, self-locking(6e5)
Diagram Reference: 9
Get Part
69W−44100−10
Shift Link assembly
Diagram Reference: 11
Get Part
67C−44104−00
Plate Comp.
Diagram Reference: 12
Get Part
69W−48261−00
Arm, Throttle
Diagram Reference: 13
Get Part
69W−42115−10
Shaft, Steering Handle
Diagram Reference: 14
Get Part
91690−30025
Pin, spring
Diagram Reference: 16
Get Part
67G−42159−00
17 −
Diagram Reference: 17
Get Part
67C−44113−00
Cam plate, handle
Diagram Reference: 18
Get Part
63D−48236−00
Roller, detent
Diagram Reference: 19
Get Part
67C−48119−00
Cover
Diagram Reference: 20
Get Part
67G−42153−00
17 −
Diagram Reference: 21
Get Part
67G−44132−00
Bushing
Diagram Reference: 22
Get Part
63D−48237−00
Adaptor
Diagram Reference: 23
Get Part
98785−05014
Screw 3
Diagram Reference: 24
Get Part
63D−48238−00
Spring, detent
Diagram Reference: 25
Get Part
97095−06030
Bolt(jf7)
Diagram Reference: 26
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 27
Get Part
97095−06014
Bolt(gj3)
Diagram Reference: 28
Get Part
67G−48531−00
17 −
Diagram Reference: 30
Get Part
67C−48321−00
Cable
Diagram Reference: 32
Get Part
90468−10005
Pin, hair 6264123500
Diagram Reference: 33
Get Part
69W−48538−00
18 −
Diagram Reference: 34
Get Part
69W−26301−00
Throttle cable assembly
Diagram Reference: 36
Get Part
63D−48538−00
Clamp, cable 1
Diagram Reference: 37
Get Part
67G−44159−00−4D
Handle, Gear Shift
Diagram Reference: 39
Get Part
90386−26MA3
Bush
Diagram Reference: 40
Get Part
97095−08040
Bolt, hexagon
Diagram Reference: 41
Get Part
92995−08600
Washer, plain (663)
Diagram Reference: 42
Get Part
67G−44173−00
Lever, Shift Control
Diagram Reference: 43
Get Part
90159−06M18
Screw, with washer(6b0)
Diagram Reference: 44
Get Part
6G8−44191−00
Indicator, shift
Diagram Reference: 45
Get Part
67G−42131−00
17 −
Diagram Reference: 46
Get Part
97885−06016
Screw, pan head(6b0)
Diagram Reference: 47
Get Part
97885−06040
Screw pan head
Diagram Reference: 49
Get Part
63D−42725−00
17 −
Diagram Reference: 51
Get Part
63D−42126−00
Friction, steering handle grip
Diagram Reference: 52
Get Part
63D−48154−00
Knob, Throttle
Diagram Reference: 53
Get Part
95380−06600
Nut(661)
Diagram Reference: 54
Get Part
91490−20010
Pin, cotter
Diagram Reference: 55
Get Part
69W−42119−00
Grip, Steering Handle
Diagram Reference: 56
Get Part
6J0−42137−00
Indicator, throttle
Diagram Reference: 57
Get Part
90269−02M09
Rivet(6l5)
Diagram Reference: 58
Get Part
6G1−42177−00
Rubber, handle
Diagram Reference: 59
Get Part
90386−08032
Bushing (650)
Diagram Reference: 60
Get Part
90501−23215
Spring (655)
Diagram Reference: 61
Get Part
92903−10600
Washer, plate
Diagram Reference: 62
Get Part
90149−05M13
Screw, countersunk
Diagram Reference: 63
Get Part
6E0−83627−41
Label, caution 7
Diagram Reference: 64
Get Part
