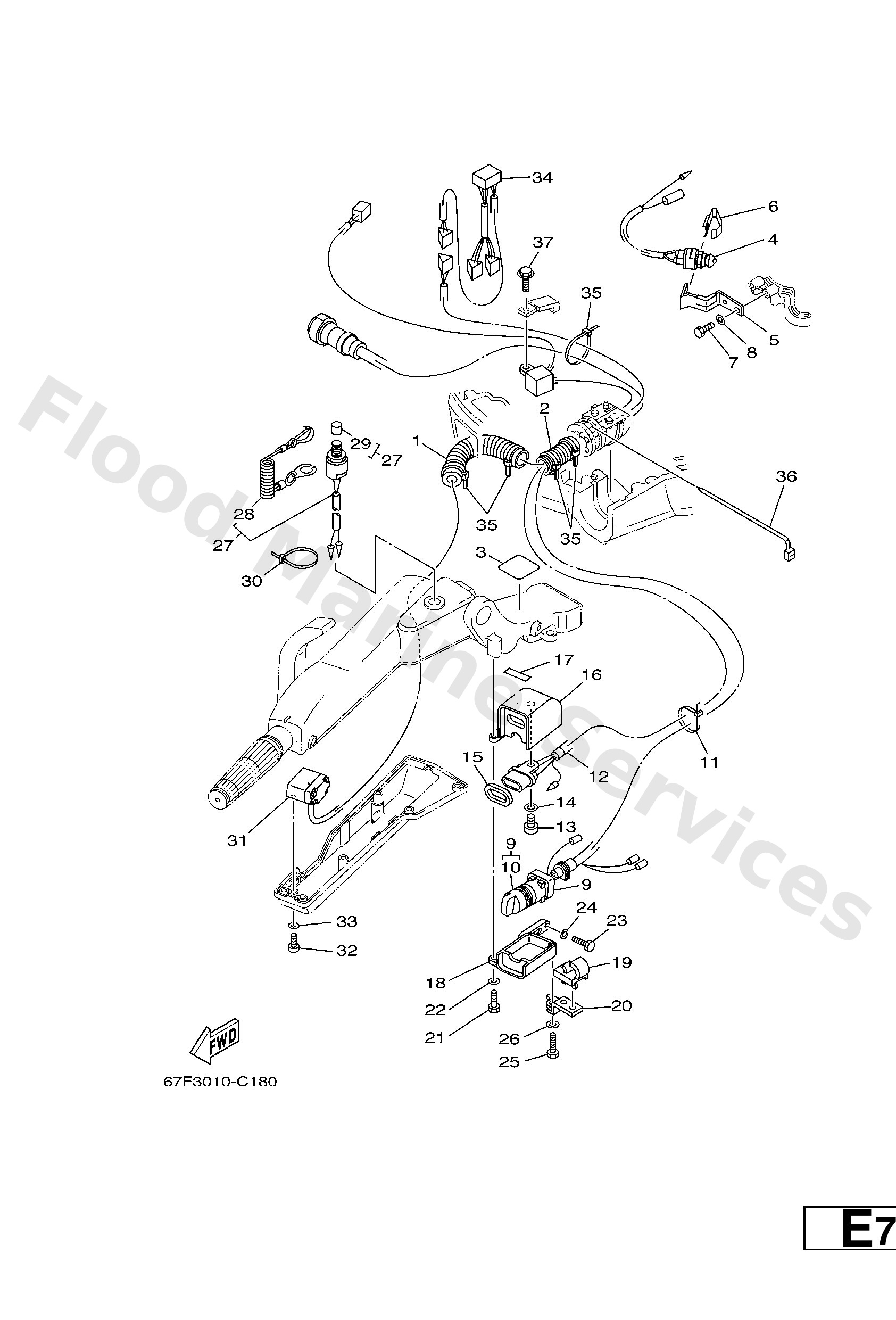

Diagram: STEERING 2

Diagram

Parts List

9044624M79 (AP)

Hose

Diagram Reference: 1

6G58355700 (AP)

Tube

Diagram Reference: 2

67G4273500 (AP)

Protector

Diagram Reference: 3

6888254011 (AP)

Neutral switch assembly

Diagram Reference: 4

67G8255401 (AP)

Stay, Neutral Switch

Diagram Reference: 5

62Y8255500 (AP)

Damper, Main Switch 1

Diagram Reference: 6

9709506014 (AP)

Bolt(gj3)

Diagram Reference: 7

9299506600 (AP)

Washer, plain (646)

Diagram Reference: 8

67G8251041 (AP)

Main switch assembly

Diagram Reference: 9

6768257700

Cap, key

Diagram Reference: 10

9046513M11 (AP)

Clamp (6e5)

Diagram Reference: 11

67G8430100 (AP)

Pilot Light assembly 1

Diagram Reference: 12

9788006012 (AP)

Screw, pan head(62j)

Diagram Reference: 13

9299006600 (AP)

Washer, plain (646)

Diagram Reference: 14

6H48358900 (AP)

Gasket

Diagram Reference: 15

67G82568004D (AP)

Cover, Main Switch

Diagram Reference: 16

67G8541500 (AP)

Mark, Signal Lamp

Diagram Reference: 17

63D8252F014D (AP)

Cover, main switch 2

Diagram Reference: 18

63D2436700 (AP)

Clamp, fuel pipe 2

Diagram Reference: 19

63D2436400 (AP)

Stay

Diagram Reference: 20

9709506025 (AP)

Bolt

Diagram Reference: 21

9709506020 (AP)

Bolt(7u8)

Diagram Reference: 23

9709506030 (AP)

Bolt(jf7)

Diagram Reference: 25

69W8257500 (AP)

Engine stop switch assembly

Diagram Reference: 27

6828255600

Lanyard, stop switch

Diagram Reference: 28

6898257Y00

Cap

Diagram Reference: 29

67G8256300 (AP)

Trim & tilt switch assembly

Diagram Reference: 31

9788506016 (AP)

Screw, pan head(6b0)

Diagram Reference: 32

63D8372800 (AP)

Connector assembly

Diagram Reference: 34

9046513M24 (AP)

Band, switch cord

Diagram Reference: 35

9046513M30 (AP)

Clamp

Diagram Reference: 36

9010906M81 (AP)

Bolt

Diagram Reference: 37
