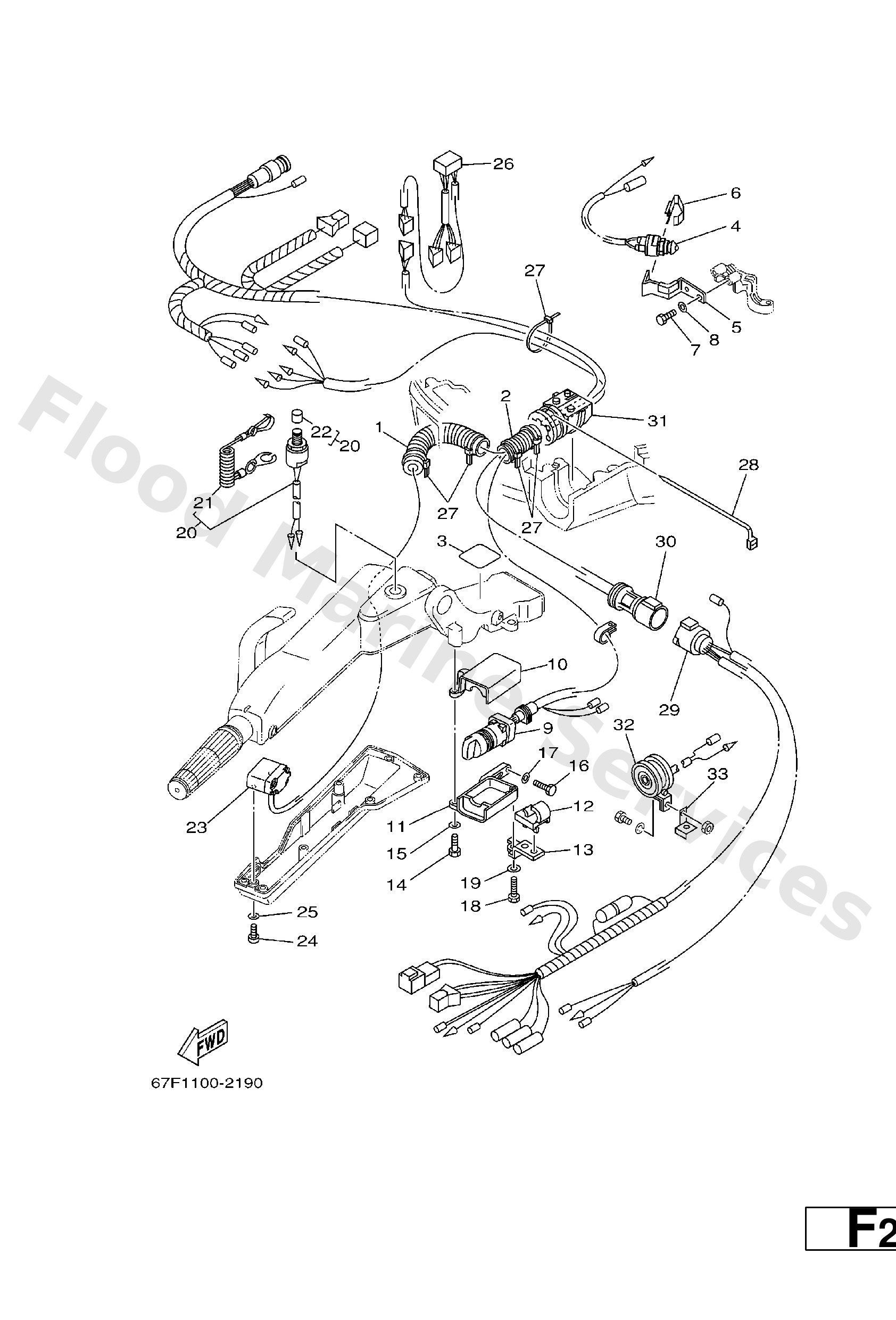

Diagram: STEERING 2

Diagram

Parts List

90446−24M79 (AP)

Hose

Diagram Reference: 1

6K3−83557−00 (AP)

Tube

Diagram Reference: 2

67G−42735−00 (AP)

Protector

Diagram Reference: 3

688−82540−11 (AP)

Neutral switch assembly

Diagram Reference: 4

67G−82554−01 (AP)

Stay, Neutral Switch

Diagram Reference: 5

62Y−82555−00 (AP)

Damper, Main Switch 1

Diagram Reference: 6

97095−06014 (AP)

Bolt(gj3)

Diagram Reference: 7

92995−06600 (AP)

Washer, plain (646)

Diagram Reference: 8

67G−82510−30 (AP)

Main Switch assembly

Diagram Reference: 9

63D−8252E−01−4D (AP)

Cover, main switch 1

Diagram Reference: 10

63D−8252F−01−4D (AP)

Cover, main switch 2

Diagram Reference: 11

63D−24367−00 (AP)

Clamp, fuel pipe 2

Diagram Reference: 12

63D−24364−00 (AP)

Stay

Diagram Reference: 13

97095−06025 (AP)

Bolt

Diagram Reference: 14

97095−06020 (AP)

Bolt(7u8)

Diagram Reference: 16

97095−06030 (AP)

Bolt(jf7)

Diagram Reference: 18

63D−82575−00 (AP)

Engine stop switch assembly

Diagram Reference: 20

682−82556−00

Lanyard, stop switch

Diagram Reference: 21

689−8257Y−00

Cap

Diagram Reference: 22

67G−82563−00 (AP)

Trim & tilt switch assembly

Diagram Reference: 23

97885−06016 (AP)

Screw, pan head(6b0)

Diagram Reference: 24

63D−83728−00 (AP)

Connector assembly

Diagram Reference: 26

90465−13M24 (AP)

Band, switch cord

Diagram Reference: 27

90465−13M30 (AP)

Clamp

Diagram Reference: 28

6H5−83553−11 (AP)

19 −

Diagram Reference: 29

63D−82586−00 (AP)

19 −

Diagram Reference: 30

67G−42725−00 (AP)

Grommet

Diagram Reference: 31

688−83383−11 (AP)

Buzzer

Diagram Reference: 32

6H5−83386−00 (AP)

19 −

Diagram Reference: 33
