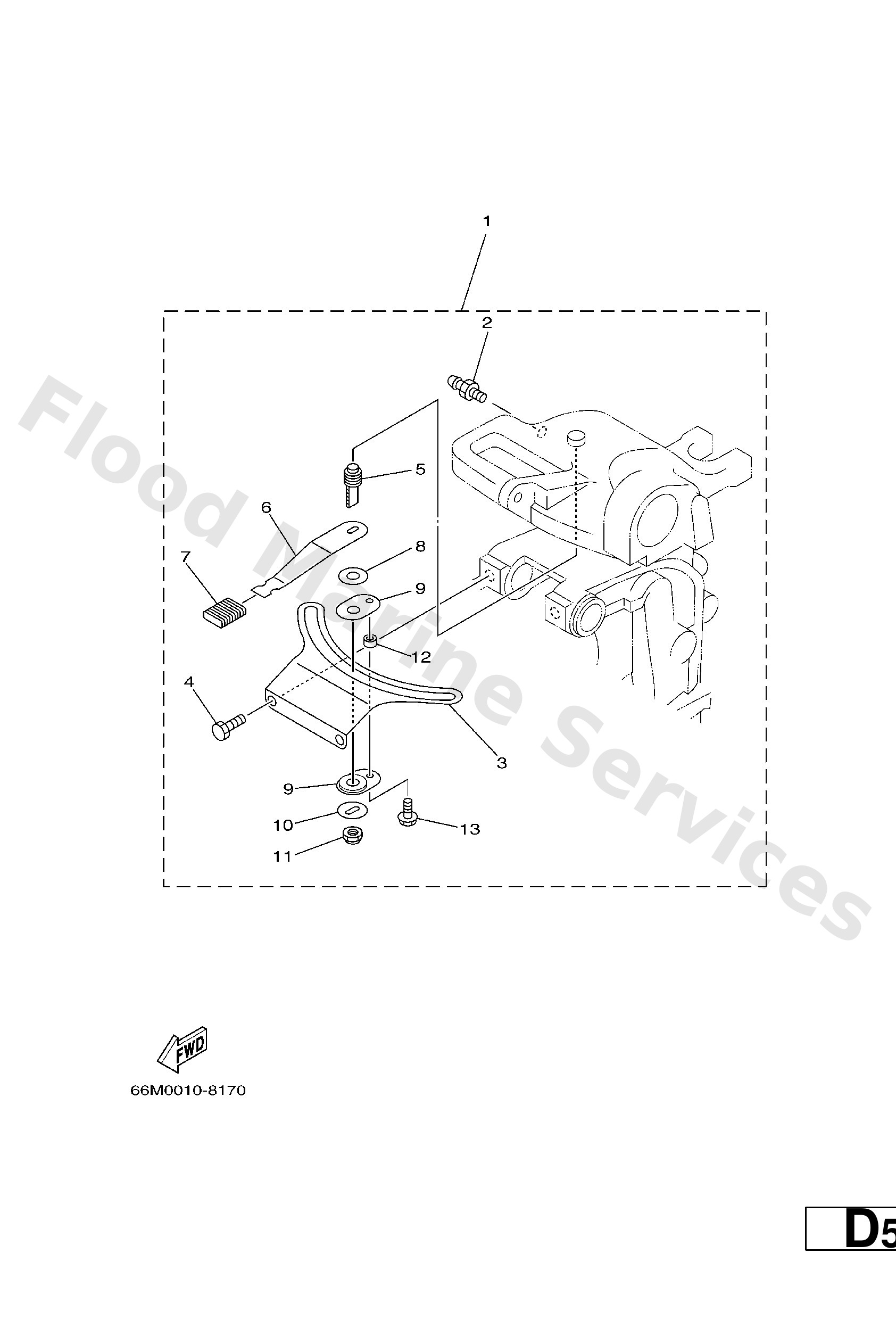

Diagram: STEERING FRICTION

Diagram

Parts List

66M−42508−01
Steering friction assembly
Diagram Reference: 1
Get Part
93700−06M03
Nipple, grease(6a1)
Diagram Reference: 2
Get Part
66M−42527−00
Plate, friction
Diagram Reference: 3
Get Part
90109−08M91
Bolt, hexagon deep recess
Diagram Reference: 4
Get Part
65W−42562−00
Shaft, steering lock
Diagram Reference: 5
Get Part
66M−42561−00
Knob, Steering Lock
Diagram Reference: 6
Get Part
689−43633−00
Cover, tilt lever
Diagram Reference: 7
Get Part
90202−10M56
Washer, plate
Diagram Reference: 8
Get Part
65W−42528−00
Plate, friction
Diagram Reference: 9
Get Part
90209−10M26
Washer
Diagram Reference: 10
Get Part
90185−10M14
Nut, self-locking
Diagram Reference: 11
Get Part
90387−05M11
Collar
Diagram Reference: 12
Get Part
90119−05M03
Bolt, With Washer
Diagram Reference: 13
Get Part
