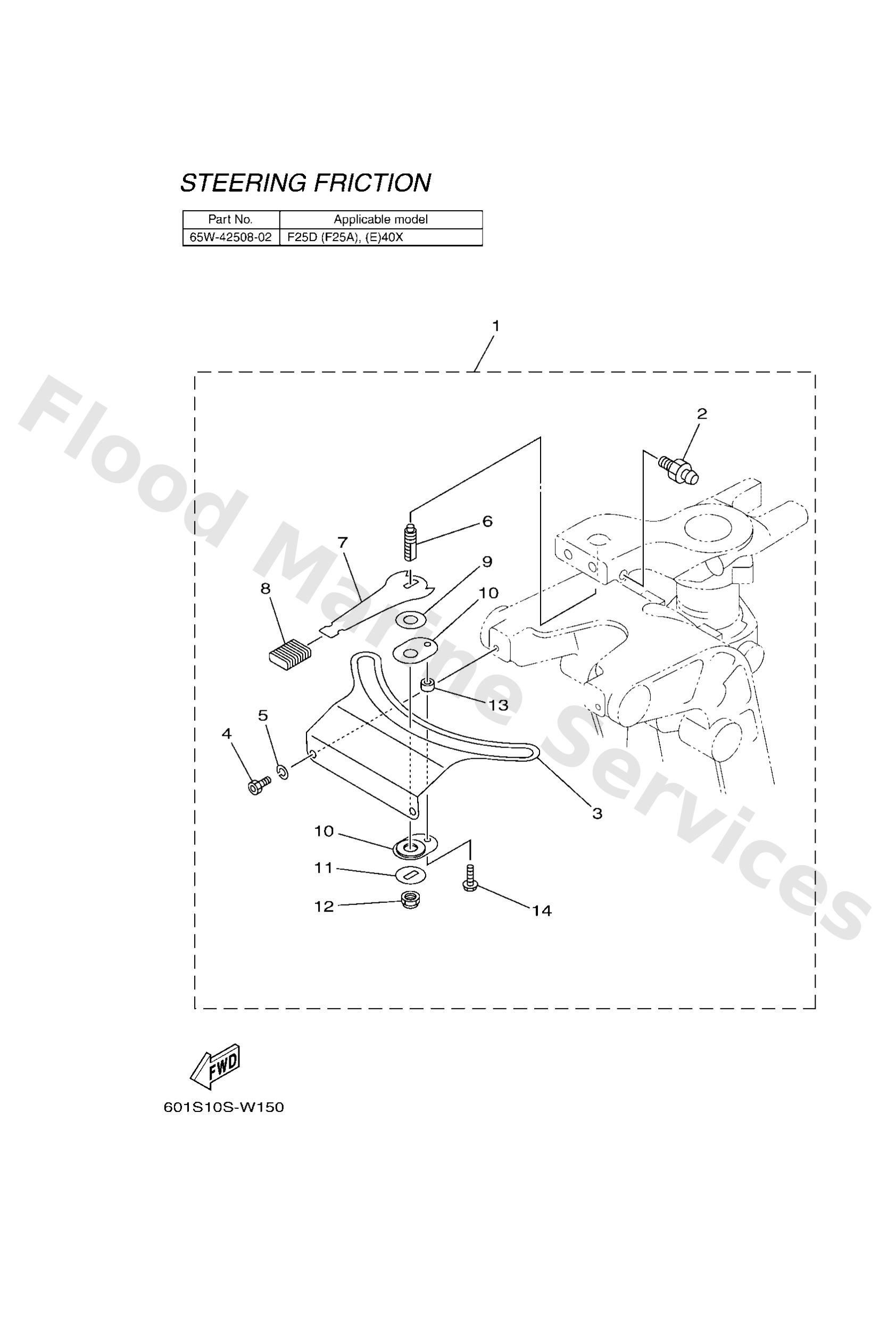

Diagram: STEERING FRICTION 5

Diagram

Parts List

65W4250802
Steering Friction assembly
Diagram Reference: 1
Get Part
9370006004
Nipple, grease(6a1)
Diagram Reference: 2
Get Part
65W4252700
Plate, friction
Diagram Reference: 3
Get Part
9010906M88
Bolt(61a)
Diagram Reference: 4
Get Part
9299006100
Washer(6a1)
Diagram Reference: 5
Get Part
65W4256200
Shaft, steering lock
Diagram Reference: 6
Get Part
65W4256100
Knob, steering lock
Diagram Reference: 7
Get Part
6894363301
Cover, tilt lever
Diagram Reference: 8
Get Part
9020210M56
Washer, plate
Diagram Reference: 9
Get Part
65W4252800
Plate, friction
Diagram Reference: 10
Get Part
9020910M26
Washer
Diagram Reference: 11
Get Part
9018510M14
Nut, self-locking
Diagram Reference: 12
Get Part
9038705054
Collar
Diagram Reference: 13
Get Part
9010905M89
Bolt, with washer
Diagram Reference: 14
Get Part
