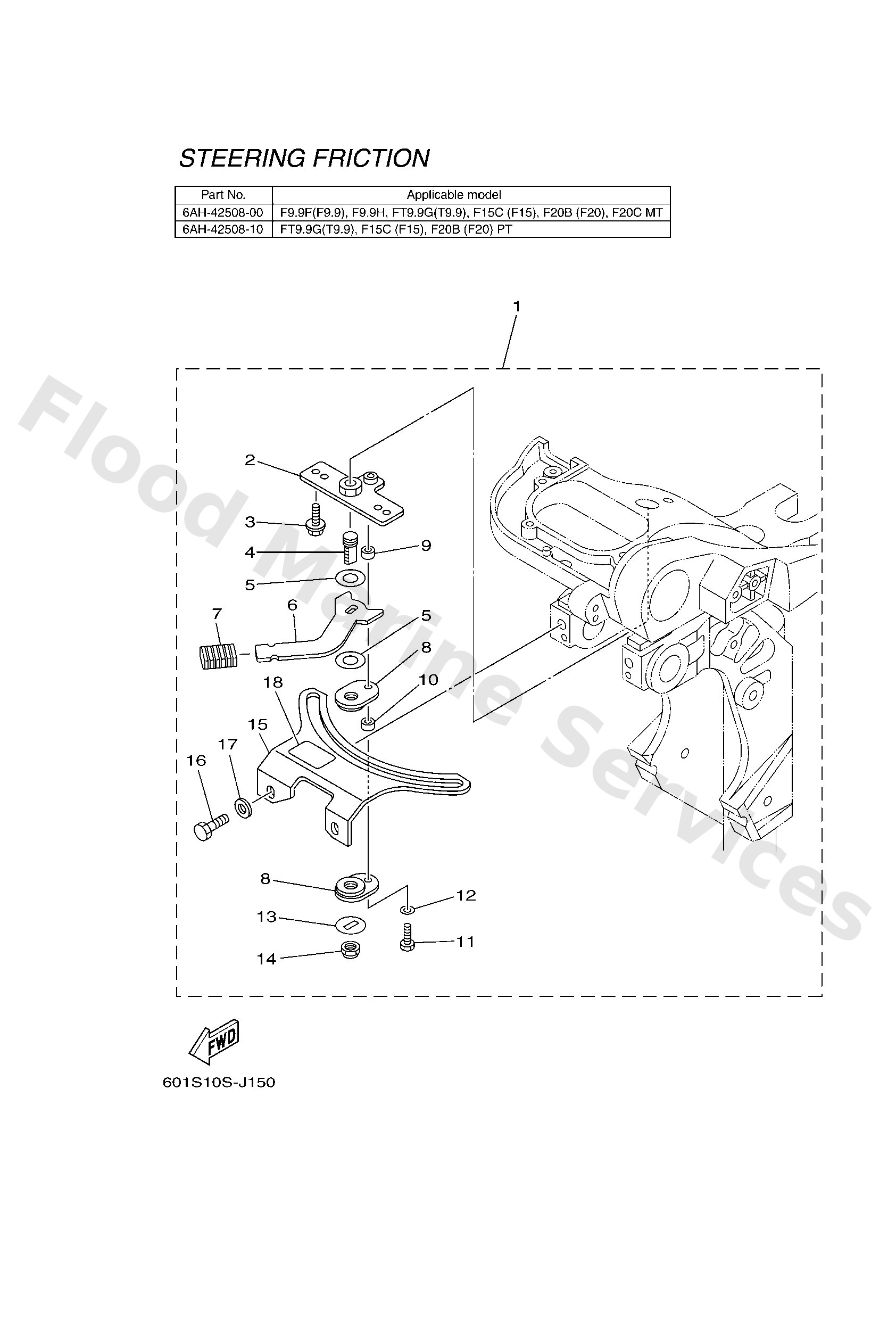

Diagram: STEERING FRICTION 6

Diagram

Parts List

6AH4250810 (UR)
ステアリングフリクシヨンアセンブリ
Diagram Reference: 1
Get Part
6AH4250800 (UR)
Steering friction assembly
Diagram Reference: 1
Get Part
68T4252501
Plate, friction
Diagram Reference: 2
Get Part
9011905018
Bolt, with washer
Diagram Reference: 3
Get Part
67C4256200
Shaft, steering lock
Diagram Reference: 4
Get Part
9020210M56
Washer, plate
Diagram Reference: 5
Get Part
68T4256100
Knob, steering lock
Diagram Reference: 6
Get Part
6894363300
Cover, tilt lever
Diagram Reference: 7
Get Part
65W4252800
Plate, friction
Diagram Reference: 8
Get Part
9038705M05
Collar
Diagram Reference: 9
Get Part
9038705M11
Collar
Diagram Reference: 10
Get Part
9709505020
Bolt, hexagon
Diagram Reference: 11
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 12
Get Part
9020910M26
Washer
Diagram Reference: 13
Get Part
9018510M14
Nut, self-locking
Diagram Reference: 14
Get Part
6AH4252700
Plate, friction
Diagram Reference: 15
Get Part
9010108022
Bolt, hexagon deep recess
Diagram Reference: 16
Get Part
9020108065
Washer, plate
Diagram Reference: 17
Get Part
68T4315500 (FOR 6AH-42508-00)
Mark 1
Diagram Reference: 18
Get Part
