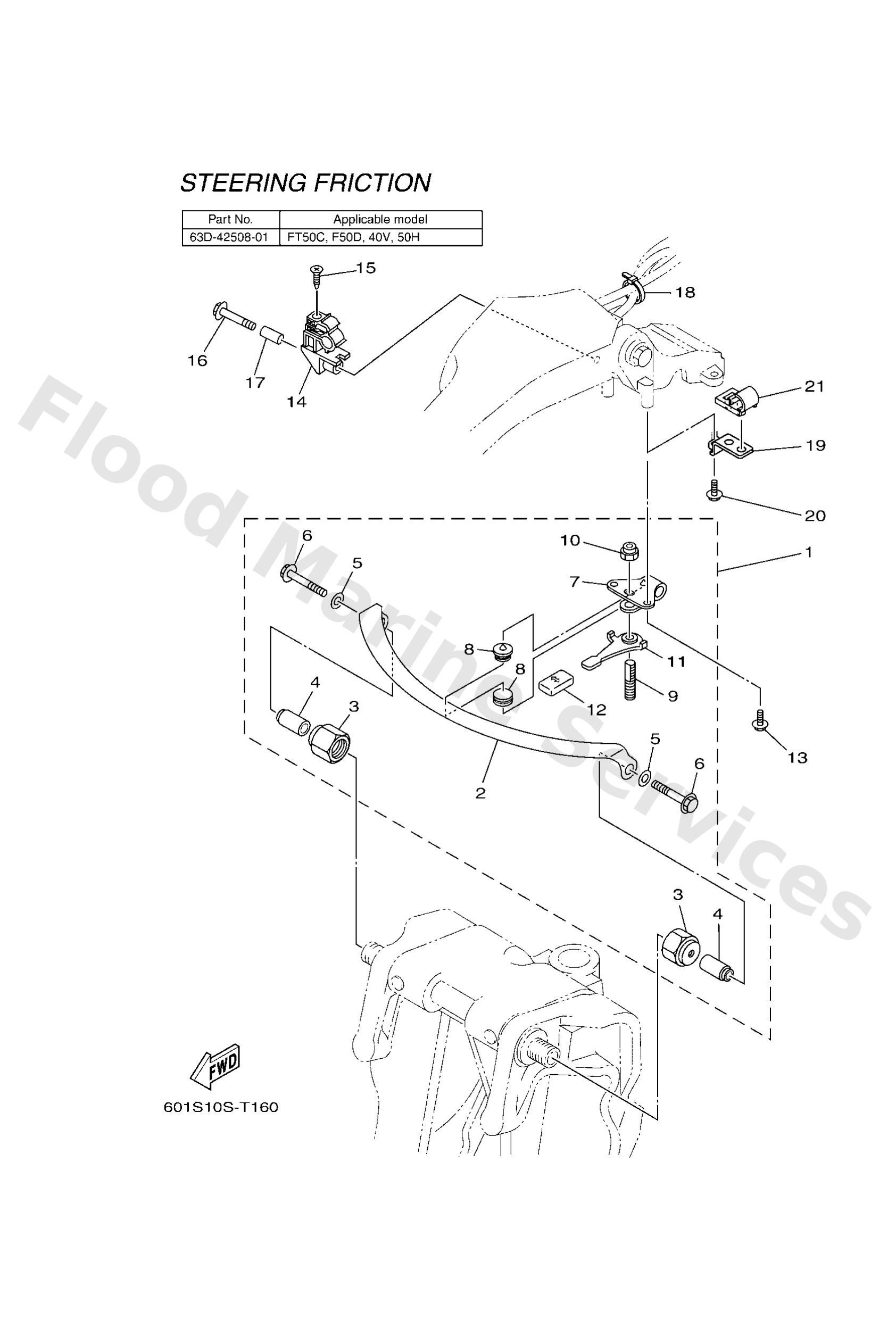

Parts List
Steering friction assembly
Diagram Reference: 1
Plate, friction
Diagram Reference: 2
Pipe 1
Diagram Reference: 4
Washer, plate(6l2)
Diagram Reference: 5
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Plate, friction
Diagram Reference: 7
Plate, friction
Diagram Reference: 8
Steering bracket assembly
Diagram Reference: 9
Nut, self-locking(62x)
Diagram Reference: 10
Knob, steering lock
Diagram Reference: 11
Cover
Diagram Reference: 12
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Clamp, cord
Diagram Reference: 14
Screw, tapping(6e7)
Diagram Reference: 15
Bolt, hexagon w/w deep recess
Diagram Reference: 16
Collar(61n)
Diagram Reference: 17
Clamp(6h4)
Diagram Reference: 18
Stay
Diagram Reference: 19
Clamp, fuel pipe 2
Diagram Reference: 21
