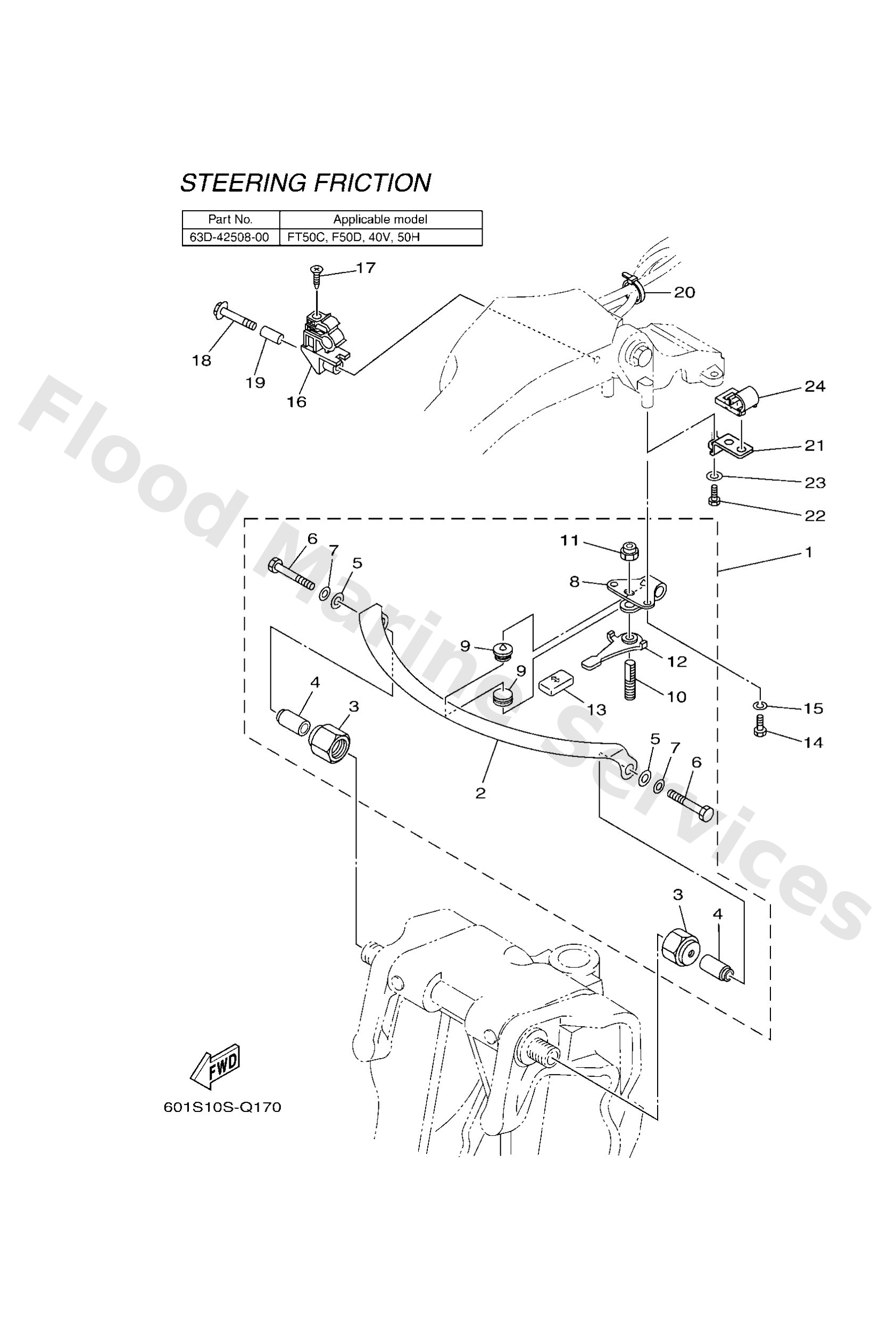

Parts List
Steering friction assembly
Diagram Reference: 1
Plate, friction
Diagram Reference: 2
Pipe 1
Diagram Reference: 4
Washer, plate(6l2)
Diagram Reference: 5
Bolt (62k)
Diagram Reference: 6
Washer, plain (663)
Diagram Reference: 7
Plate, friction
Diagram Reference: 8
Plate, friction
Diagram Reference: 9
Steering bracket assembly
Diagram Reference: 10
Nut, self-locking(62x)
Diagram Reference: 11
Knob, steering lock
Diagram Reference: 12
Cover
Diagram Reference: 13
Bolt, hexagon deep recess
Diagram Reference: 14
Washer(6a1)
Diagram Reference: 15
Clamp, cord
Diagram Reference: 16
Screw, tapping(6e7)
Diagram Reference: 17
Bolt(j52)
Diagram Reference: 18
Collar(61n)
Diagram Reference: 19
Clamp(6h4)
Diagram Reference: 20
Stay
Diagram Reference: 21
Washer, plain (646)
Diagram Reference: 23
Clamp, fuel pipe 2
Diagram Reference: 24
