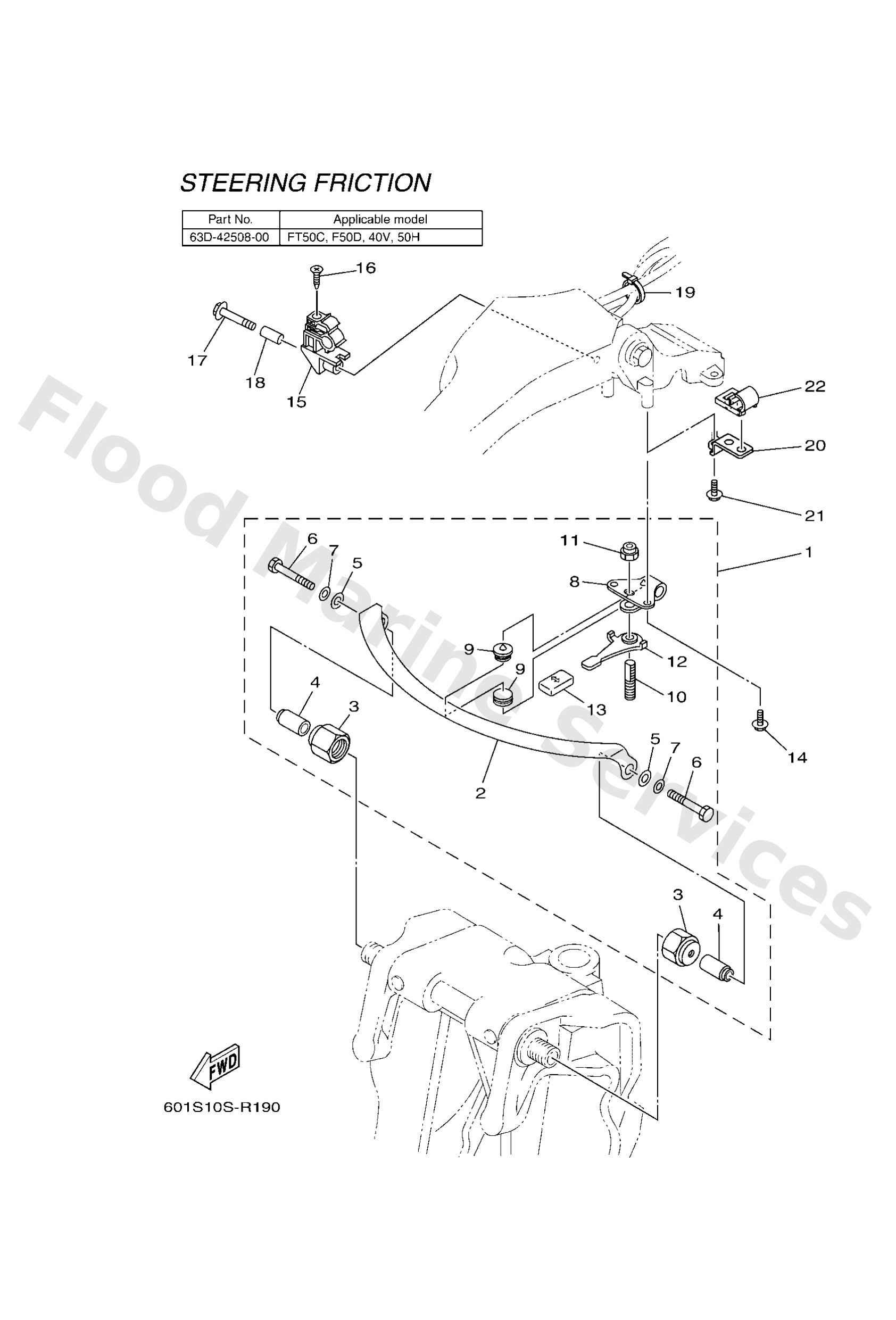

Diagram: STEERING FRICTION 7

Diagram

Parts List

63D4250800
Steering friction assembly
Diagram Reference: 1
Get Part
63D4252700
Plate, friction
Diagram Reference: 2
Get Part
63D4254600
Nut
Diagram Reference: 3
Get Part
63D4254100
Pipe 1
Diagram Reference: 4
Get Part
9020108M01
Washer, plate(6l2)
Diagram Reference: 5
Get Part
9709508050
Bolt (62k)
Diagram Reference: 6
Get Part
9299008600
Washer, plain (663)
Diagram Reference: 7
Get Part
63D4252600
Plate, friction
Diagram Reference: 8
Get Part
63D4252800
Plate, friction
Diagram Reference: 9
Get Part
63D4256200
Steering bracket assembly
Diagram Reference: 10
Get Part
9018510M01
Nut, self-locking(62x)
Diagram Reference: 11
Get Part
63D4256100
Knob, steering lock
Diagram Reference: 12
Get Part
6824331801
Cover
Diagram Reference: 13
Get Part
9759506516
Bolt, with washer(6r6)
Diagram Reference: 14
Get Part
63D8236100
Clamp, cord
Diagram Reference: 15
Get Part
9016106M00
Screw, tapping(6e7)
Diagram Reference: 16
Get Part
9759506535
Bolt(j52)
Diagram Reference: 17
Get Part
9038706M26
Collar(61n)
Diagram Reference: 18
Get Part
9046513M36
Clamp(6h4)
Diagram Reference: 19
Get Part
63D2436410
Stay
Diagram Reference: 20
Get Part
63D2436700
Clamp, fuel pipe 2
Diagram Reference: 22
