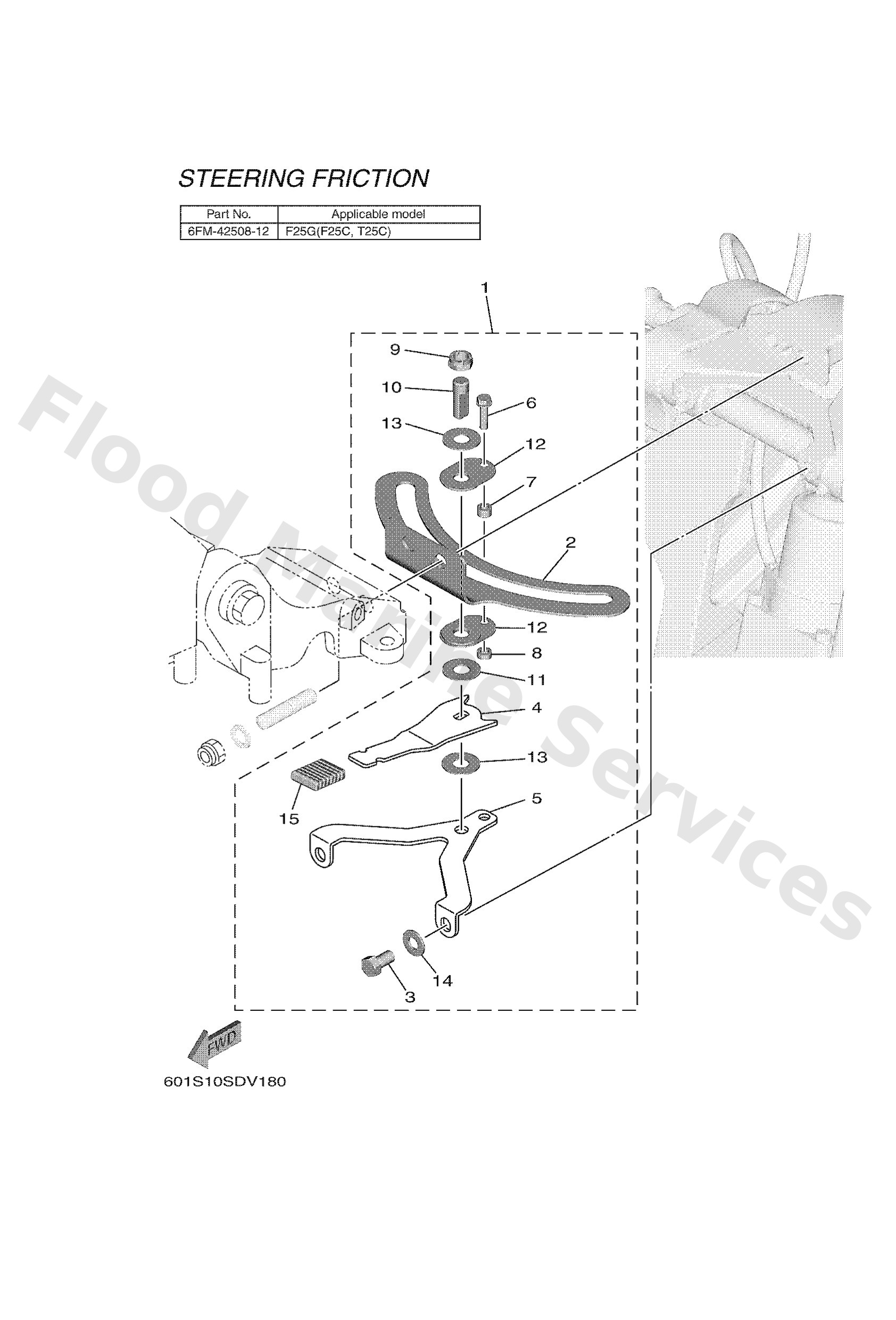

Diagram: STEERING FRICTION 8

Diagram

Parts List

6FM4250812
Steering friction assembly
Diagram Reference: 1
Get Part
6FM4252700
Plate, friction
Diagram Reference: 2
Get Part
97D9508014
Bolt, hexagon deep recess
Diagram Reference: 3
Get Part
6FM4256110
Knob, steering lock
Diagram Reference: 4
Get Part
6FM4252510
Plate, friction
Diagram Reference: 5
Get Part
9759505520
Bolt, With Washer
Diagram Reference: 6
Get Part
9038705054
Collar
Diagram Reference: 7
Get Part
9038705053
Collar
Diagram Reference: 8
Get Part
9018510M14
Nut, self-locking
Diagram Reference: 9
Get Part
67C42562A0
Shaft, steering lock
Diagram Reference: 10
Get Part
9020210M56
Washer, plate
Diagram Reference: 11
Get Part
65W4252800
Plate, friction
Diagram Reference: 12
Get Part
90201106M5
Washer, plate(3gm)
Diagram Reference: 13
Get Part
9299508200
Ybs66-8 washer, plain
Diagram Reference: 14
Get Part
6894363301
Cover, tilt lever
Diagram Reference: 15
Get Part
