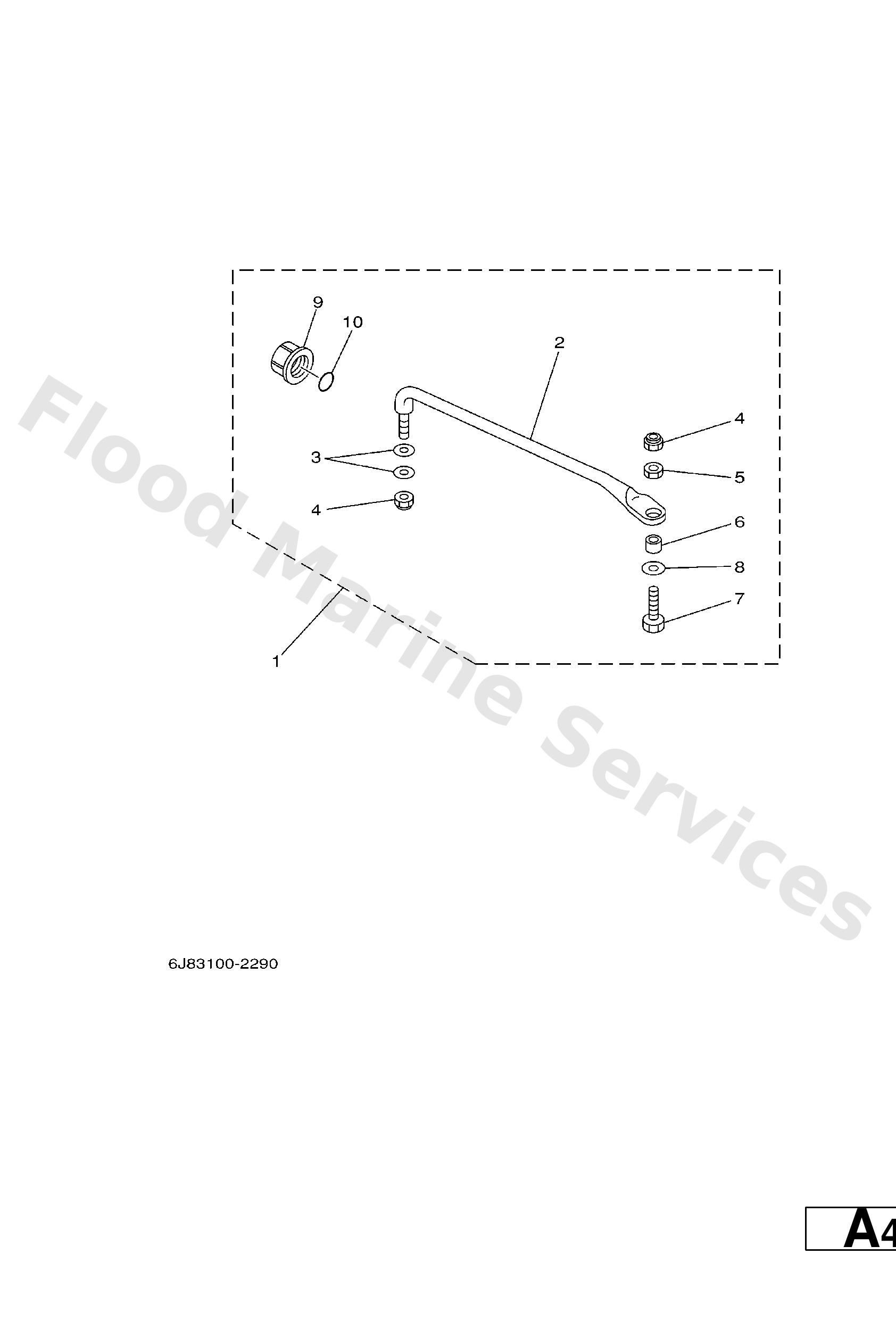

Diagram: STEERING GUIDE

Diagram

Parts List

689−61350−02 (AP)
Steering guide attachment kit
Diagram Reference: 1
Get Part
689−61351−01
Rod, steering
Diagram Reference: 2
Get Part
90201−10M20
Washer, plate (663)
Diagram Reference: 3
Get Part
90185−09M01
Nut, nylon (663)
Diagram Reference: 4
Get Part
90170−09M03
Nut (689)
Diagram Reference: 5
Get Part
90387−10M42
Coller (688)
Diagram Reference: 6
Get Part
6E5−61355−00
Bolt
Diagram Reference: 7
Get Part
90201−10M63
Washer, plate
Diagram Reference: 8
Get Part
6E5−43145−01
Cap, clamp bracket
Diagram Reference: 9
Get Part
93210−16275
O-ring
Diagram Reference: 10
Get Part
