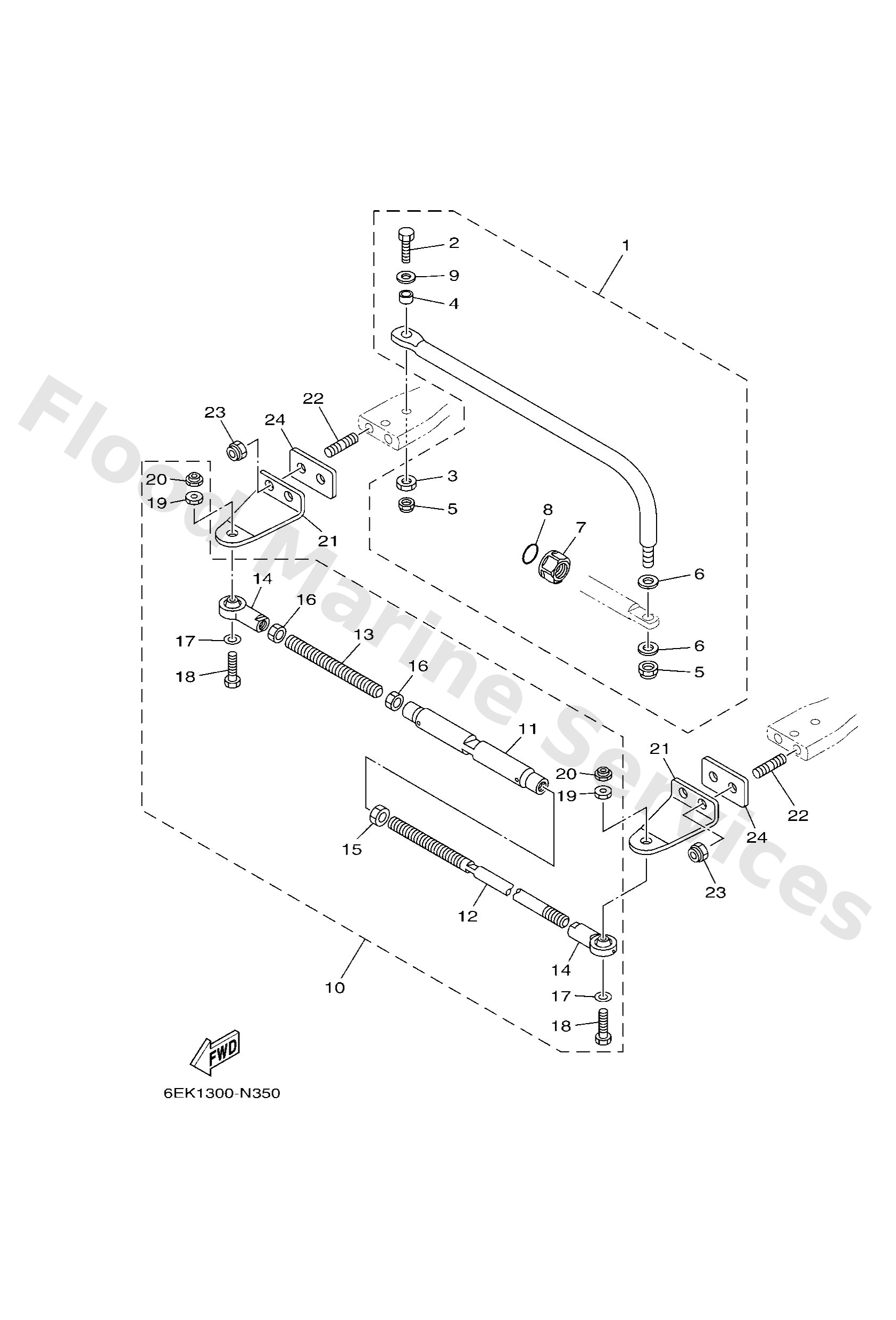

Diagram: STEERING GUIDE

Diagram

Parts List

6EK6135000 (AP)
Steering guide attachment kit
Diagram Reference: 1
Get Part
6E56135500
Bolt
Diagram Reference: 2
Get Part
9017009M03
Nut (689)
Diagram Reference: 3
Get Part
9038710M42
Coller (688)
Diagram Reference: 4
Get Part
9018509M01
Nut, nylon (663)
Diagram Reference: 5
Get Part
9020110M20
Washer, plate (663)
Diagram Reference: 6
Get Part
6E54314501
Cap, clamp bracket
Diagram Reference: 7
Get Part
9321016275
O-ring
Diagram Reference: 8
Get Part
9020110M63
Washer, plate
Diagram Reference: 9
Get Part
6E56130101 (AP)
Tie bar assembly (l:600-800mm)
Diagram Reference: 10
Get Part
6E56131300
Adjuster
Diagram Reference: 11
Get Part
6E56131111
Tie bar
Diagram Reference: 12
Get Part
6E56131500
Tie bar, 2
Diagram Reference: 13
Get Part
6E56130300
Steering axle comp.
Diagram Reference: 14
Get Part
9017014M06
Nut (6e5)
Diagram Reference: 15
Get Part
9538014700
Nut (6e5)
Diagram Reference: 16
Get Part
9020110M76
Washer, plate (6e5)
Diagram Reference: 17
Get Part
9010109M70
Bolt (6e5)
Diagram Reference: 18
Get Part
9017009M05
Nut, hexagon (6e5)
Diagram Reference: 19
Get Part
6884851102 (AP)
Hook, steering
Diagram Reference: 21
Get Part
9011610063 (AP)
Bolt, stud
Diagram Reference: 22
Get Part
9018510027 (AP)
Nut, self-locking
Diagram Reference: 23
Get Part
6EK4212100 (AP)
Bracket
Diagram Reference: 24
Get Part
