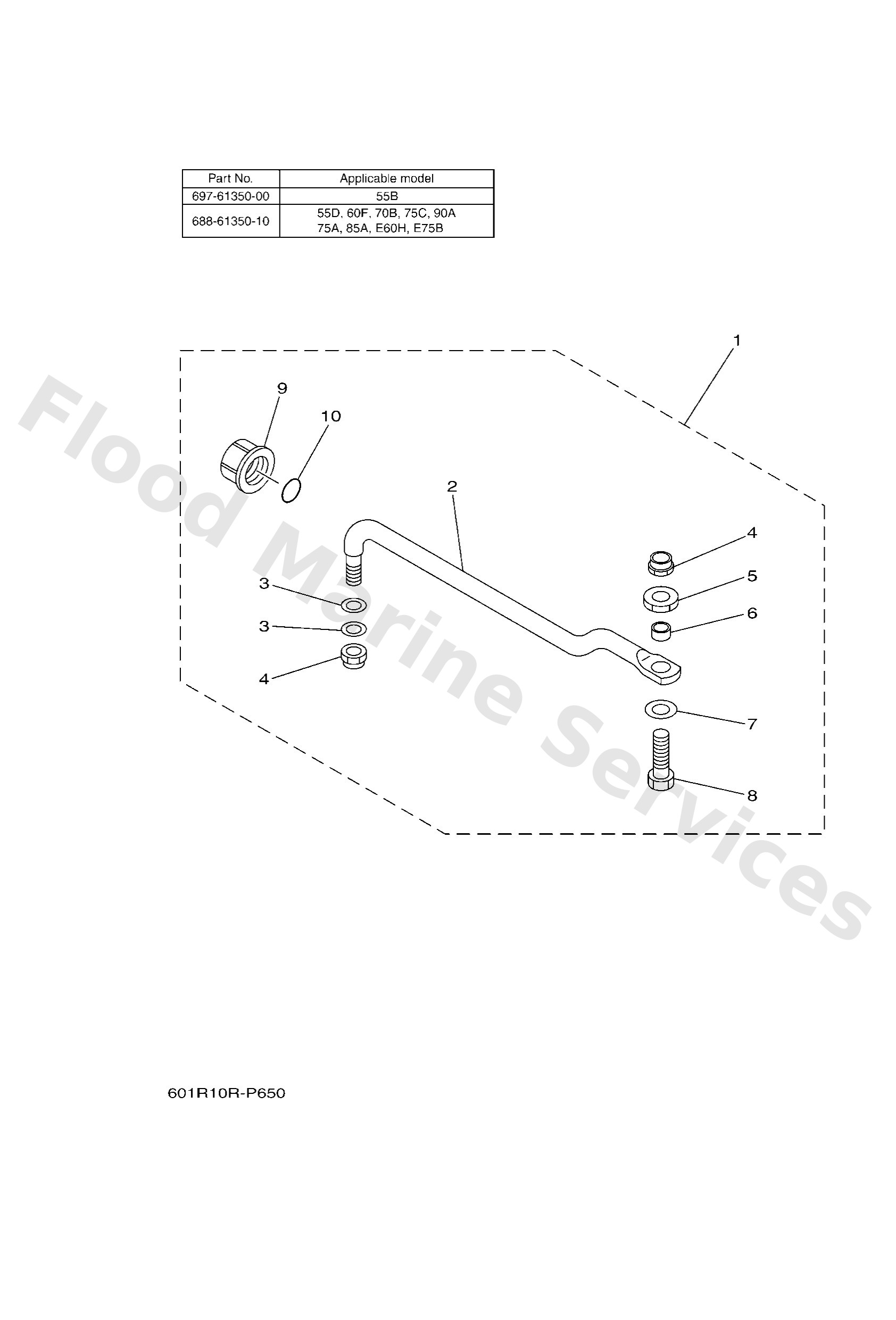

Diagram: STEERING GUIDE 7

Diagram

Parts List

6886135010 (UR)
Steering guide attachment kit
Diagram Reference: 1
Get Part
6976135000 (UR)
Steering guide attachment kit
Diagram Reference: 1
Get Part
6976135100 (FOR 697-61350-00)
Rod, steering link
Diagram Reference: 2
Get Part
6886135110 (FOR 688-61350-10)
Rod, steering link
Diagram Reference: 2
Get Part
9020110M20
Washer, plate (663)
Diagram Reference: 3
Get Part
9018509M01
Nut, nylon (663)
Diagram Reference: 4
Get Part
9017009M03
Nut (689)
Diagram Reference: 5
Get Part
9038710M42
Coller (688)
Diagram Reference: 6
Get Part
9020110M63
Washer, plate
Diagram Reference: 7
Get Part
6E56135500
Bolt
Diagram Reference: 8
Get Part
6E54314501
Cap, clamp bracket
Diagram Reference: 9
Get Part
9321016275
O-ring
Diagram Reference: 10
Get Part
