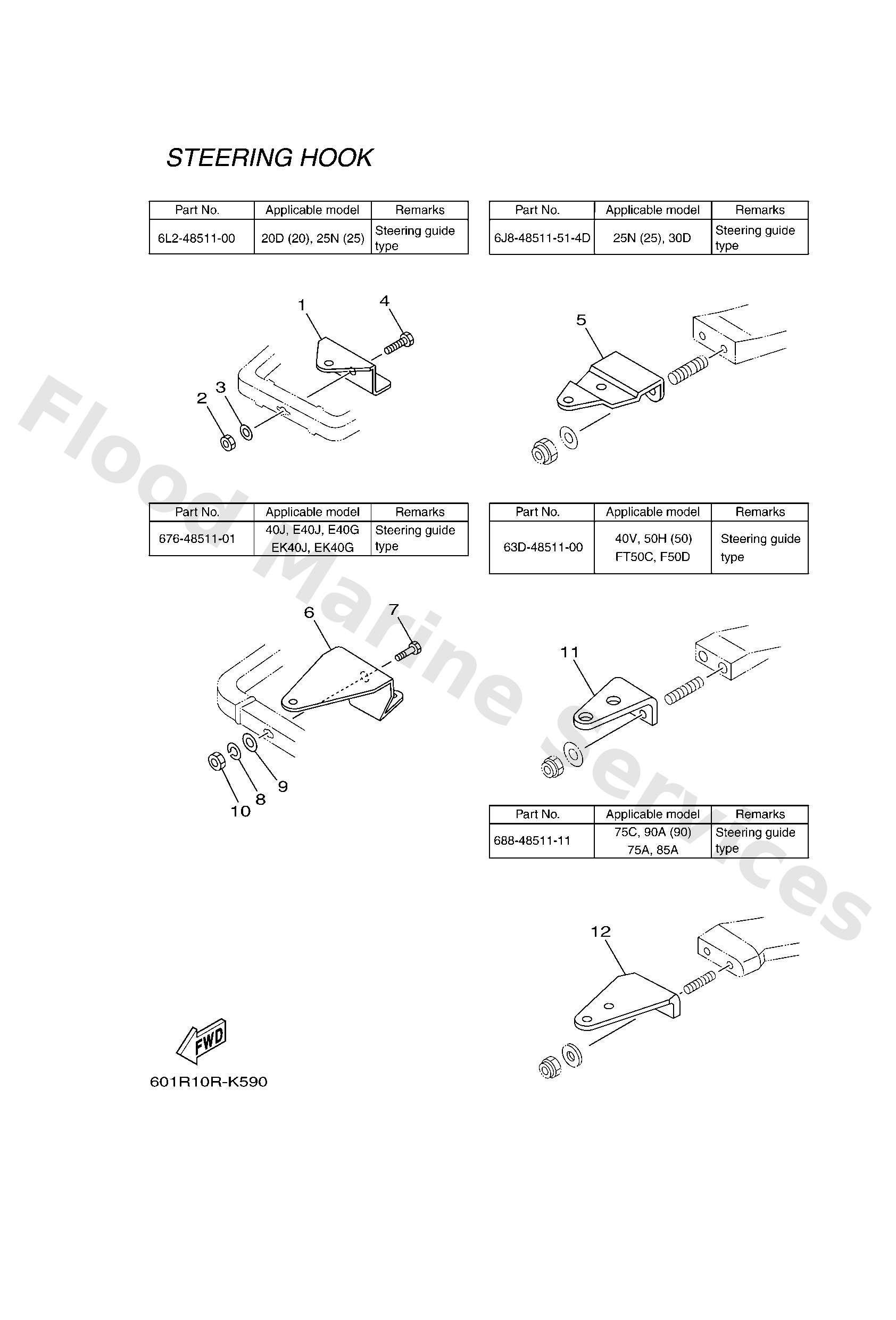

Diagram: STEERING HOOK 1

Diagram

Parts List

6L24851100 (STEERING GUIDE)
Hook, steering
Diagram Reference: 1
Get Part
9018510051
Nut, self-locking
Diagram Reference: 2
Get Part
9299010600
Washer, plate
Diagram Reference: 3
Get Part
9707510040
Bolt, hexagon deep recess
Diagram Reference: 4
Get Part
6J848511514D (STEERING GUIDE)
Hook, steering
Diagram Reference: 5
Get Part
6764851101 (STEERING GUIDE)
Hook, steering
Diagram Reference: 6
Get Part
9299010100
Ybs67-10 washer, spring
Diagram Reference: 8
Get Part
9538010600
Nut(624)
Diagram Reference: 10
Get Part
63D4851100 (STEERING GUIDE)
Hook, steering
Diagram Reference: 11
Get Part
6884851111 (STEERING GUIDE)
Hook, steering
Diagram Reference: 12
Get Part
