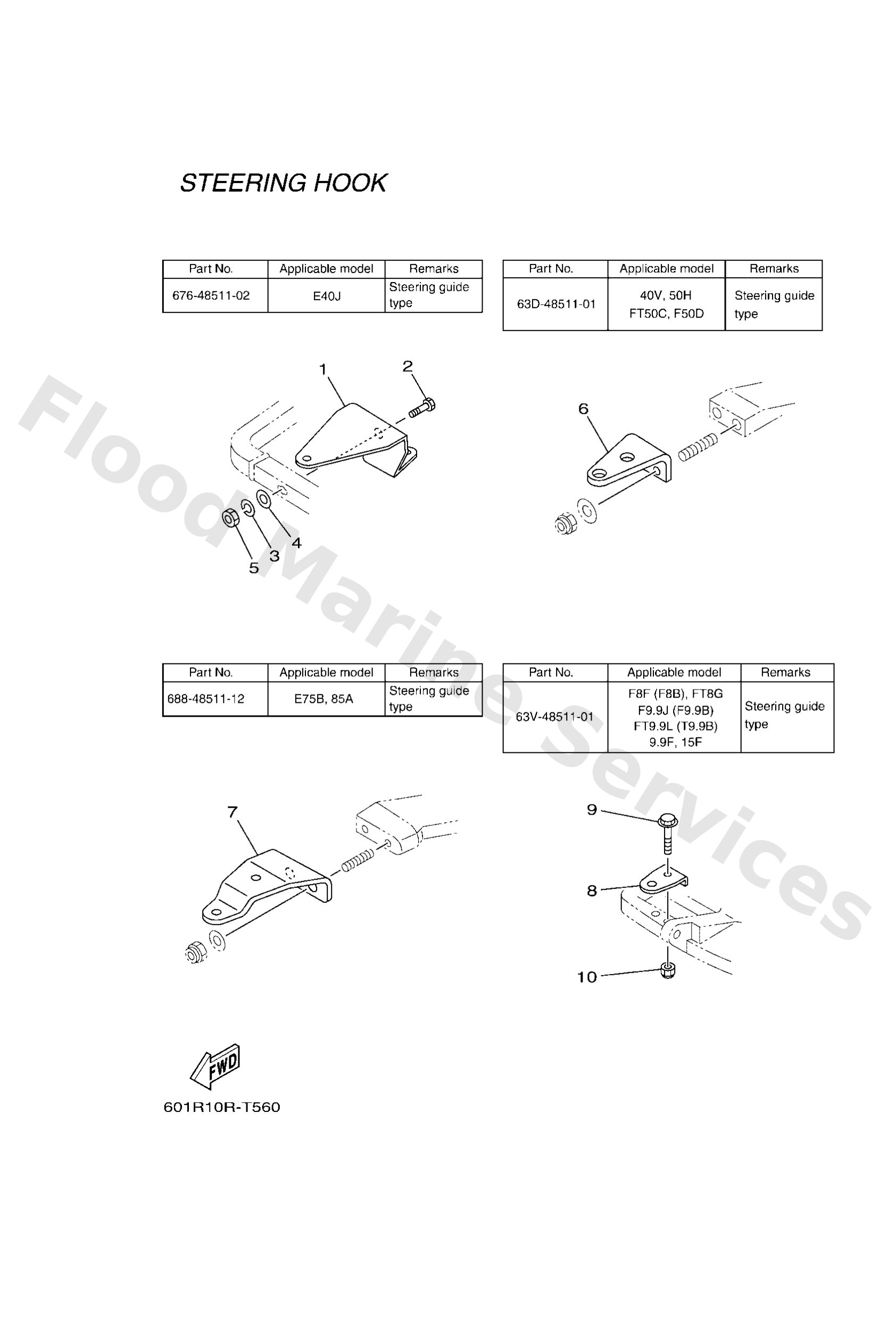

Diagram: STEERING HOOK 1

Diagram

Parts List

6764851102 (STEERING GUIDE)
Hook, steering
Diagram Reference: 1
Get Part
97D7510040
Bolt, hexagon deep recess
Diagram Reference: 2
Get Part
9299010100
Ybs67-10 washer, spring
Diagram Reference: 3
Get Part
9299010600
Washer, plate
Diagram Reference: 4
Get Part
9538010600
Nut(624)
Diagram Reference: 5
Get Part
63D4851101 (STEERING GUIDE)
Hook, steering
Diagram Reference: 6
Get Part
6884851112 (STEERING GUIDE)
Hook, steering
Diagram Reference: 7
Get Part
63V4851101 (STEERING GUIDE)
Hook, steering
Diagram Reference: 8
Get Part
97E7508535
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Get Part
9018508057
Nut, nylon (6j8)
Diagram Reference: 10
Get Part
