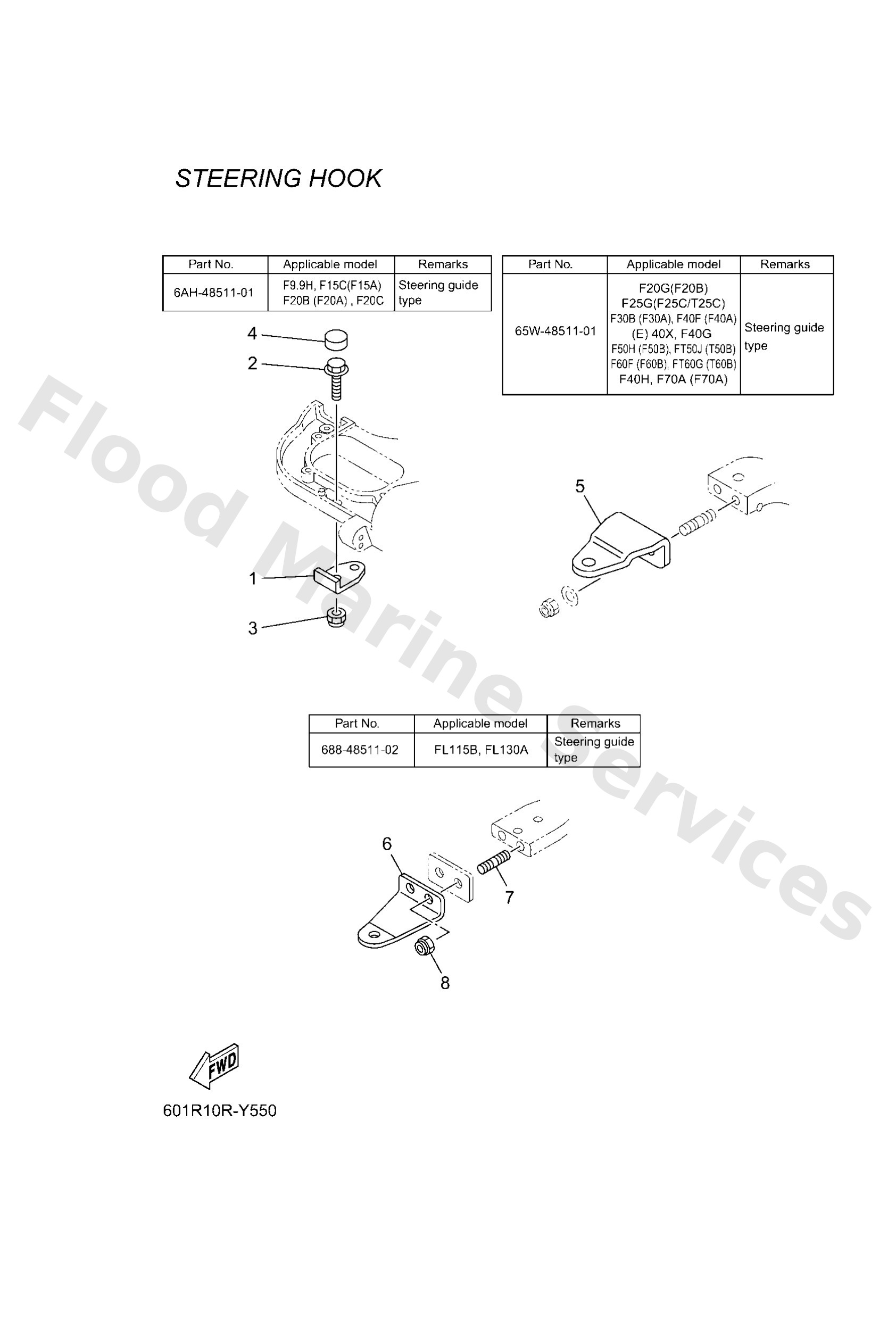

Diagram: STEERING HOOK 2

Diagram

Parts List

6AH4851101 (STEERING GUIDE)
Hook, steering
Diagram Reference: 1
Get Part
97E9508525
Bolt, hexagon w/w deep recess
Diagram Reference: 2
Get Part
9018508057
Nut, nylon (6j8)
Diagram Reference: 3
Get Part
6AH4419400
Cap
Diagram Reference: 4
Get Part
65W4851101 (STEERING GUIDE)
Hook, steering
Diagram Reference: 5
Get Part
6884851102 (STEERING GUIDE)
Hook, steering
Diagram Reference: 6
Get Part
9011610063
Bolt, stud
Diagram Reference: 7
Get Part
9018510027
Nut, self-locking
Diagram Reference: 8
Get Part
