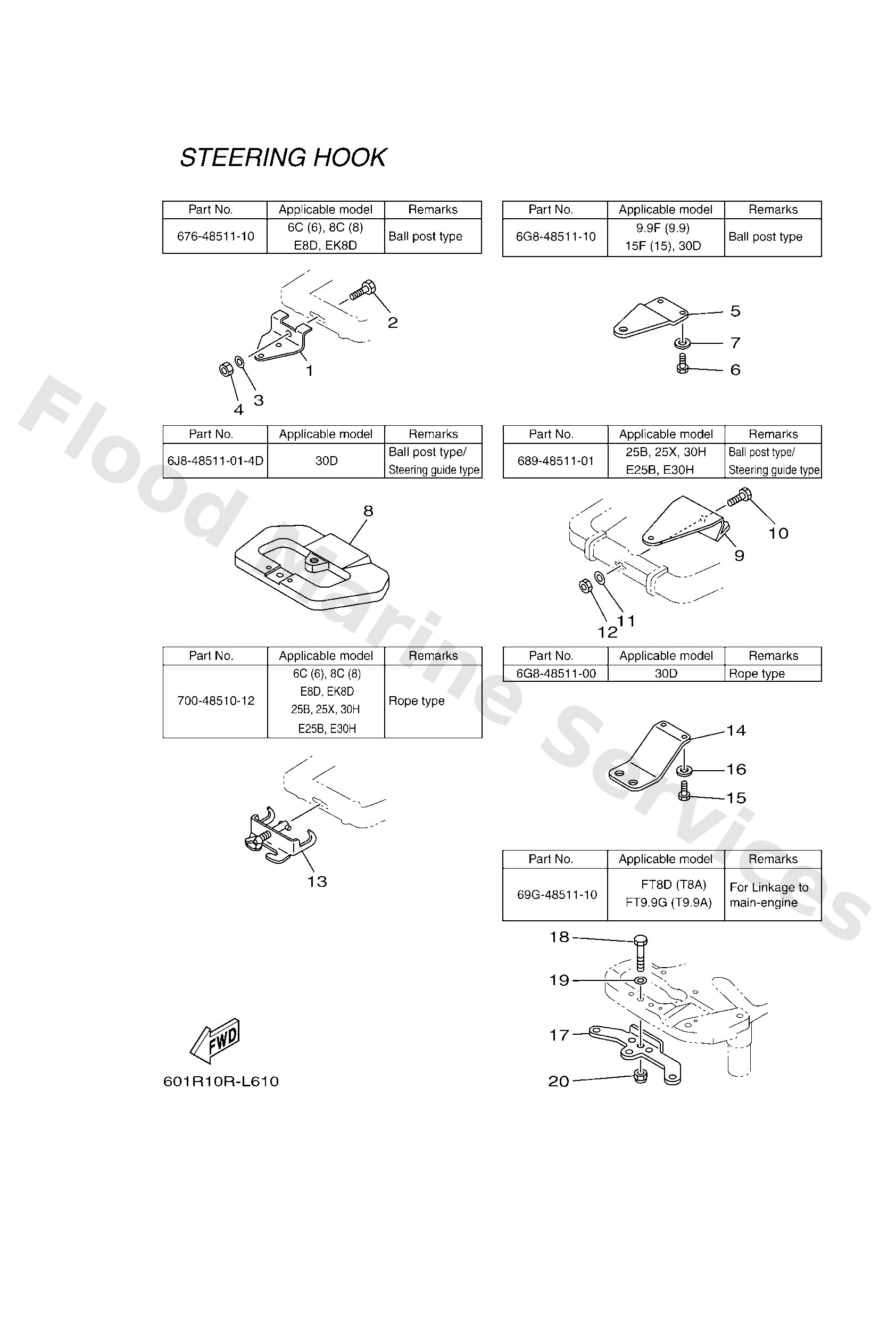

Diagram: STEERING HOOK 3

Diagram

Parts List

6764851110 (BALL POST TYPE)
Hook, steering
Diagram Reference: 1
Get Part
9707510040
Bolt, hexagon deep recess
Diagram Reference: 2
Get Part
9299010600
Washer, plate
Diagram Reference: 3
Get Part
9018510051
Nut, self-locking
Diagram Reference: 4
Get Part
6G84851110 (BALL POST TYPE)
Hook, steering
Diagram Reference: 5
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
6J848511014D
Hook, steering
Diagram Reference: 8
Get Part
6894851101
Hook, steering
Diagram Reference: 9
Get Part
7004851012 (ROPE TYPE)
Hook steering assembly
Diagram Reference: 13
Get Part
6G84851100 (ROPE TYPE)
Hook, steering
Diagram Reference: 14
Get Part
69G4851110
Hook, steering
Diagram Reference: 17
Get Part
9707508035
Bolt(70w)
Diagram Reference: 18
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 19
Get Part
9018508057
Nut, nylon (6j8)
Diagram Reference: 20
Get Part
