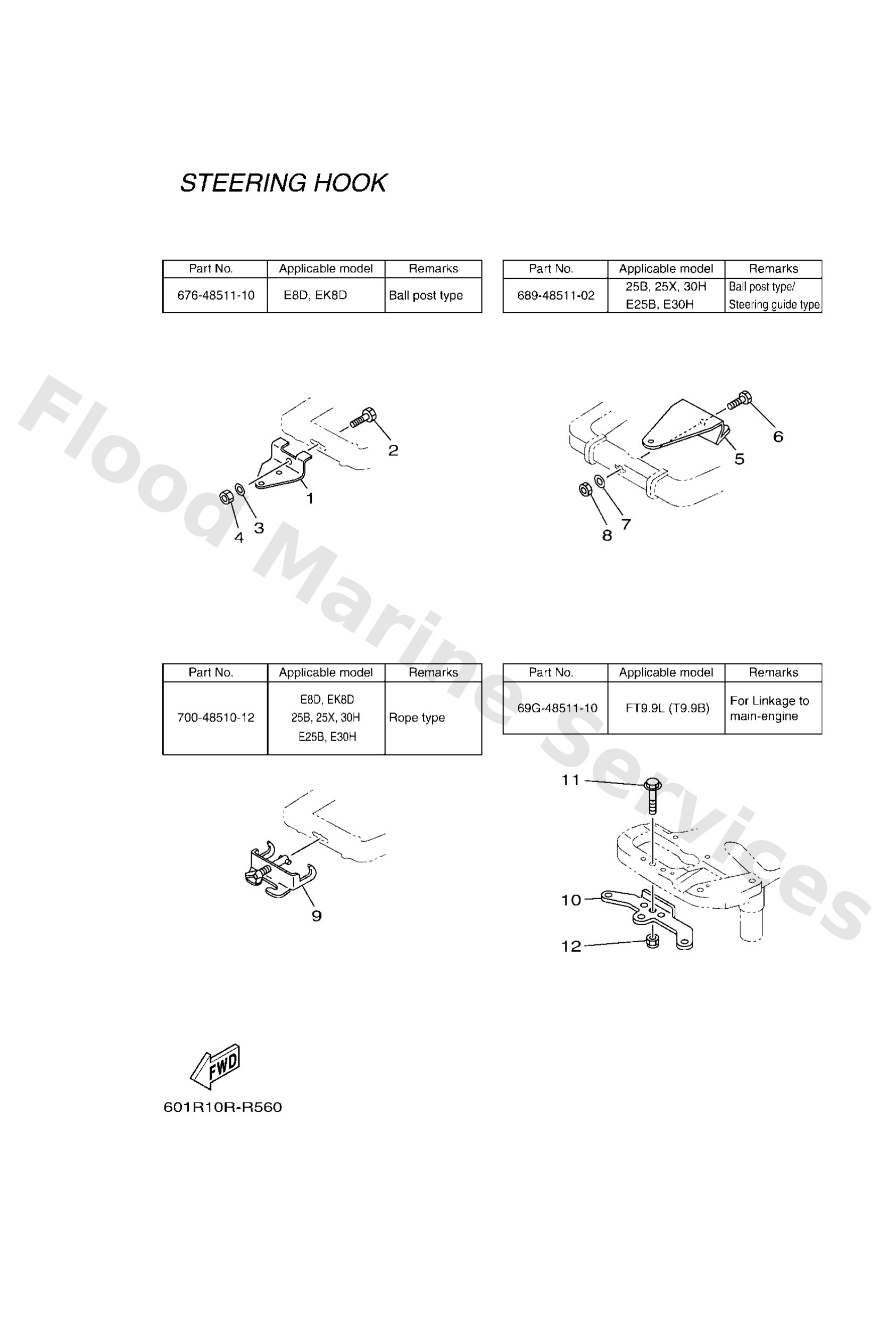

Diagram: STEERING HOOK 3

Diagram

Parts List

6764851110 (BALL POST TYPE)
Hook, steering
Diagram Reference: 1
Get Part
97D7510040
Bolt, hexagon deep recess
Diagram Reference: 2
Get Part
9299010600
Washer, plate
Diagram Reference: 3
Get Part
9018510027
Nut, self-locking
Diagram Reference: 4
Get Part
6894851102
Hook, steering
Diagram Reference: 5
Get Part
7004851012 (ROPE TYPE)
Hook steering assembly
Diagram Reference: 9
Get Part
69G4851110
Hook, steering
Diagram Reference: 10
Get Part
97E7508535
Bolt, hexagon w/w deep recess
Diagram Reference: 11
Get Part
9018508057
Nut, nylon (6j8)
Diagram Reference: 12
Get Part
