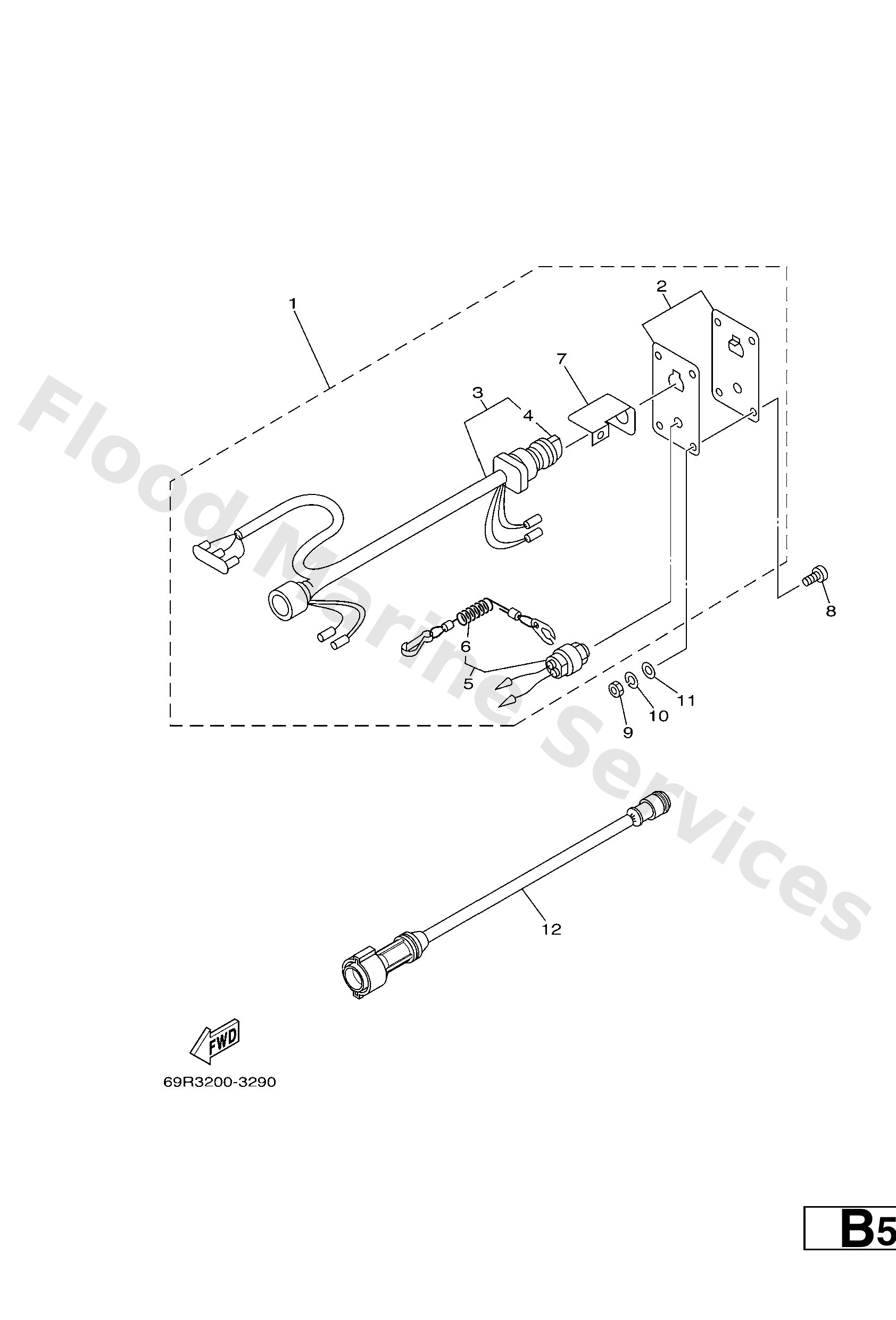

Diagram: SWITCH & PANEL

Diagram

Parts List

689825701B (AP)
Panel switch assembly
Diagram Reference: 1
Get Part
7048257102
Panel, switch
Diagram Reference: 2
Get Part
6898251004
Main switch assembly
Diagram Reference: 3
Get Part
7038257700
Cap, key
Diagram Reference: 4
Get Part
6888257501
Engine stop switch assembly
Diagram Reference: 5
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 6
Get Part
64D8258100
Stay, cord clamp
Diagram Reference: 7
Get Part
9014905M05 (AP)
Screw(6k0)
Diagram Reference: 8
Get Part
9538005600 (AP)
Nut, hexagon (663)
Diagram Reference: 9
Get Part
9299005100 (AP)
Ybs67-5 washer, spring
Diagram Reference: 10
Get Part
9299005600 (AP)
Washer, plain (646)
Diagram Reference: 11
Get Part
6888258650 (AP (7P))
Extension, wire harness
Diagram Reference: 12
Get Part
