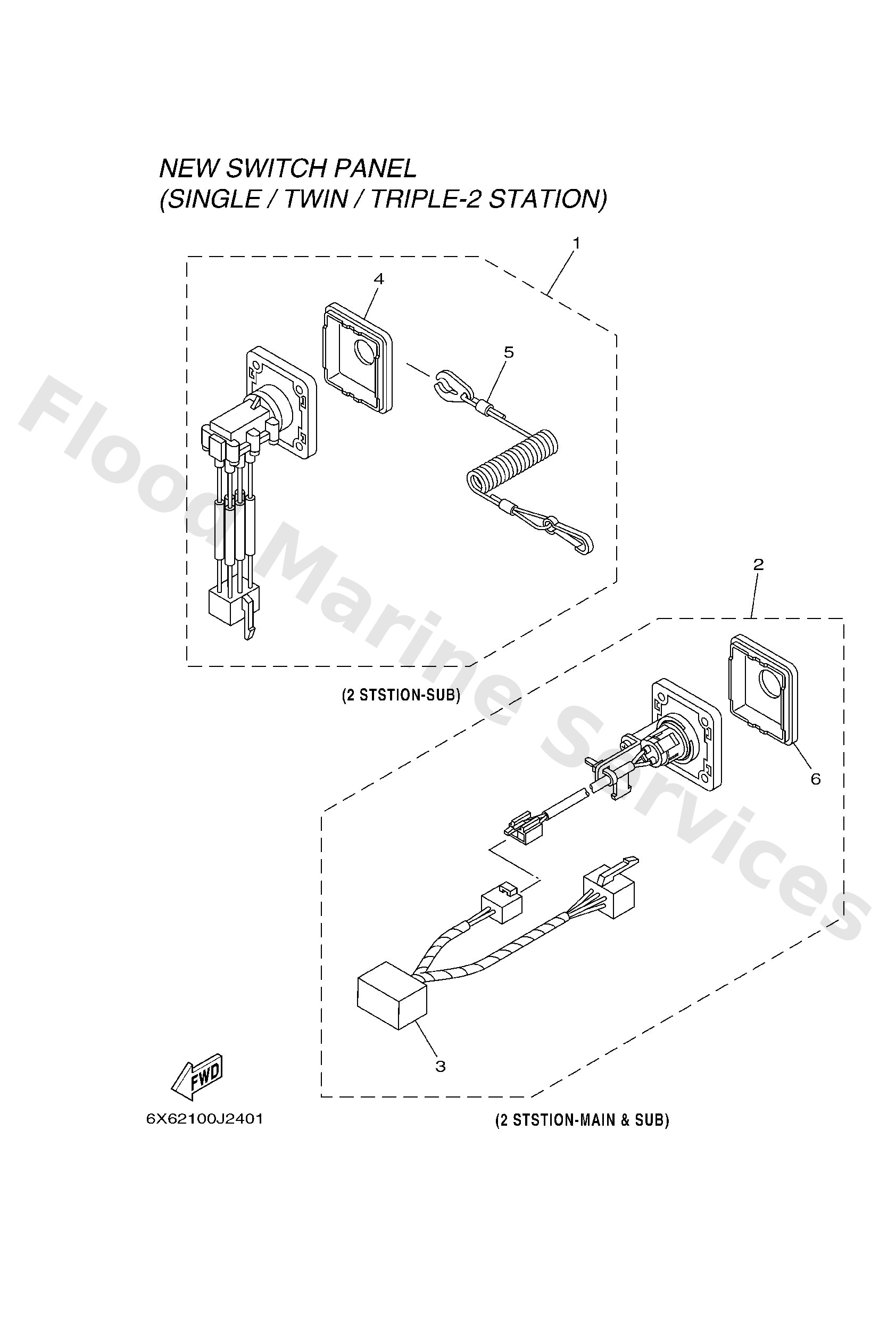

Diagram: SWITCH & PANEL 10

Diagram

Parts List

6X68257090 (STATION SUB)
Lanyard switch -2nd station
Diagram Reference: 1
Get Part
6X682570B0 (STATION MAIN & SUB)
Switch - station dual selector
Diagram Reference: 2
Get Part
6X68198010
Diode assembly
Diagram Reference: 3
Get Part
6X68257150
Panel, switch
Diagram Reference: 4
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 5
Get Part
6X68257170
Panel, switch
Diagram Reference: 6
Get Part
