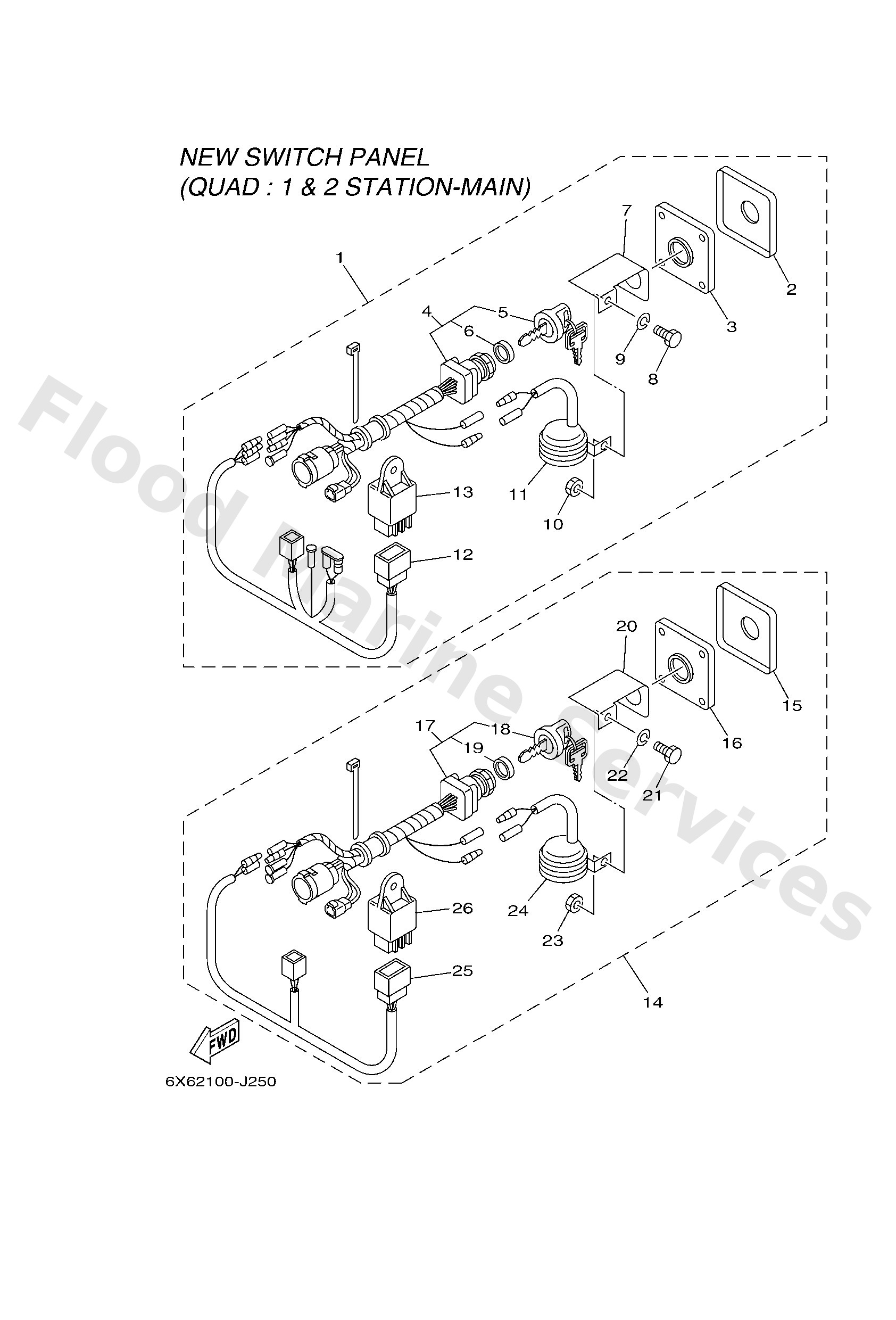

Diagram: SWITCH & PANEL 11 (QUAD)
Parts List
Panel switch assembly
Diagram Reference: 1
Panel, switch
Diagram Reference: 2
Plate
Diagram Reference: 3
Main switch assembly
Diagram Reference: 4
Cap, key
Diagram Reference: 5
Stay, cord clamp
Diagram Reference: 7
Bolt, hexagon
Diagram Reference: 8
Ybs67-5 washer, spring
Diagram Reference: 9
Nut (656)
Diagram Reference: 10
Buzzer
Diagram Reference: 11
Wire, lead
Diagram Reference: 12
Relay assembly
Diagram Reference: 13
Panel switch assembly
Diagram Reference: 14
Wire, lead
Diagram Reference: 25
