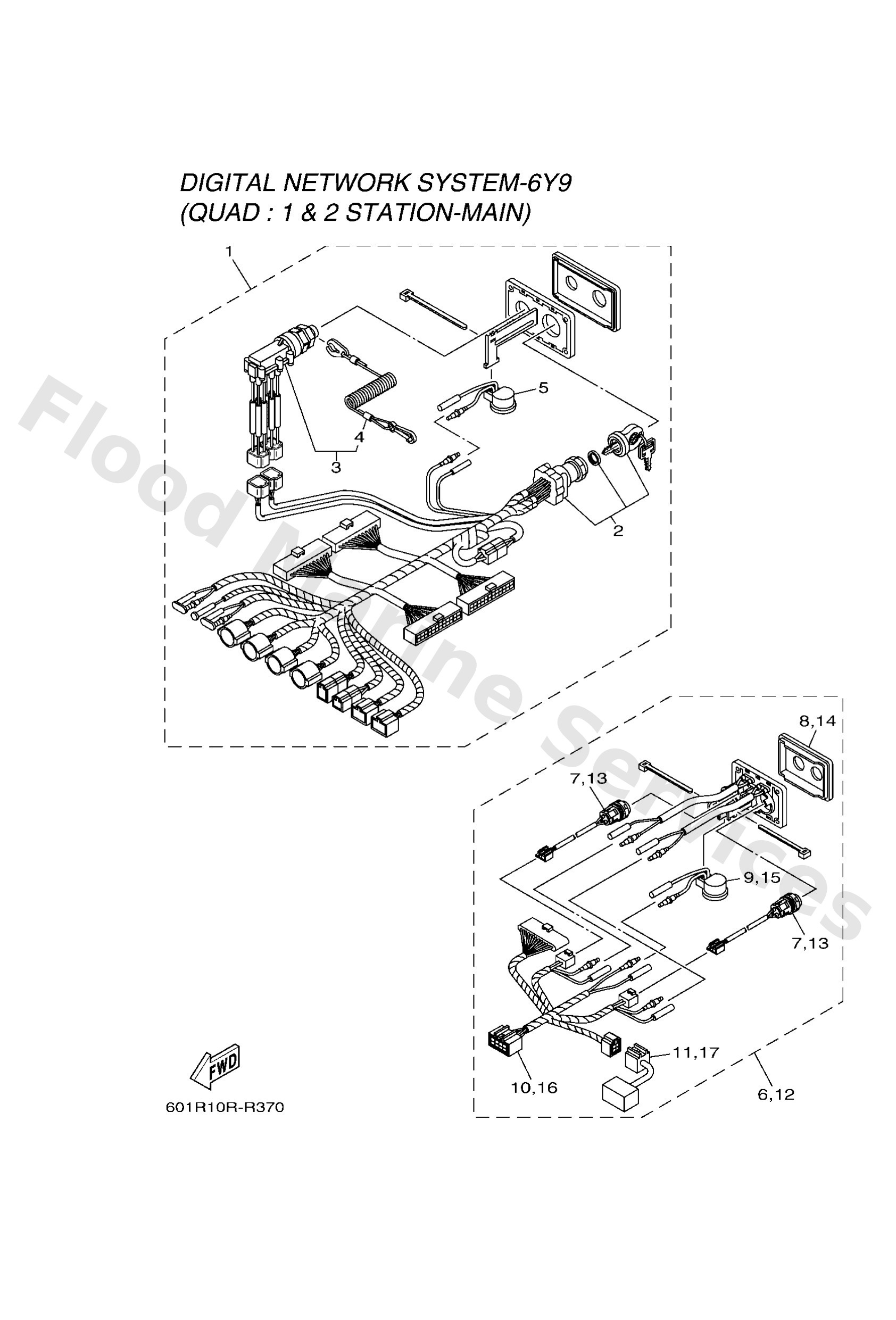

Diagram: SWITCH & PANEL 15

Diagram

Parts List

6X682570G0 (& 2 STATION MAIN)
Panel switch assembly
Diagram Reference: 1
Get Part
6X68251040
Main switch assembly
Diagram Reference: 2
Get Part
6ES8257510
Engine stop switch assembly
Diagram Reference: 3
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 4
Get Part
70383383A0
Buzzer
Diagram Reference: 5
Get Part
6X682570J0 (& 2 STATION MAIN)
Panel switch assembly
Diagram Reference: 6
Get Part
6X68259E20
Switch assembly
Diagram Reference: 7
Get Part
6X68257180
Panel, switch
Diagram Reference: 8
Get Part
6X68271640
Cord switch
Diagram Reference: 10
Get Part
6X68198000
Diode assembly
Diagram Reference: 11
Get Part
6X682570K0 (& 2 STATION MAIN)
Panel switch assembly
Diagram Reference: 12
Get Part
6X68257190
Panel, switch
Diagram Reference: 14
