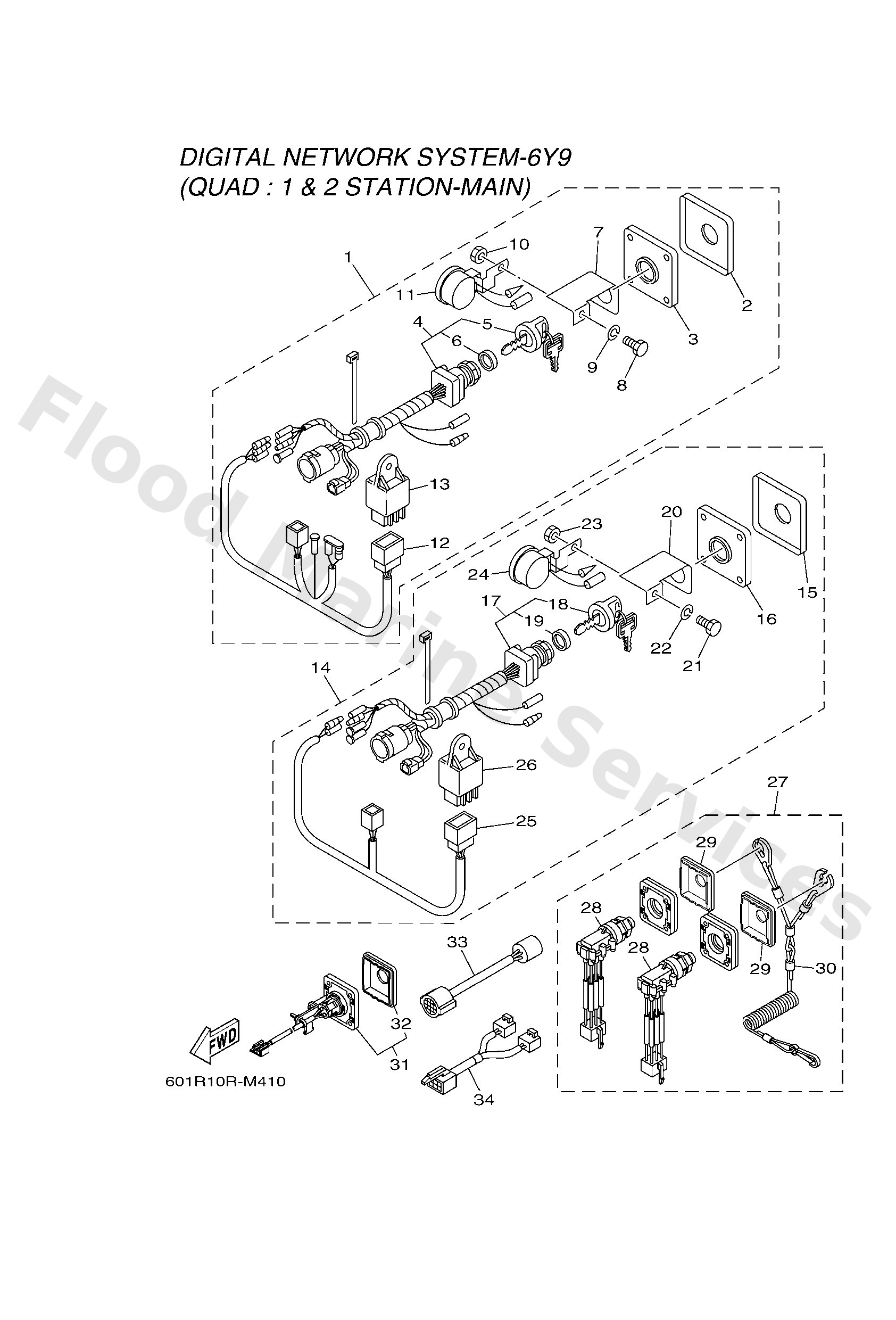

Diagram: SWITCH & PANEL 16

Diagram

Parts List

6X682570T2 (& 2 STATION MAIN)
Panel switch assembly
Diagram Reference: 1
Get Part
64D8257100
Panel, switch
Diagram Reference: 2
Get Part
64D8258800
Plate
Diagram Reference: 3
Get Part
6X68251030
Main switch assembly
Diagram Reference: 4
Get Part
6768257701
Cap, key
Diagram Reference: 5
Get Part
7038253200
Cap
Diagram Reference: 6
Get Part
64D8258100
Stay, cord clamp
Diagram Reference: 7
Get Part
9709505012
Bolt, hexagon
Diagram Reference: 8
Get Part
9290305100
Ybs67-5 washer, spring
Diagram Reference: 9
Get Part
9530305700
Nut (656)
Diagram Reference: 10
Get Part
6888338312
Buzzer
Diagram Reference: 11
Get Part
6X68250720
Wire, lead
Diagram Reference: 12
Get Part
68V8195000
Relay assembly
Diagram Reference: 13
Get Part
6X682570U2 (& 2 STATION MAIN)
Panel switch assembly
Diagram Reference: 14
Get Part
6X68250730
Wire, lead
Diagram Reference: 25
Get Part
6X682570V0 (STATION MAIN & SUB)
Panel switch assembly
Diagram Reference: 27
Get Part
6X68257530
Engine stop switch assembly
Diagram Reference: 28
Get Part
6X68257150
Panel, switch
Diagram Reference: 29
Get Part
6X68255600
Lanyard, stop switch
Diagram Reference: 30
Get Part
6X682570L0 (STATION MAIN & SUB)
Panel switch assembly
Diagram Reference: 31
Get Part
6X68257170
Panel, switch
Diagram Reference: 32
Get Part
6X68258AL0
Extension, wire harness
Diagram Reference: 33
Get Part
6X68258AU0
Extension, wire harness
Diagram Reference: 34
Get Part
