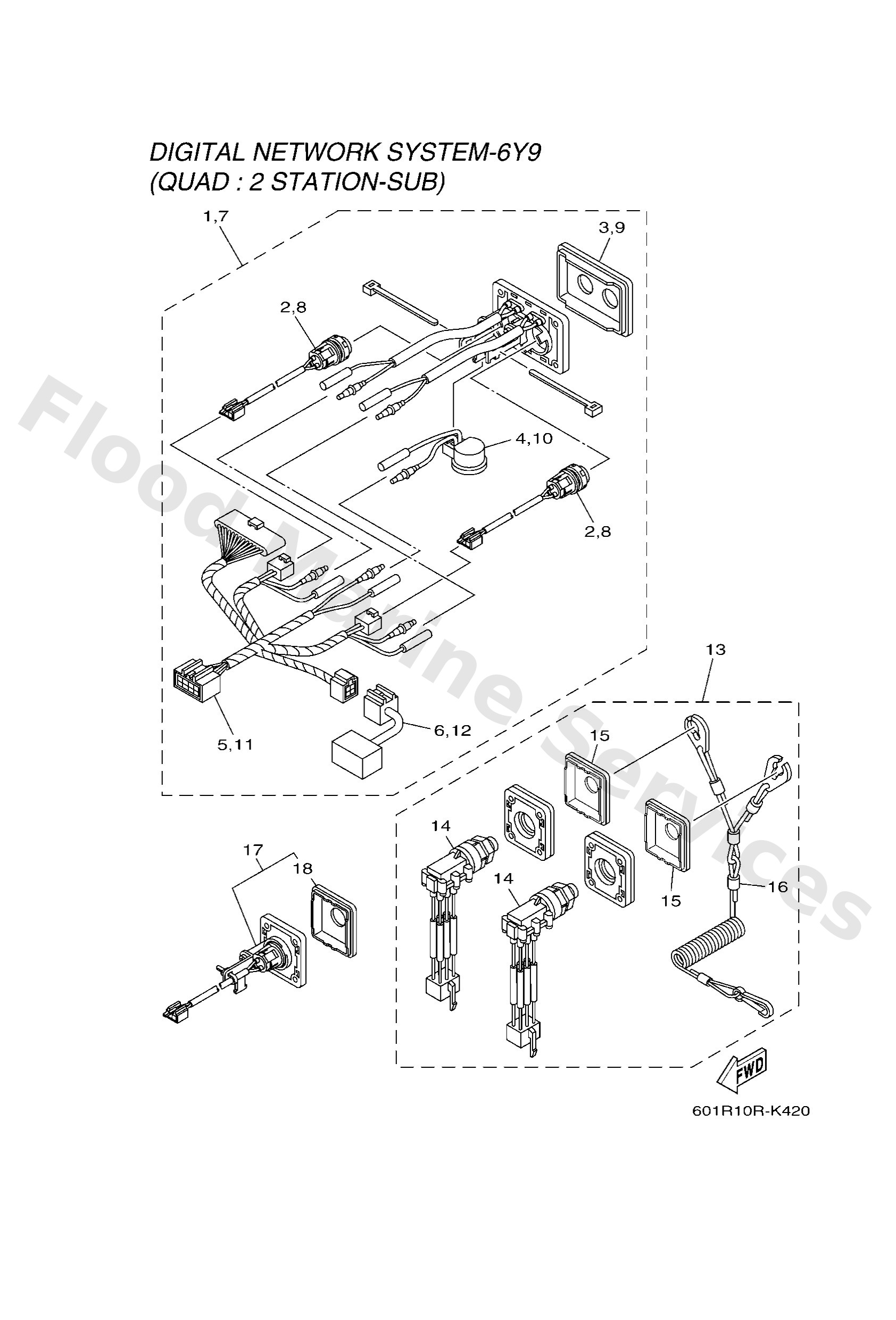

Diagram: SWITCH & PANEL 17

Diagram

Parts List

6X682570J0 (STATION SUB)
Panel switch assembly
Diagram Reference: 1
Get Part
6X68259E20
Switch assembly
Diagram Reference: 2
Get Part
6X68257180
Panel, switch
Diagram Reference: 3
Get Part
70383383A0
Buzzer
Diagram Reference: 4
Get Part
6X68271640
Cord switch
Diagram Reference: 5
Get Part
6X68198000
Diode assembly
Diagram Reference: 6
Get Part
6X682570K0 (STATION SUB)
Panel switch assembly
Diagram Reference: 7
Get Part
6X68257190
Panel, switch
Diagram Reference: 9
Get Part
6X682570V0 (STATION MAIN & SUB)
Panel switch assembly
Diagram Reference: 13
Get Part
6X68257530
Engine stop switch assembly
Diagram Reference: 14
Get Part
6X68257150
Panel, switch
Diagram Reference: 15
Get Part
6X68255600
Lanyard, stop switch
Diagram Reference: 16
Get Part
6X682570L0 (STATION MAIN & SUB)
Panel switch assembly
Diagram Reference: 17
Get Part
6X68257170
Panel, switch
Diagram Reference: 18
Get Part
