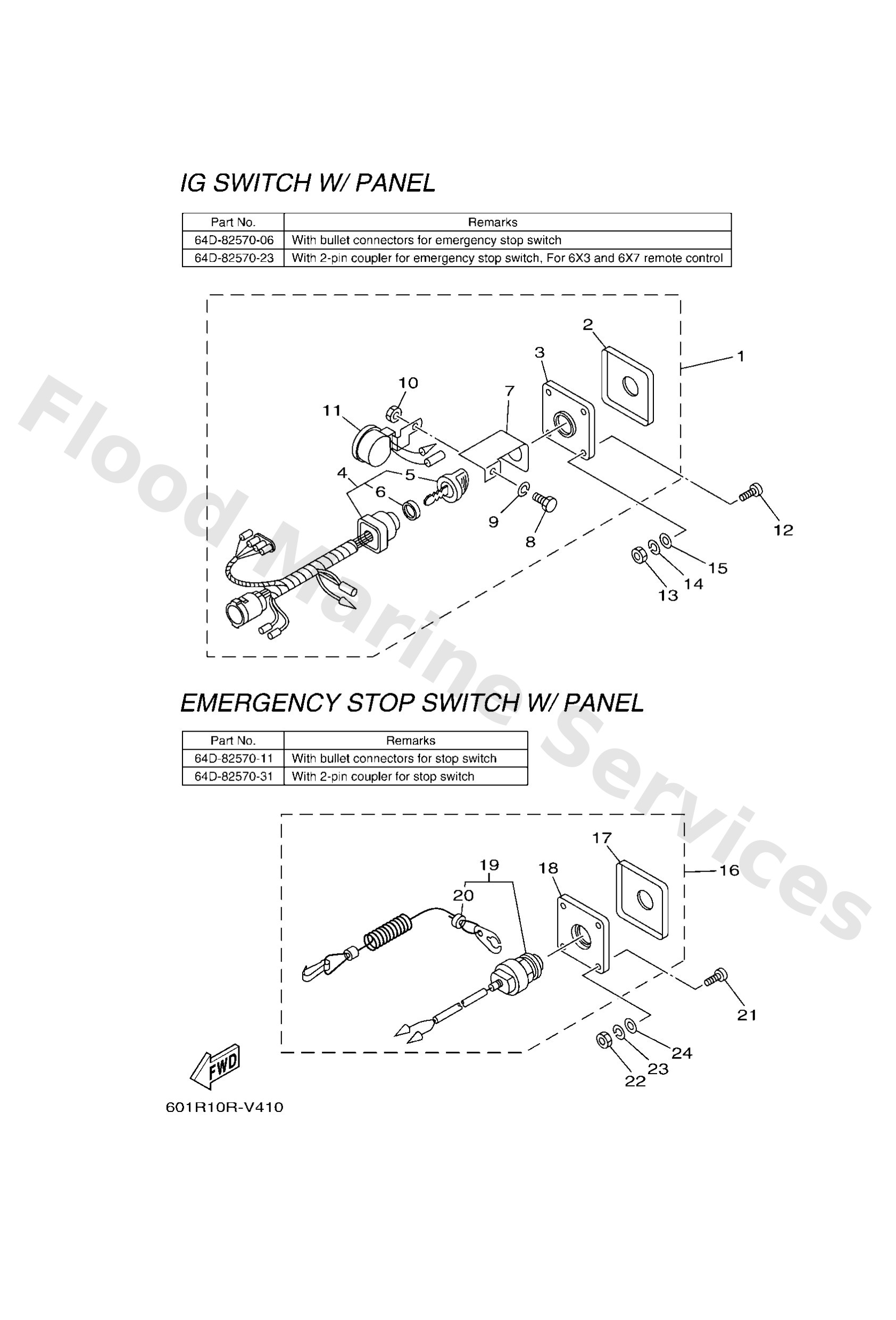

Diagram: SWITCH & PANEL 18

Diagram

Parts List

64D8257023 (UR)
64d power switch main st
Diagram Reference: 1
Get Part
64D8257006 (UR)
Panel switch assembly
Diagram Reference: 1
Get Part
64D8257100
Panel, switch
Diagram Reference: 2
Get Part
64D8258800
Plate
Diagram Reference: 3
Get Part
64D8251005 (FOR 64D-82570-06)
Main Switch assembly
Diagram Reference: 4
Get Part
64D8251021 (FOR 64D-82570-23)
Main switch assembly
Diagram Reference: 4
Get Part
7038257700
Cap, key
Diagram Reference: 5
Get Part
6K18253200
Cap
Diagram Reference: 6
Get Part
64D8258100
Stay, cord clamp
Diagram Reference: 7
Get Part
9730305012
Bolt, hexagon
Diagram Reference: 8
Get Part
9290305100
Ybs67-5 washer, spring
Diagram Reference: 9
Get Part
9530305700
Nut (656)
Diagram Reference: 10
Get Part
6888338312
Buzzer
Diagram Reference: 11
Get Part
9014905M05
Screw(6k0)
Diagram Reference: 12
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 13
Get Part
9299005100
Ybs67-5 washer, spring
Diagram Reference: 14
Get Part
9299005600
Washer, plain (646)
Diagram Reference: 15
Get Part
64D8257011 (UR)
Panel switch assembly
Diagram Reference: 16
Get Part
64D8257031 (UR)
Panel switch assembly
Diagram Reference: 16
Get Part
64D8257110
Panel, Switch
Diagram Reference: 17
Get Part
64D8258810
Plate
Diagram Reference: 18
Get Part
64D8257501 (FOR 64D-82570-11)
Engine Stop Switch assembly
Diagram Reference: 19
Get Part
64D8257511 (FOR 64D-82570-31)
Engine Stop Switch assembly
Diagram Reference: 19
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 20
Get Part
