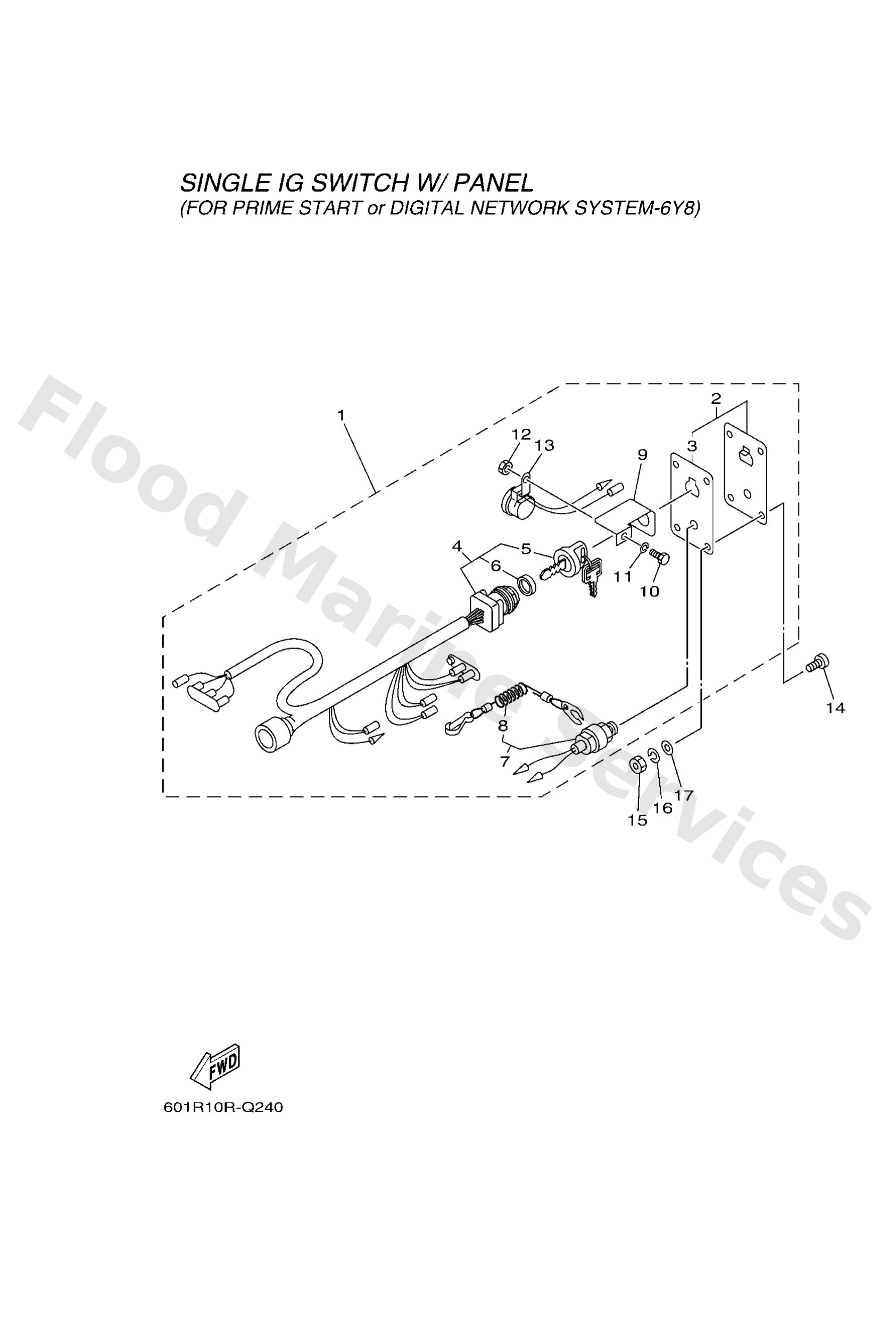

Diagram: SWITCH & PANEL 2

Diagram

Parts List

6R58257007 (WITHOUT CHOKE SW.)
Panel switch assembly
Diagram Reference: 1
Get Part
7048257102
Panel, switch
Diagram Reference: 2
Get Part
6R58258801
Plate
Diagram Reference: 3
Get Part
6R58251003
Main switch assembly
Diagram Reference: 4
Get Part
6768257701
Cap, key
Diagram Reference: 5
Get Part
7038253200
Cap
Diagram Reference: 6
Get Part
6888257502
Engine stop switch assembly
Diagram Reference: 7
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 8
Get Part
64D8258100
Stay, cord clamp
Diagram Reference: 9
Get Part
9730305012
Bolt, hexagon
Diagram Reference: 10
Get Part
9290305100
Ybs67-5 washer, spring
Diagram Reference: 11
Get Part
9530305700
Nut (656)
Diagram Reference: 12
Get Part
6R58338300
Buzzer
Diagram Reference: 13
Get Part
9014905M05
Screw(6k0)
Diagram Reference: 14
Get Part
9530305600
Nut, hexagon (663)
Diagram Reference: 15
Get Part
9290305600
Washer, plain (646)
Diagram Reference: 17
