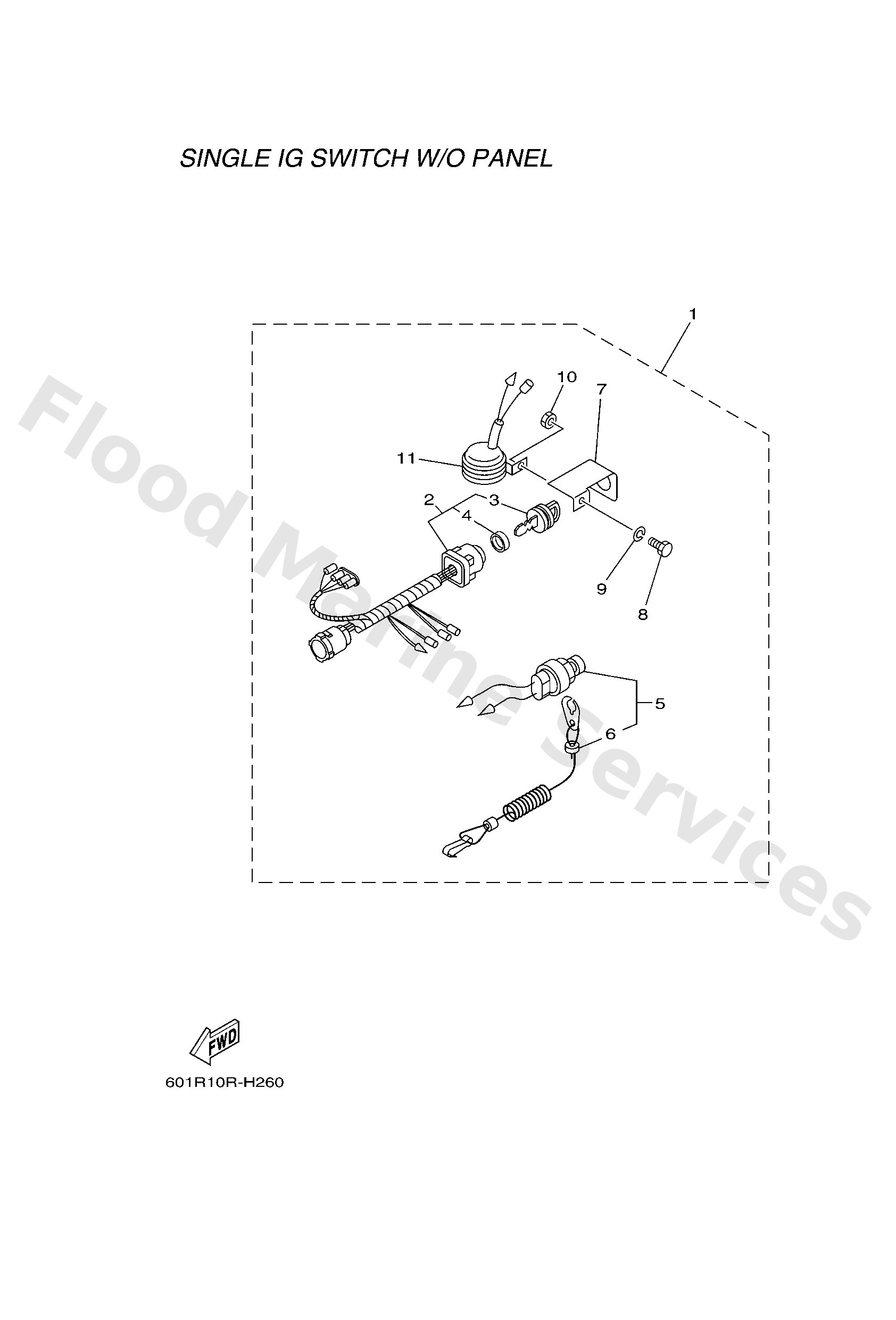

Diagram: SWITCH & PANEL 3

Diagram

Parts List

7048257C00 (WITH CHOKE SW.)
Panel switch comp. 2
Diagram Reference: 1
Get Part
7048251007
Main switch assembly
Diagram Reference: 2
Get Part
7038257700
Cap, key
Diagram Reference: 3
Get Part
6K18253200
Cap
Diagram Reference: 4
Get Part
6888257501
Engine stop switch assembly
Diagram Reference: 5
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 6
Get Part
64D8258100
Stay, cord clamp
Diagram Reference: 7
Get Part
9730305012
Bolt, hexagon
Diagram Reference: 8
Get Part
9290305100
Ybs67-5 washer, spring
Diagram Reference: 9
Get Part
9530305700
Nut (656)
Diagram Reference: 10
Get Part
6888338311
Buzzer
Diagram Reference: 11
