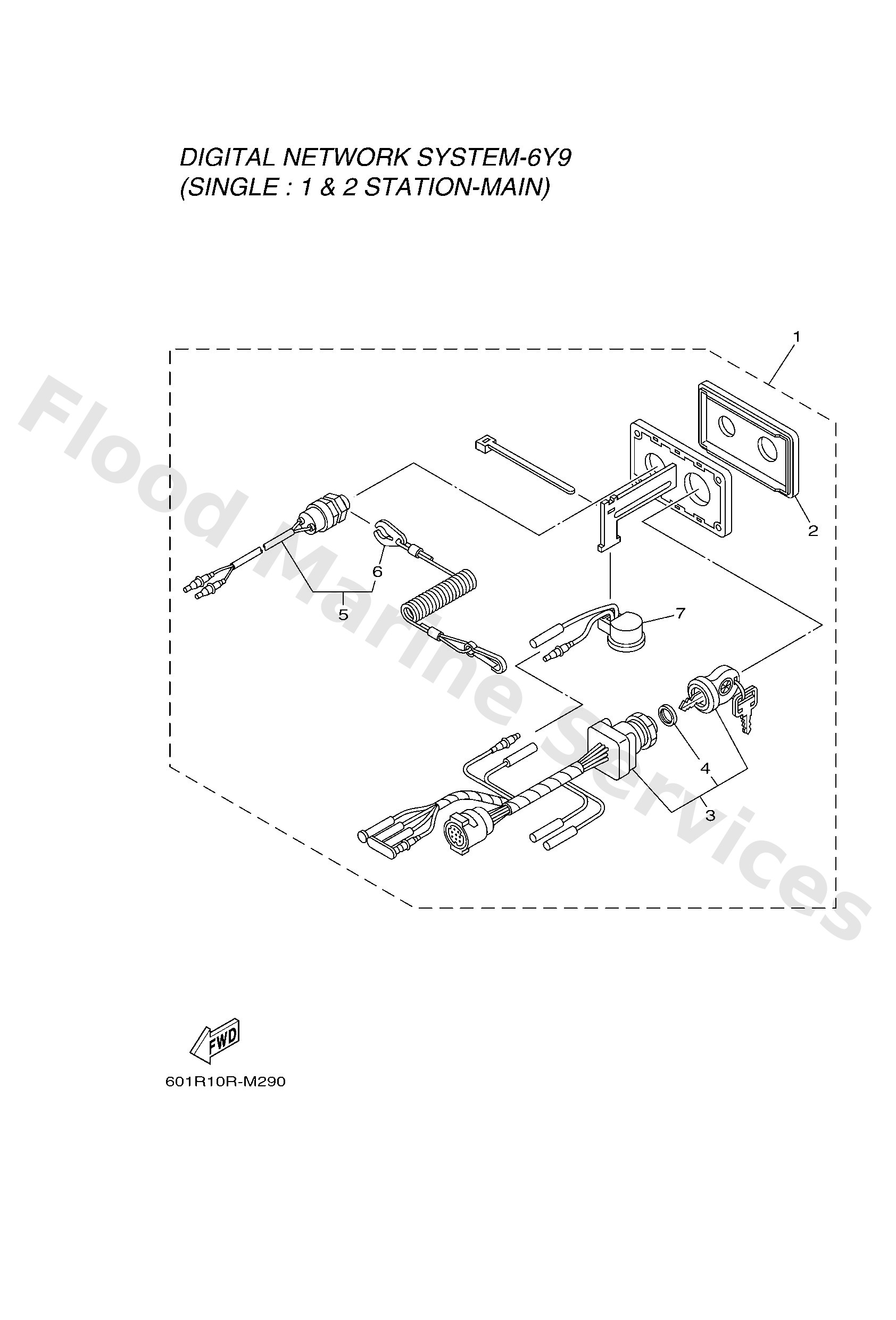

Diagram: SWITCH & PANEL 4

Diagram

Parts List

6X68257031 (& 2 STATION MAIN)
Switch panel dbw (single)
Diagram Reference: 1
Get Part
6X68257100
Panel, switch
Diagram Reference: 2
Get Part
6X68251001
Main switch assembly
Diagram Reference: 3
Get Part
7038253200
Cap
Diagram Reference: 4
Get Part
6888257510
Engine stop switch assembly
Diagram Reference: 5
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 6
Get Part
70383383A0
Buzzer
Diagram Reference: 7
Get Part
