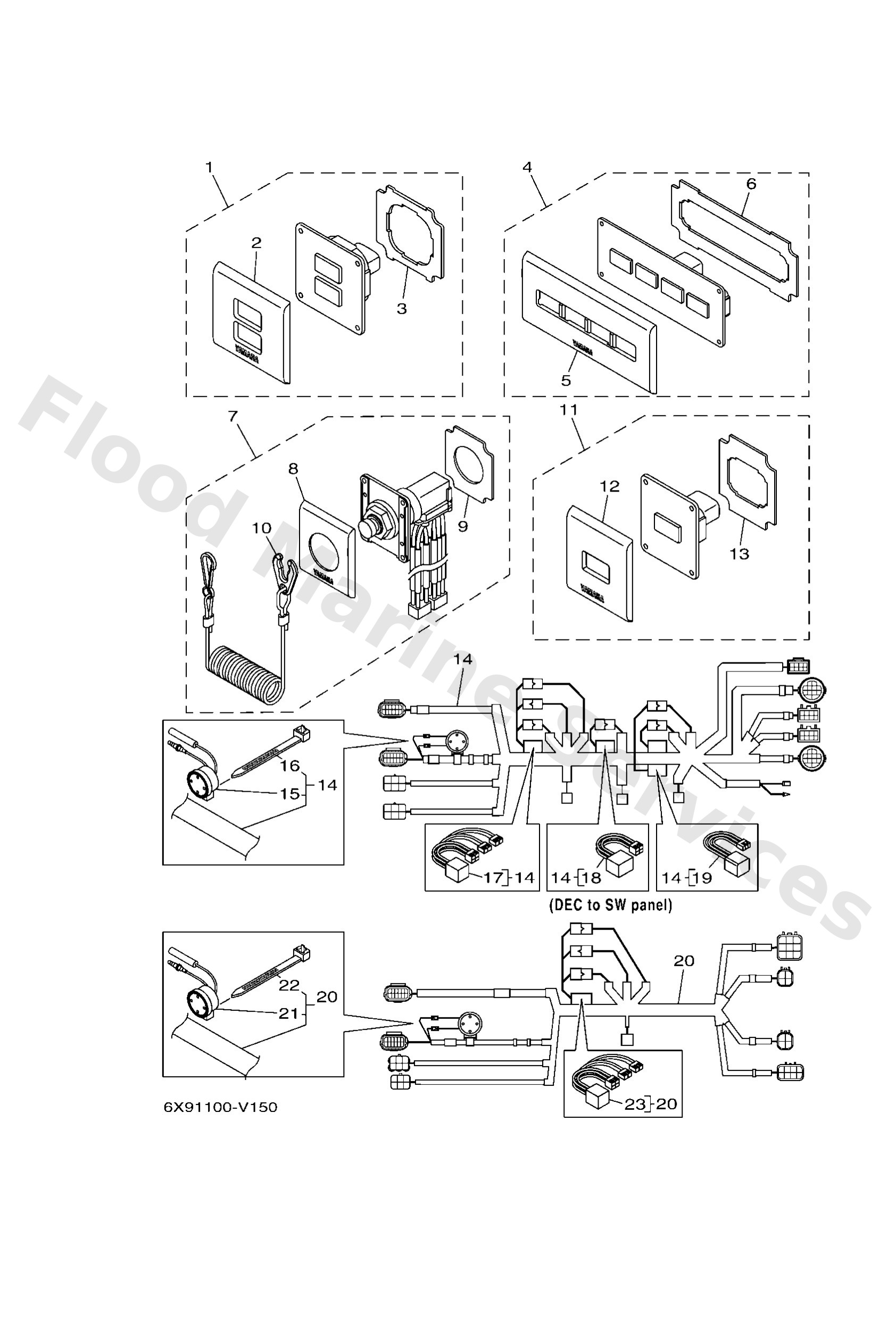

Diagram: SWITCH & PANEL 4 (EKS, QUAD)

Diagram

Parts List

6X98257000 (MAIN STATION)
Panel switch assembly
Diagram Reference: 1
Get Part
6X98257100
Panel, switch
Diagram Reference: 2
Get Part
6X92248000
Seal assembly
Diagram Reference: 3
Get Part
6X98257050 (MAIN STATION & 2ND STATION)
Panel switch assembly
Diagram Reference: 4
Get Part
6X98257150
Panel, switch
Diagram Reference: 5
Get Part
6X92248050
Seal assembly
Diagram Reference: 6
Get Part
6X982570D0 (MAIN STATION & 2ND STATION)
Emergency stop switch
Diagram Reference: 7
Get Part
6X98257170
Panel, switch
Diagram Reference: 8
Get Part
6X92248070
Seal assembly
Diagram Reference: 9
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 10
Get Part
6X982570B0 (2ND STATION)
Power sw start/stop 2nd st
Diagram Reference: 11
Get Part
6X98257120
Panel, switch
Diagram Reference: 12
Get Part
6X92248020
Seal assembly
Diagram Reference: 13
Get Part
6X98271691 (MAIN STATION)
Cord switch
Diagram Reference: 14
Get Part
7038338311
Buzzer
Diagram Reference: 15
Get Part
9046513M39
Clamp(6e8)
Diagram Reference: 16
Get Part
6X68198040
Diode assembly
Diagram Reference: 17
Get Part
6X68198000
Diode assembly
Diagram Reference: 18
Get Part
6X98195000
Relay assembly
Diagram Reference: 19
Get Part
6X982716A0 (2ND STATION)
Cord switch
Diagram Reference: 20
Get Part
