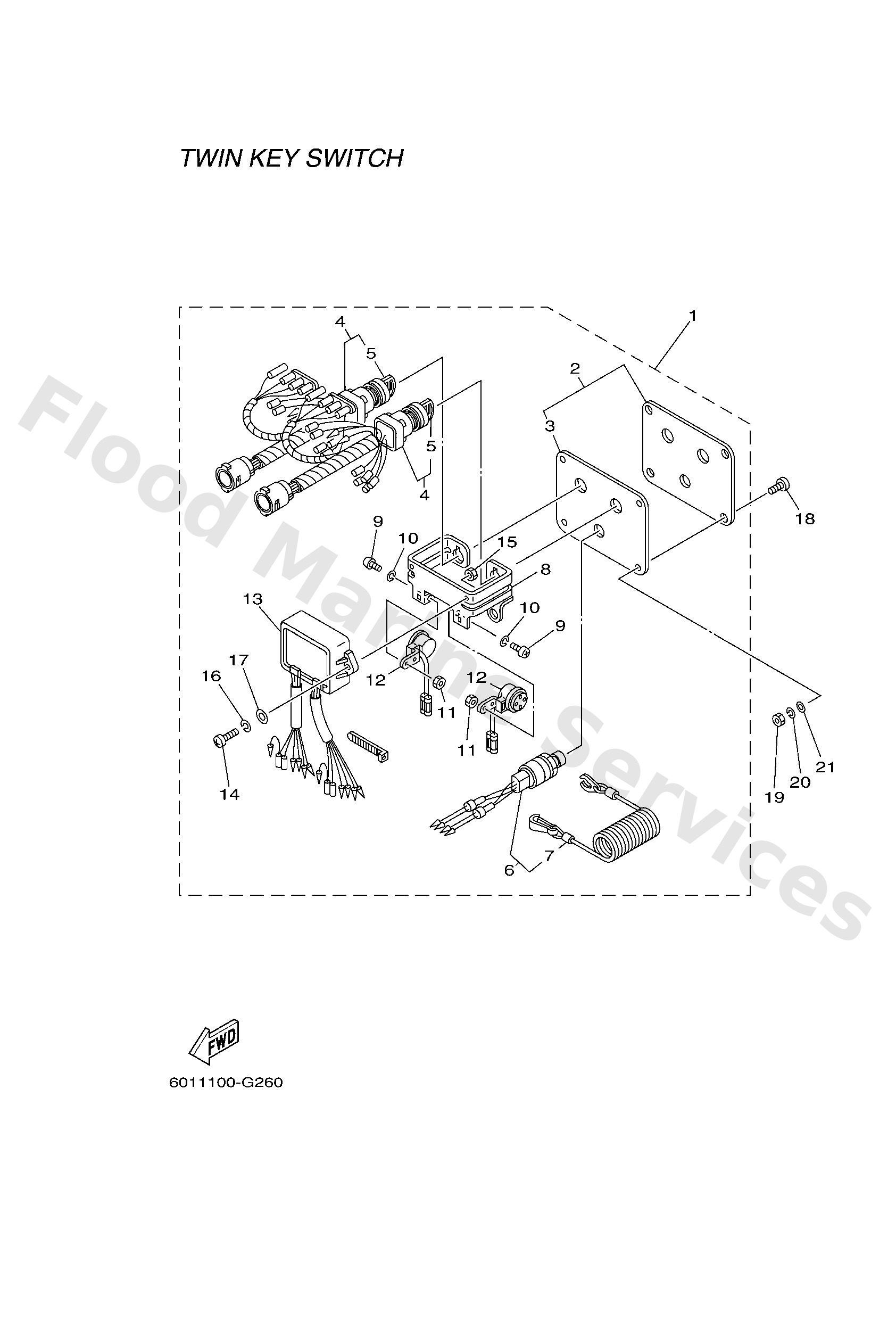

Diagram: SWITCH & PANEL 6

Diagram

Parts List

61B8257003 (WITH CHOKE SW.)
Panel switch assembly
Diagram Reference: 1
Get Part
6K18257102
Plate, panel switch
Diagram Reference: 2
Get Part
61B8258801
Plate
Diagram Reference: 3
Get Part
61B8251001
Main switch assembly
Diagram Reference: 4
Get Part
6768257700
Cap, key
Diagram Reference: 5
Get Part
6K18257500
Engine stop switch assembly
Diagram Reference: 6
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 7
Get Part
6K18361401
Bracket
Diagram Reference: 8
Get Part
9898005010
Screw, bind(6k1)
Diagram Reference: 9
Get Part
9299005100
Ybs67-5 washer, spring
Diagram Reference: 10
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 11
Get Part
6R58338300
Buzzer
Diagram Reference: 12
Get Part
61B8583000
Control Unit assembly
Diagram Reference: 13
Get Part
9898006020
Screw, bind (j17)
Diagram Reference: 14
Get Part
9538006600
Nut(661)
Diagram Reference: 15
Get Part
9299006100
Washer(6a1)
Diagram Reference: 16
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 17
Get Part
9014905M05
Screw(6k0)
Diagram Reference: 18
Get Part
9299005600
Washer, plain (646)
Diagram Reference: 21
Get Part
