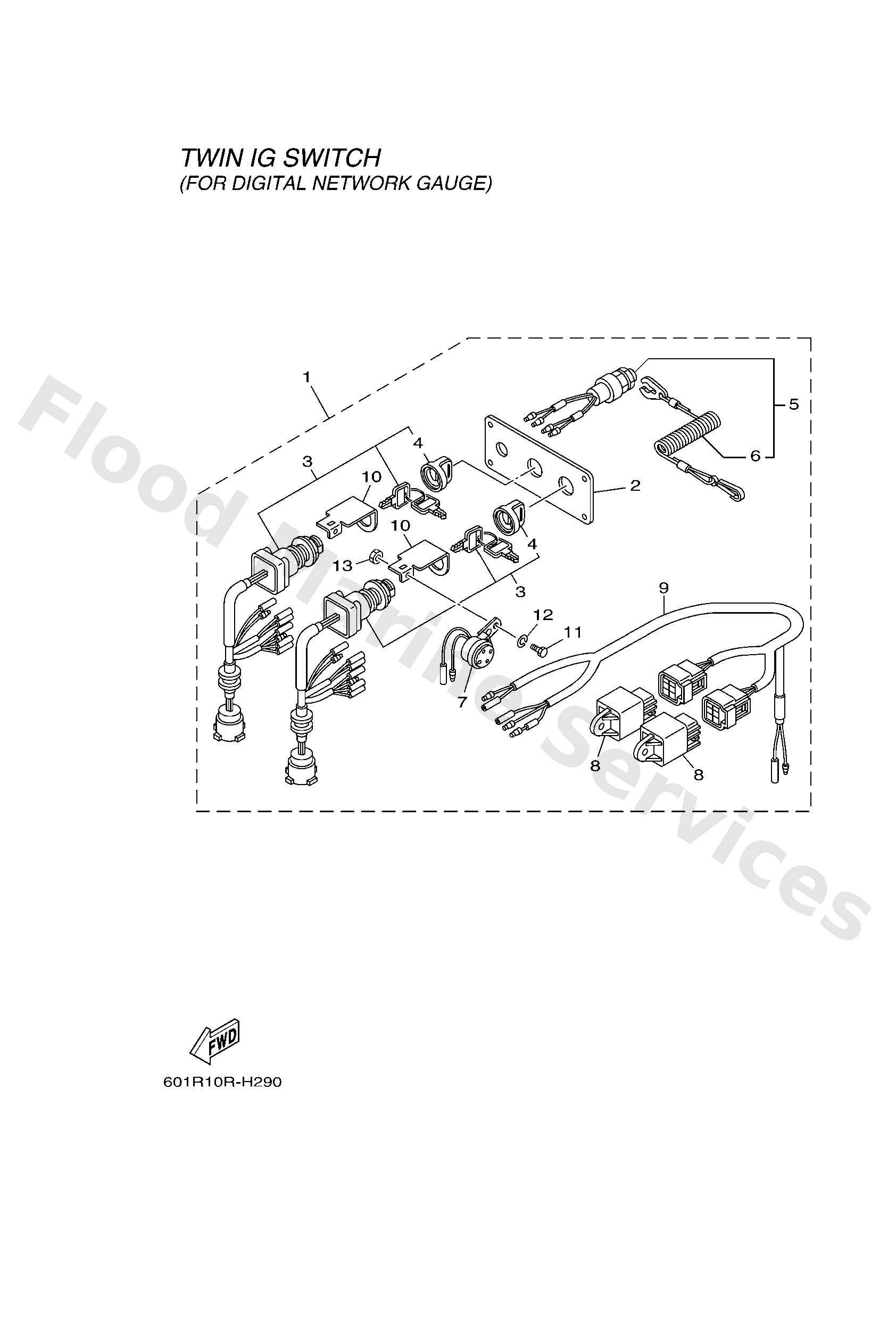

Diagram: SWITCH & PANEL 7

Diagram

Parts List

6Y88257002 (& 2 STATION MAIN)
Panel switch assembly
Diagram Reference: 1
Get Part
6Y88257101
Plate, panel switch
Diagram Reference: 2
Get Part
6Y88251002
Main switch assembly
Diagram Reference: 3
Get Part
6768257700
Cap, key
Diagram Reference: 4
Get Part
6K18257500
Engine stop switch assembly
Diagram Reference: 5
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 6
Get Part
6R58338300
Buzzer
Diagram Reference: 7
Get Part
68V8195000
Relay assembly
Diagram Reference: 8
Get Part
6Y88250700
Lead, ignition switch relay
Diagram Reference: 9
Get Part
64D8258100
Stay, cord clamp
Diagram Reference: 10
Get Part
9730305012
Bolt, hexagon
Diagram Reference: 11
Get Part
9290305100
Ybs67-5 washer, spring
Diagram Reference: 12
Get Part
9530305700
Nut (656)
Diagram Reference: 13
