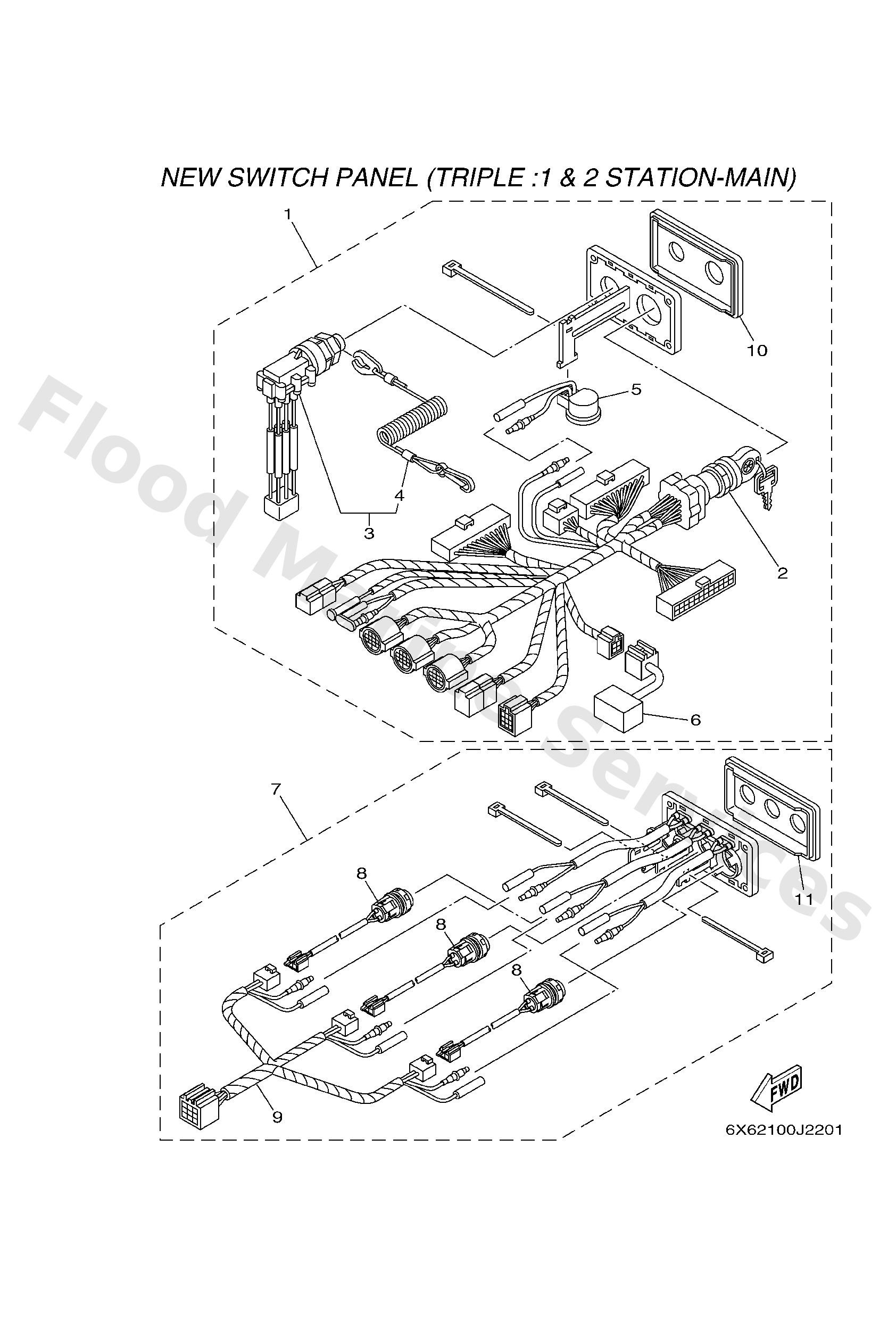

Diagram: SWITCH & PANEL 8 (TRIPLE)

Diagram

Parts List

6X68257050 (& 2 STATION MAIN)
Panel Switch assembly
Diagram Reference: 1
Get Part
6X68251020
Main switch assembly
Diagram Reference: 2
Get Part
6X68257510
Engine stop switch assembly
Diagram Reference: 3
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 4
Get Part
70383383A0
Buzzer
Diagram Reference: 5
Get Part
6X68198000
Diode assembly
Diagram Reference: 6
Get Part
6X68257070 (& 2 STATION MAIN)
Panel Switch assembly
Diagram Reference: 7
Get Part
6X68259E20
Switch assembly
Diagram Reference: 8
Get Part
6X68271610
Cord switch
Diagram Reference: 9
Get Part
6X68257110
Panel, switch
Diagram Reference: 10
Get Part
6X68257130
Panel, switch
Diagram Reference: 11
