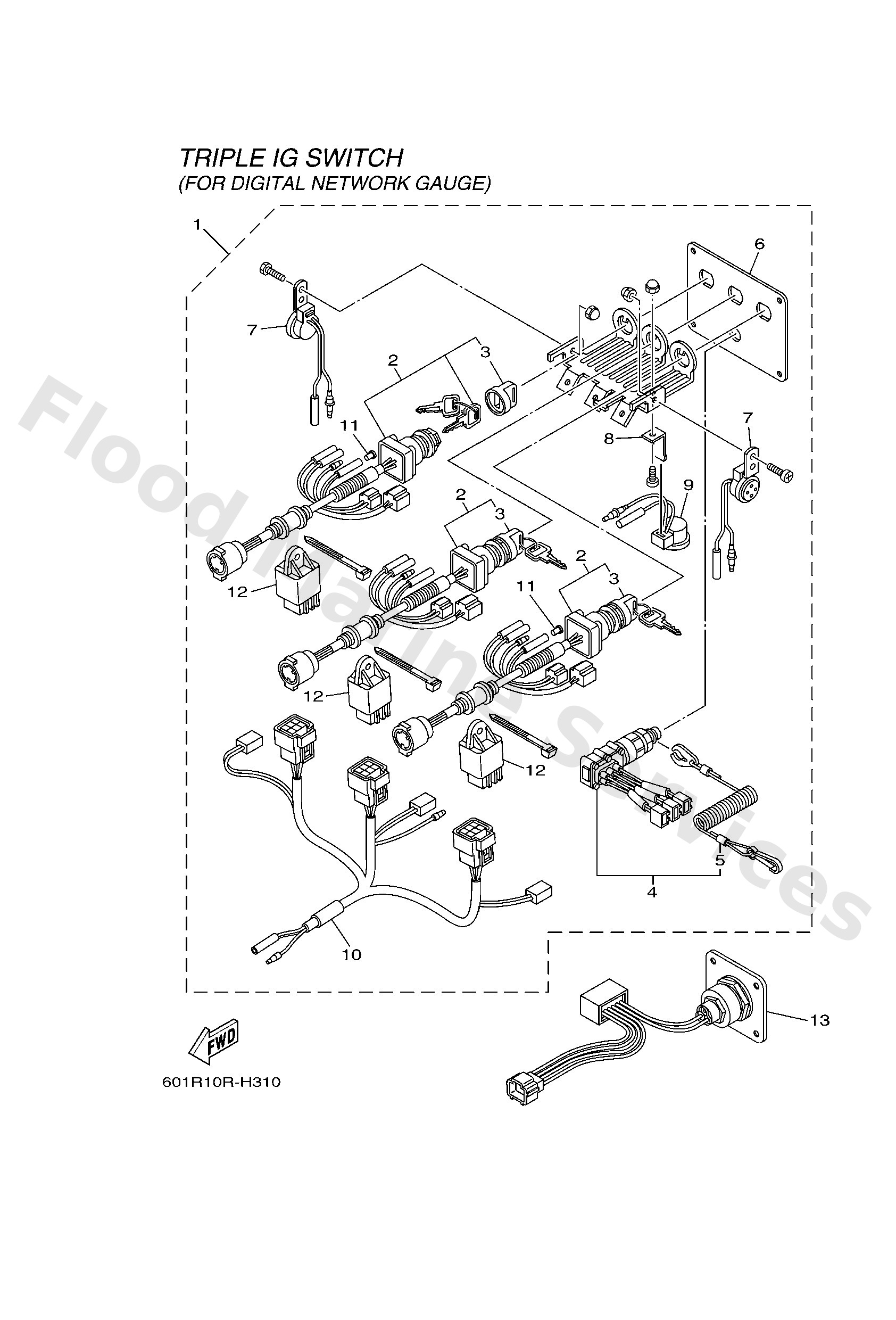

Diagram: SWITCH & PANEL 9

Diagram

Parts List

6X58257001 (STATION MAIN)
Panel switch assembly
Diagram Reference: 1
Get Part
6X58251001
Main switch assembly
Diagram Reference: 2
Get Part
6768257700
Cap, key
Diagram Reference: 3
Get Part
6X58257500
Engine stop switch assembly
Diagram Reference: 4
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 5
Get Part
6X58257100
Panel, switch
Diagram Reference: 6
Get Part
6X58338300
Buzzer
Diagram Reference: 7
Get Part
6X58258100
Stay, cord clamp
Diagram Reference: 8
Get Part
6X48338300
Buzzer
Diagram Reference: 9
Get Part
6X58250700
Wire, lead
Diagram Reference: 10
Get Part
7038211900
Cover, lead wire
Diagram Reference: 11
Get Part
68V8195000
Relay assembly
Diagram Reference: 12
Get Part
6X682570A0 (STATION MAIN)
Panel Switch assembly
Diagram Reference: 13
