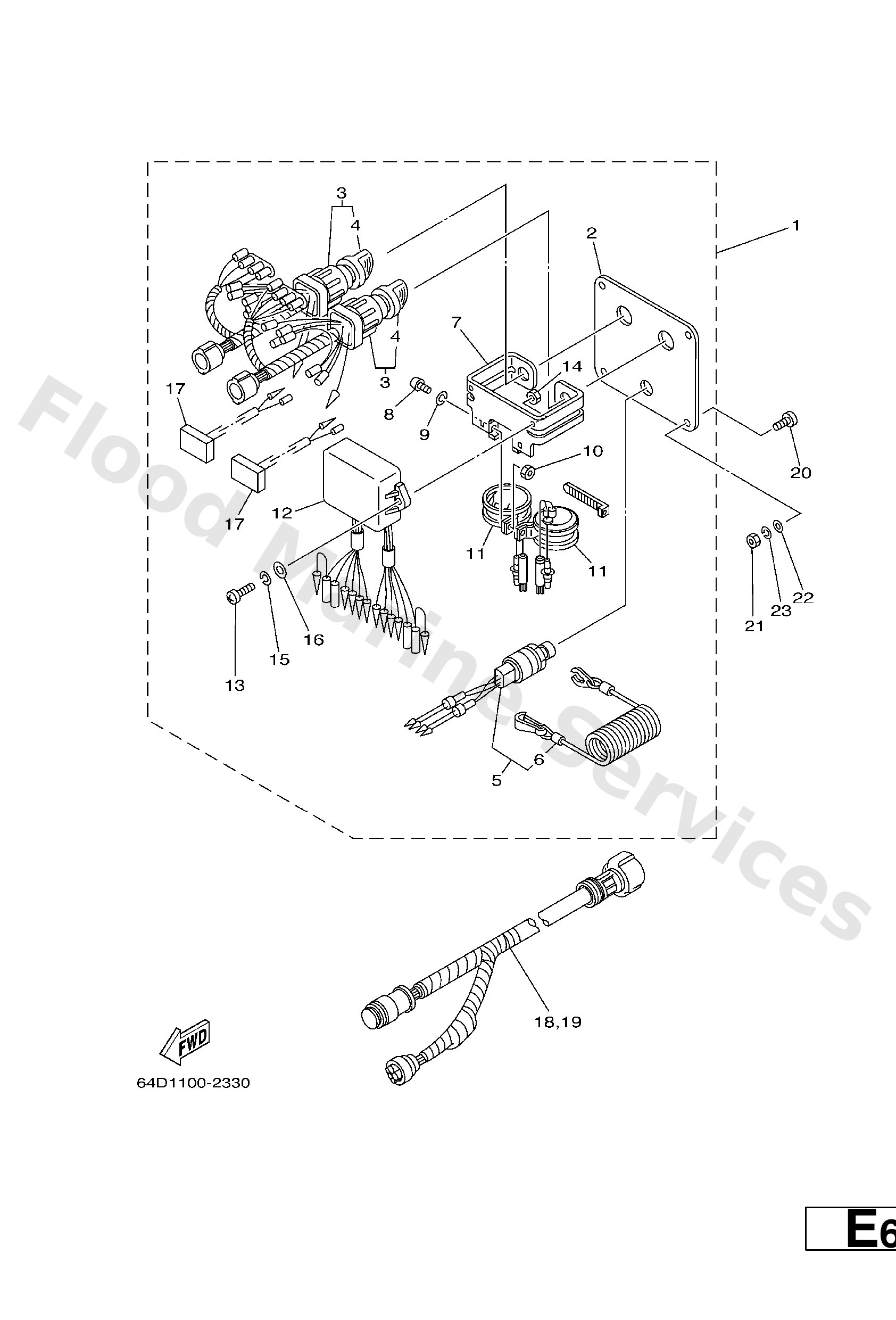

Diagram: SWITCH. PANEL 1

Diagram

Parts List

6K1−82570−07 (AP FOR OCEANIA)

Panel switch assembly

Diagram Reference: 1

6K1−82571−01

Plate, panel switch

Diagram Reference: 2

6K1−82510−06

Main switch assembly

Diagram Reference: 3

703−82577−00

Cap, key

Diagram Reference: 4

6K1−82575−00

Engine stop switch assembly

Diagram Reference: 5

682−82556−00

Lanyard, stop switch

Diagram Reference: 6

6K1−83614−01

Bracket

Diagram Reference: 7

98980−05010

Screw, bind(6k1)

Diagram Reference: 8

92990−05100 (AP FOR OCEANIA)

Ybs67-5 washer, spring

Diagram Reference: 23

95380−05600 (AP FOR OCEANIA)

Nut, hexagon (663)

Diagram Reference: 21

688−83383−11

Buzzer

Diagram Reference: 11

6K1−85830−01

Control unit assembly

Diagram Reference: 12

98980−06020

Screw, bind (j17)

Diagram Reference: 13

95380−06600

Nut(661)

Diagram Reference: 14

92990−06100

Washer(6a1)

Diagram Reference: 15

92990−06600

Washer, plain (646)

Diagram Reference: 16

6K1−81980−00

Diode assembly

Diagram Reference: 17

6K1−8258A−40 (AP FOR OCEANIA)

Extension, wire harness

Diagram Reference: 18

61B−8258A−01 (AP FOR OCEANIA)

Extension, wire harness

Diagram Reference: 19

90149−05M05 (AP FOR OCEANIA)

Screw(6k0)

Diagram Reference: 20

92990−05600 (AP FOR OCEANIA)

Washer, plain (646)

Diagram Reference: 22
