E8DMH (1999)
Starter

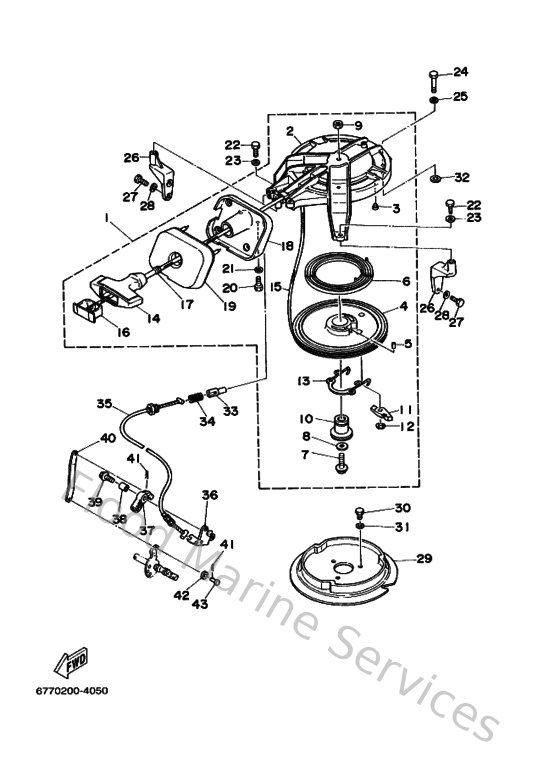

Diagram: Starter
Parts List
Reference
Description
Price
1
677157100594
Starter assembly
Loading…
↗
2
682157117194
Case, Starter
Loading…
↗
3
648157730000
Stay 3
Loading…
↗
4
677157140094
Drum, sheave
Loading…
↗
5
916904002000
Pin, spring
Loading…
↗
6
9051008M0400
Spring, spiral (677)
Loading…
↗
7
9011906M3400
Bolt,with washer (6k8)
Loading…
↗
8
90201065F300
Washer, plate
Loading…
↗
9
953800660000
Nut(661)
Loading…
↗
10
677157170100
Shaft
Loading…
↗
11
677157410100
Pawl, drive
Loading…
↗
12
9343006M0200
Circlip (689)
Loading…
↗
13
677157050200
Spring, pawl drive
Loading…
↗
14
689157550100
Handle, starter
Loading…
↗
15
9058050M0000
Wire (L1650)
Loading…
↗
16
6F5157790200
Cover
Loading…
↗
17
697157890000
Damper
Loading…
↗
18
677157580194
Guide, Rope
Loading…
↗
19
677157620000
Seal 2
Loading…
↗
20
970950601600
Bolt, hexagon deep recess
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
22
970800602000
Bolt(7u8)
Loading…
↗
24
970950603500
Bolt(j52)
Loading…
↗
26
6K3157710094
Stay 1
Loading…
↗
27
970800601800
Bolt (fj0)
Loading…
↗
29
6E7157230094
Pully, starter
Loading…
↗
30
970950601200
Bolt(gh1)
Loading…
↗
32
902011004900
Washer, plate
Loading…
↗
33
656157480000
Plunger, starter stop
Loading…
↗
34
905011022700
Spring, comprreshion(656)
Loading…
↗
35
677157700100
Starter stop wire comp.
Loading…
↗
36
677157720000
Stay 2
Loading…
↗
37
677157460000
Arm
Loading…
↗
38
903870650400
Collar(650)
Loading…
↗
39
9011906M8700
Bolt, with washer(61n)
Loading…
↗
40
677157470000
Link
Loading…
↗
41
904681000500
Pin, hair 6264123500
Loading…
↗
42
902020508800
Washer, plate (666)
Loading…
↗
43
647416520000
Set pin,vagneto control lever2
Loading…
↗
