F100AET (2001)
Starting Motor

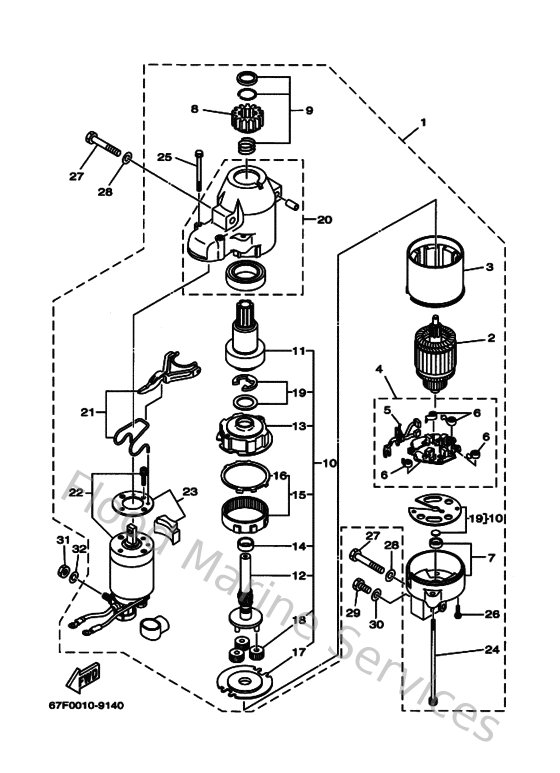

Diagram: Starting Motor
Parts List
Reference
Description
Price
1
67F818000200
Starting motor assembly
Loading…
↗
2
67F818500000
Armature assembly
Loading…
↗
3
67F818100000
Stator assembly
Loading…
↗
4
67F818400000
Brush holder assembly
Loading…
↗
5
67F818010000
Brush set
Loading…
↗
6
67F818130000
Spring, brush
Loading…
↗
7
67F818200000
Rear bracket assembly
Loading…
↗
8
67F818080000
Pinion assembly
Loading…
↗
9
67F818570000
Pinion stopper set
Loading…
↗
10
67F818070000
Gear assembly, starting motor
Loading…
↗
11
67F818320000
Clutch, over run
Loading…
↗
12
67F818360000
Shaft, pinion
Loading…
↗
13
67F818210000
Bracket, center 1
Loading…
↗
14
67F818410000
Bearing
Loading…
↗
15
67F818910000
Gear, ring
Loading…
↗
16
67F8183R0000
Gasket
Loading…
↗
17
67F818300000
Bracket, center 2
Loading…
↗
18
67F8183T0000
Gear, Idler
Loading…
↗
19
67F818090000
Washer kit
Loading…
↗
20
67F818420000
Cover
Loading…
↗
21
67F818390000
Lever assembly
Loading…
↗
22
67F819410100
Starter Relay assembly
Loading…
↗
23
67F818690000
Cover, dust
Loading…
↗
24
6K7818261100
Bolt
Loading…
↗
25
67F818280000
Bolt 2
Loading…
↗
26
67F818460000
Screw
Loading…
↗
27
970130804500
Bolt
Loading…
↗
28
929901010000
Ybs67-10 washer, spring
Loading…
↗
29
970130801600
Bolt, hexagon
Loading…
↗
30
929030860000
Washer, plain (663)
Loading…
↗
31
953330860000
Nut(6l2)
Loading…
↗
32
929030810000
Ybs67-8 washer, spring
Loading…
↗
