L250AETO (1990)
Starting Motor

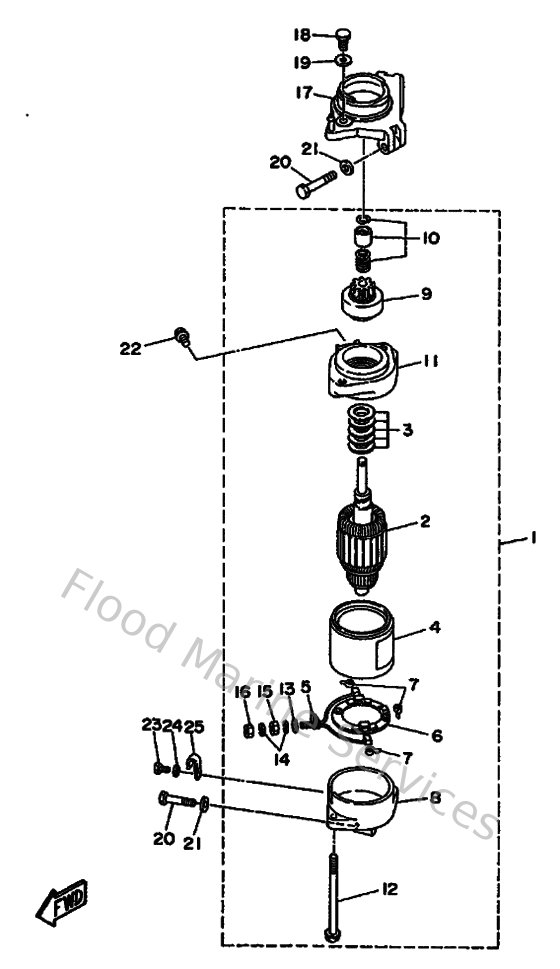

Diagram: Starting Motor
Parts List
Reference
Description
Price
1
61A818000000
Starting motor assembly
Loading…
↗
2
61A818500000
Armature Assembly
Loading…
↗
3
61A818090000
Washer kit
Loading…
↗
5
6K7818011000
Brush Set
Loading…
↗
6
61A818400000
Brush holder assembly
Loading…
↗
7
6E5818131000
Spring Brush
Loading…
↗
8
61A818200000
Rear Bracket assembly
Loading…
↗
9
61A818070000
Gear assembly Starting Motor
Loading…
↗
10
6E5818571000
Retainer
Loading…
↗
11
61A818300000
Front Bracket assembly
Loading…
↗
12
6K7818261000
Bolt
Loading…
↗
13
6E58182E1000
Washer, spring
Loading…
↗
14
6E58182F1000
Washer,plain
Loading…
↗
15
6E58182A1000
Nut
Loading…
↗
16
6E58182K1000
Nut
Loading…
↗
17
61A818220094
Bracket, starting motor
Loading…
↗
18
970130802500
Bolt (682)
Loading…
↗
19
929900860000
Washer, plain (663)
Loading…
↗
20
970130804500
Bolt
Loading…
↗
22
975130851600
Bolt, With Washer
Loading…
↗
23
973950601200
Bolt(gh1)
Loading…
↗
24
929900660000
Washer, plain (646)
Loading…
↗
25
904650802800
Clamp (1e6)
Loading…
↗
