40HM (1992)
Steering

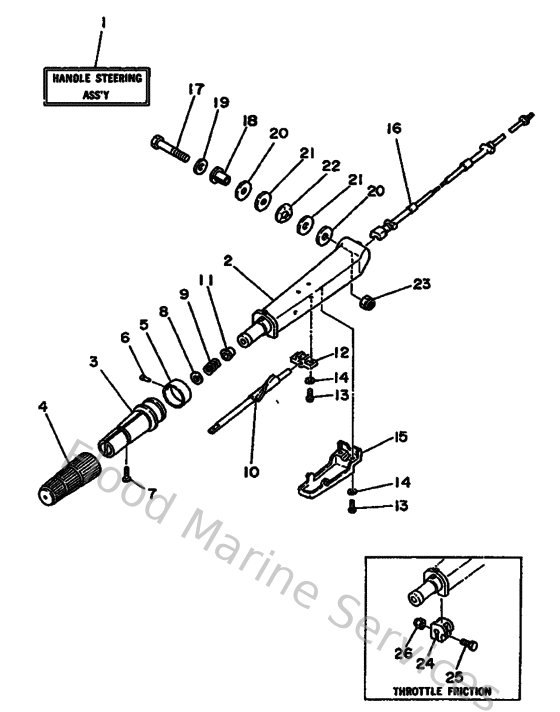

Diagram: Steering
Parts List
Reference
Description
Price
3
664421190000
Grip, steering handle
Loading…
↗
4
6G1421770000
Rubber, handle
Loading…
↗
5
6L2421370000
Indicator, throttle
Loading…
↗
6
9026902M0900
Rivet(6l5)
Loading…
↗
7
9014905M1300
Screw, countersunk
Loading…
↗
8
929901060000
Washer, plate
Loading…
↗
9
905012321500
Spring (655)
Loading…
↗
10
6H4421380100
Lever, throttle
Loading…
↗
11
903860803200
Bushing (650)
Loading…
↗
12
6H4421590000
Stay
Loading…
↗
13
978800501600
Screw, pan head(6b0)
Loading…
↗
14
929070560000
Washer(1rw)
Loading…
↗
15
6H4421310000
Cover, Handle Steering
Loading…
↗
16
6H4263110300
Cable, throttle 1
Loading…
↗
17
9010112M3700
Bolt (676)
Loading…
↗
18
903861208900
Bushing(663)
Loading…
↗
19
929901220000
Ybs66-12 washer,plain
Loading…
↗
20
902021209200
Washer, plate(663)
Loading…
↗
21
902011253700
Washer, plate(663)
Loading…
↗
23
901851205800
Nut, nylon(663)
Loading…
↗
24
656421260100
Piece, friction
Loading…
↗
25
973950602000
Bolt(7u8)
Loading…
↗
26
901850606200
Nut selflocking (656)
Loading…
↗
