6CEM (1994)
Steering

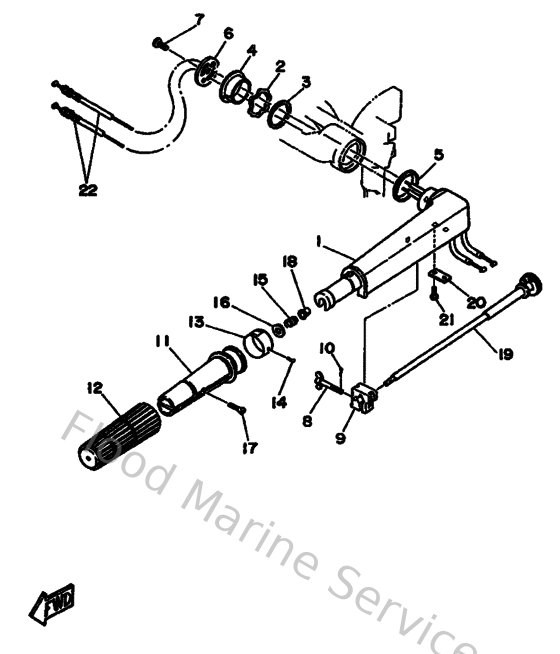

Diagram: Steering
Parts List
Reference
Description
Price
1
6G142111034D
Handle, Steering
Loading…
↗
2
9020635M2000
Washer, wave(6j8)
Loading…
↗
3
9020235M2400
Washer (6g1)
Loading…
↗
4
9038634M4000
Bushing (6g1)
Loading…
↗
5
9038643M7900
Bush(6l5)
Loading…
↗
6
6G1421310100
Cover, handle steering
Loading…
↗
7
970950601600
Bolt, hexagon deep recess
Loading…
↗
8
6G1421250100
Bolt, friction adjusting
Loading…
↗
9
6G1421260000
Piece, friction
Loading…
↗
10
914901601000
Pin, cotter
Loading…
↗
11
664421190000
Grip, steering handle
Loading…
↗
12
6G1421770000
Rubber, handle
Loading…
↗
13
6G1421372000
Indicator, throttle
Loading…
↗
14
9026902M0900
Rivet(6l5)
Loading…
↗
15
905012321500
Spring (655)
Loading…
↗
16
929901060000
Washer, plate
Loading…
↗
17
9014905M1300
Screw, countersunk
Loading…
↗
19
6EGG21380000
Lever, throttle
Loading…
↗
20
6E0421590200
Stay
Loading…
↗
21
978950501200
Screw,pan head (646)
Loading…
↗
22
6G1263010200
Throttle cable assembly
Loading…
↗
