6DEM (1988)
Steering

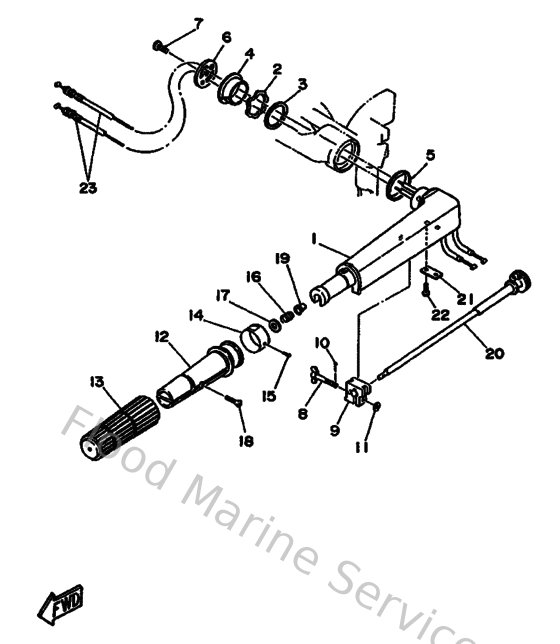

Diagram: Steering
Parts List
Reference
Description
Price
2
9020635M1100
Washer, wave(6j8)
Loading…
↗
3
9020235M2400
Washer (6g1)
Loading…
↗
4
9038634M4000
Bushing (6g1)
Loading…
↗
6
6G1421310100
Cover, handle steering
Loading…
↗
7
973950601600
Bolt, hexagon deep recess
Loading…
↗
8
6G1421250100
Bolt, friction adjusting
Loading…
↗
9
6G1421260000
Piece, friction
Loading…
↗
10
914901601000
Pin, cotter
Loading…
↗
11
902020508800
Washer, plate (666)
Loading…
↗
12
664421190000
Grip, steering handle
Loading…
↗
13
6G1421770000
Rubber, handle
Loading…
↗
14
6G1421372000
Indicator, throttle
Loading…
↗
15
902690200100
Rivet(6l5)
Loading…
↗
16
905012321500
Spring (655)
Loading…
↗
17
929901060000
Washer, plate
Loading…
↗
18
9014905M0600
Screw, countersunk
Loading…
↗
19
903860803200
Bushing (650)
Loading…
↗
20
6EGG21380000
Lever, throttle
Loading…
↗
21
6E0421590100
Stay
Loading…
↗
22
985800501200
Screw,pan head (646)
Loading…
↗
23
6G1263010200
Throttle cable assembly
Loading…
↗
