F9.9CMH (2000)
Steering 2

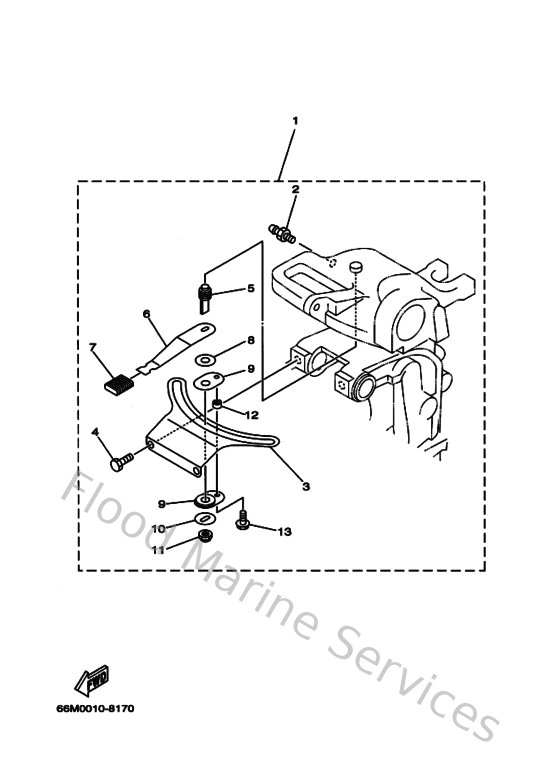

Diagram: Steering 2
Parts List
Reference
Description
Price
1
66M425080100
Steering friction assembly
Loading…
↗
2
9370006M0300
Nipple, grease(6a1)
Loading…
↗
3
66M425270000
Plate, friction
Loading…
↗
4
9010908M9100
Bolt, hexagon deep recess
Loading…
↗
5
65W425620000
Shaft, steering lock
Loading…
↗
6
66M425610000
Knob Steering Lock
Loading…
↗
7
689436330000
Cover, tilt lever
Loading…
↗
8
9020210M5600
Washer, plate
Loading…
↗
9
65W425280000
Plate, friction
Loading…
↗
10
9020910M2600
Washer
Loading…
↗
11
9018510M1400
Nut, self-locking
Loading…
↗
12
9038705M1100
Collar
Loading…
↗
13
9011905M0300
Bolt With Washer
Loading…
↗
