FT9.9AMH (2001)
Steering Guide

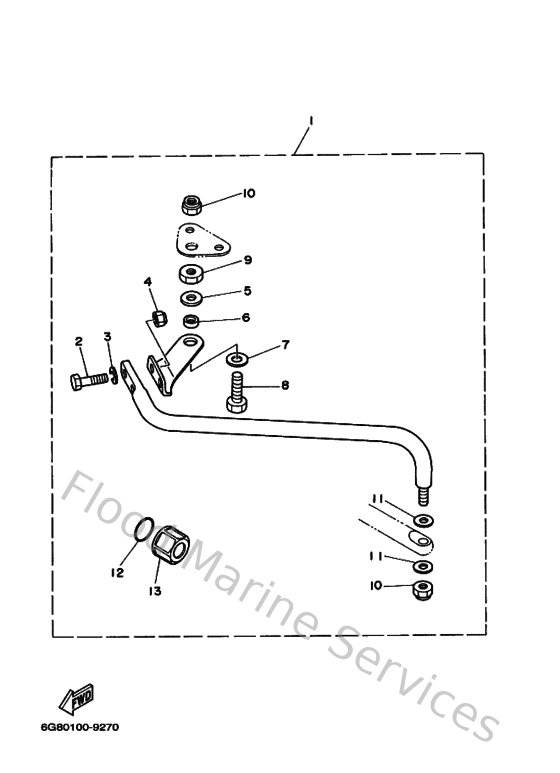

Diagram: Steering Guide
Parts List
Reference
Description
Price
1
6G8613500000
Steering guide attachment kit
Loading…
↗
2
970750802500
Bolt, hexagon deep recess
Loading…
↗
3
929950860000
Washer, plain (663)
Loading…
↗
4
901850805700
Nut, nylon (6j8)
Loading…
↗
5
9020110M0400
Washer, plate(6g8)
Loading…
↗
6
9038710M0600
Collar(6G8)
Loading…
↗
7
9020110M6300
Washer, plate
Loading…
↗
8
6E5613550000
Bolt
Loading…
↗
9
9017009M0300
Nut (689)
Loading…
↗
10
9018509M0100
Nut, nylon (663)
Loading…
↗
11
9020110M2000
Washer, plate (663)
Loading…
↗
12
932101627500
O-ring
Loading…
↗
13
6E5431450100
Cap, clamp bracket
Loading…
↗
