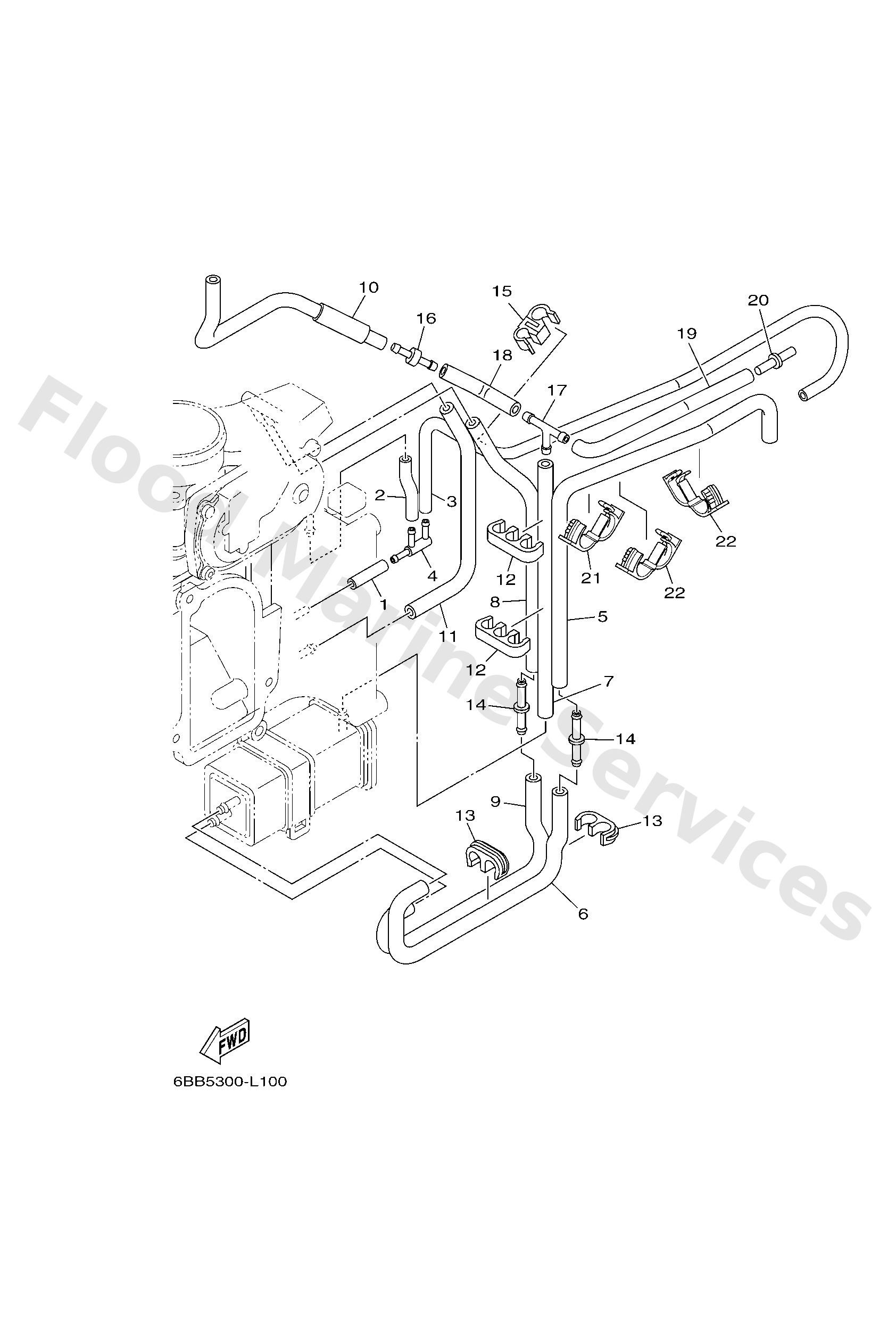

Diagram: THROTTLE BODY ASSY 2
Parts List
Pipe
Diagram Reference: 1
Hose, vacuum sensing 4
Diagram Reference: 2
Hose, vacuum sensing 3
Diagram Reference: 3
Joint
Diagram Reference: 4
Pipe 1
Diagram Reference: 5
Pipe 2
Diagram Reference: 6
Hose 1
Diagram Reference: 7
Pipe 3
Diagram Reference: 8
Pipe 4
Diagram Reference: 9
Hose 2
Diagram Reference: 10
Hose
Diagram Reference: 11
Clamp 1
Diagram Reference: 12
Clamp 2
Diagram Reference: 13
Pipe, joint
Diagram Reference: 14
Clamp 3
Diagram Reference: 15
Breezer
Diagram Reference: 16
Pipe, joint
Diagram Reference: 17
Hose 3
Diagram Reference: 18
Hose, air 4
Diagram Reference: 19
Pipe, joint 1
Diagram Reference: 20
Clamp
Diagram Reference: 21
