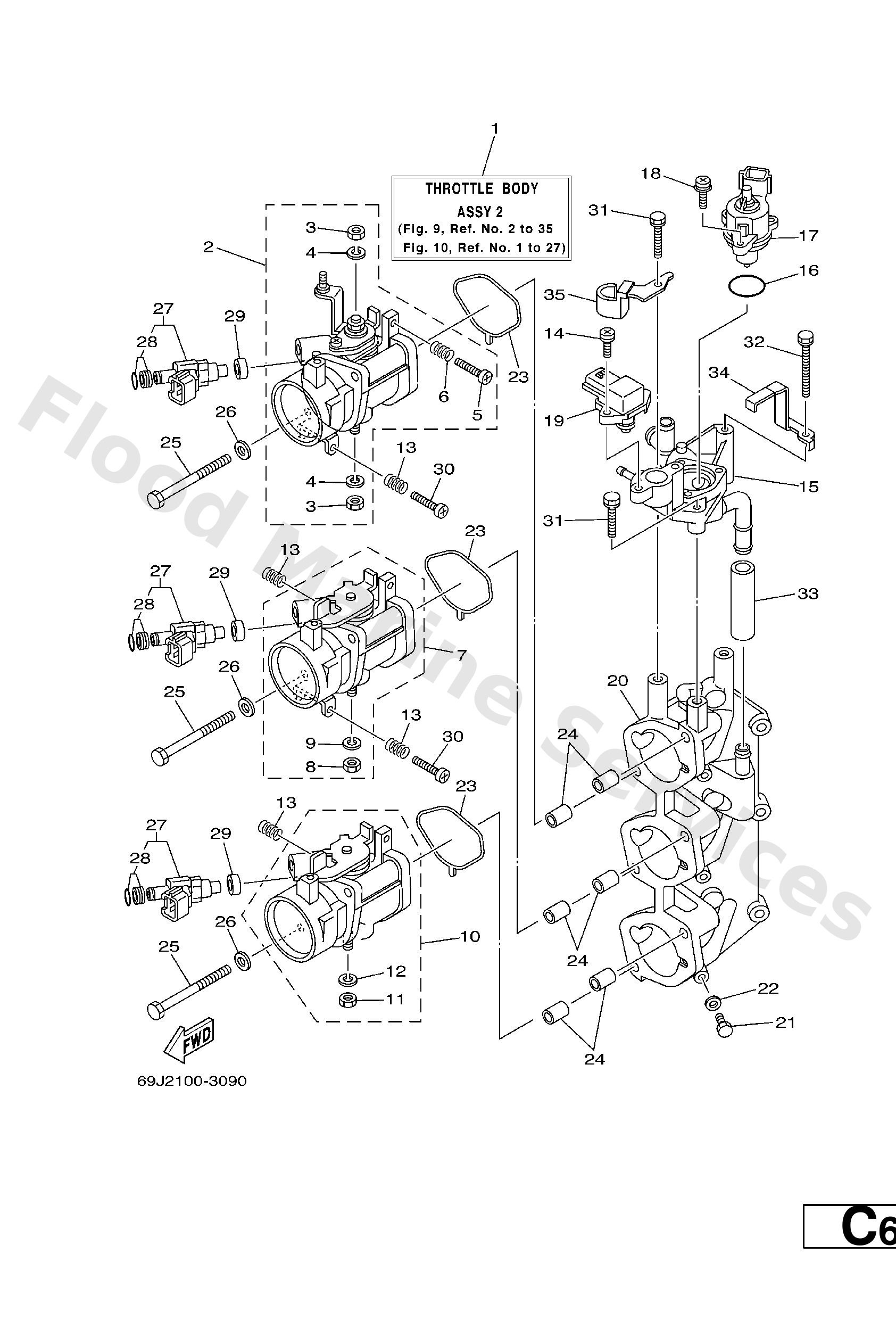

Diagram: THROTTLE BODY ASSY 2
Parts List
Throttle body assembly 2
Diagram Reference: 1
Throttle Body assembly 2
Diagram Reference: 1
Throttle body assembly 2
Diagram Reference: 1
Throttle Body assembly 2
Diagram Reference: 1
Body, throttle 2
Diagram Reference: 2
Body, throttle 2
Diagram Reference: 2
Body, throttle 2
Diagram Reference: 2
Body, throttle 2
Diagram Reference: 2
Ybs67-8 washer, spring
Diagram Reference: 4
Ybs67-8 washer, spring
Diagram Reference: 4
Screw, air adjusting
Diagram Reference: 5
Screw, air adjusting
Diagram Reference: 5
Spring, throttle valve
Diagram Reference: 6
Spring, throttle valve
Diagram Reference: 6
Body, Throttle 4
Diagram Reference: 7
Body, throttle 4
Diagram Reference: 7
Body, Throttle 4
Diagram Reference: 7
Body, throttle 4
Diagram Reference: 7
Body, Throttle 6
Diagram Reference: 10
Body, throttle 6
Diagram Reference: 10
Body, Throttle 6
Diagram Reference: 10
Body, throttle 6
Diagram Reference: 10
Screw 3
Diagram Reference: 14
Screw 3
Diagram Reference: 14
Body assembly
Diagram Reference: 15
Body assembly
Diagram Reference: 15
O-ring
Diagram Reference: 16
O-ring
Diagram Reference: 16
Valve, control
Diagram Reference: 17
Valve, control
Diagram Reference: 17
Screw 2
Diagram Reference: 18
Screw 2
Diagram Reference: 18
Sensor, pressure
Diagram Reference: 19
Sensor, pressure
Diagram Reference: 19
Manifold 2
Diagram Reference: 20
Manifold 2
Diagram Reference: 20
Bolt
Diagram Reference: 21
Bolt
Diagram Reference: 21
Gasket 256113960000
Diagram Reference: 22
Gasket 256113960000
Diagram Reference: 22
Gasket
Diagram Reference: 23
Gasket
Diagram Reference: 23
Pin, dowel(3vd)
Diagram Reference: 24
Pin, dowel(3vd)
Diagram Reference: 24
Bolt
Diagram Reference: 25
Bolt
Diagram Reference: 25
Washer
Diagram Reference: 26
Washer
Diagram Reference: 26
Injector assembly
Diagram Reference: 27
Injector assembly
Diagram Reference: 27
Packing kit
Diagram Reference: 28
Packing kit
Diagram Reference: 28
Rubber, injector
Diagram Reference: 29
Rubber, injector
Diagram Reference: 29
Screw, throttle
Diagram Reference: 30
Screw, throttle
Diagram Reference: 30
Bolt 1
Diagram Reference: 31
Bolt 1
Diagram Reference: 31
Bolt 2
Diagram Reference: 32
Bolt 2
Diagram Reference: 32
Hose 3
Diagram Reference: 33
Hose 3
Diagram Reference: 33
Clip
Diagram Reference: 34
Clip
Diagram Reference: 34
Plate
Diagram Reference: 35
Plate
Diagram Reference: 35
