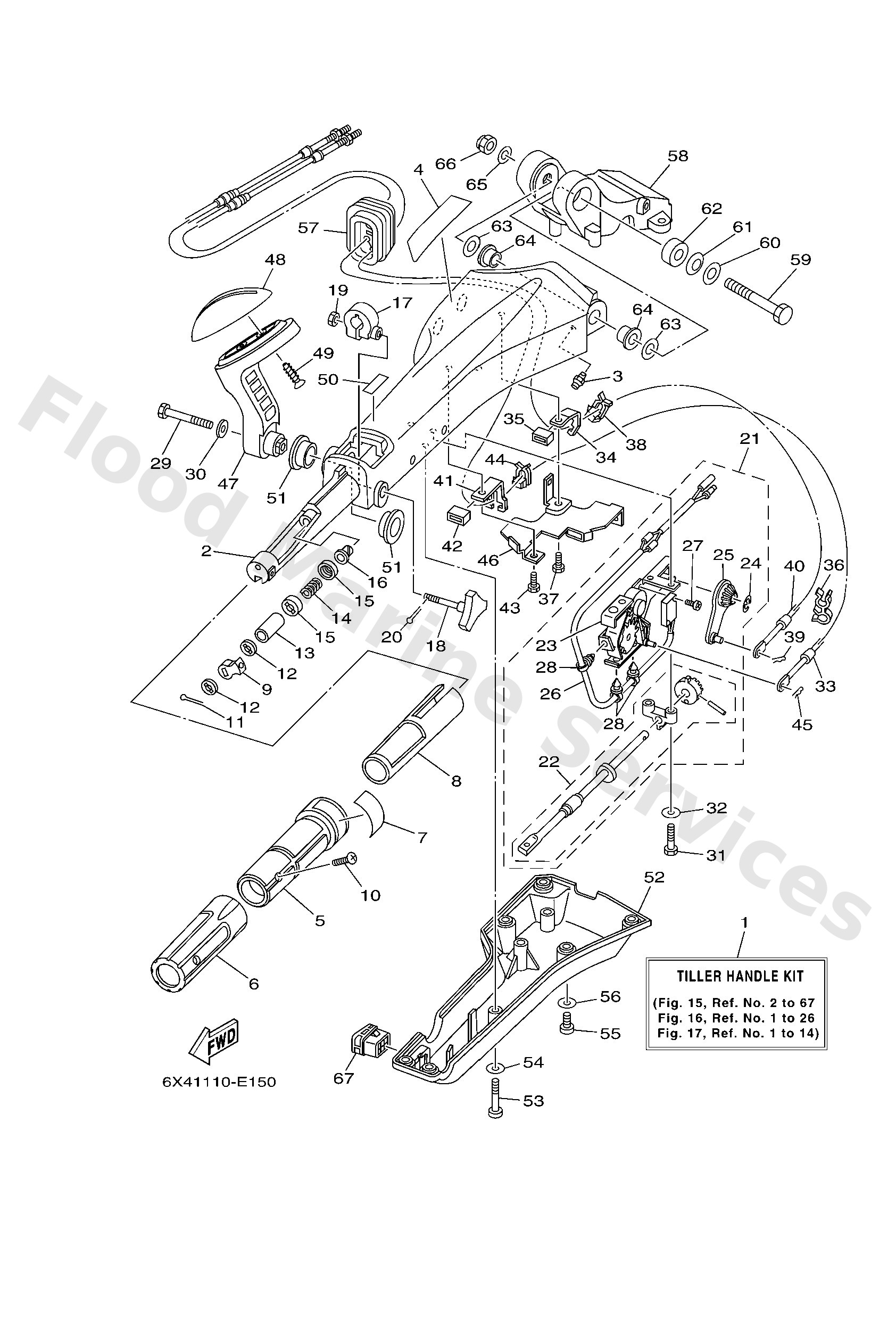

Diagram: TILLER HANDLE F25 COMPLETE 1

Diagram

Parts List

6X44210300 (LM)
F25 tiller handle complete
Diagram Reference: 1
Get Part
6X442111004D
Handle, steering kit
Diagram Reference: 2
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 3
Get Part
6X44821500
Graphic
Diagram Reference: 4
Get Part
6X44211900
Grip, steering handle
Diagram Reference: 5
Get Part
6X44217700
Rubber, handle
Diagram Reference: 6
Get Part
6X44213700
Indicator, throttle
Diagram Reference: 7
Get Part
6X44129100
Bushing
Diagram Reference: 8
Get Part
6X44413900
Collar
Diagram Reference: 9
Get Part
9014205001
Screw, countersunk
Diagram Reference: 10
Get Part
9149020010
Pin, cotter
Diagram Reference: 11
Get Part
6X44417700
Washer
Diagram Reference: 12
Get Part
6X44212800
Collar, distance 1
Diagram Reference: 13
Get Part
9050123215
Spring (655)
Diagram Reference: 14
Get Part
6X44418800
Washer
Diagram Reference: 15
Get Part
9038608032
Bushing (650)
Diagram Reference: 16
Get Part
63D4212600
Friction, steering handle grip
Diagram Reference: 17
Get Part
6X44815400
Knob, throttle
Diagram Reference: 18
Get Part
9538006600
Nut(661)
Diagram Reference: 19
Get Part
6X44410000
Shift link assembly
Diagram Reference: 21
Get Part
6X44211500
Shaft, steering handle
Diagram Reference: 22
Get Part
6X44410200
Shift assist assembly.
Diagram Reference: 23
Get Part
6X41413700
Clip
Diagram Reference: 24
Get Part
69W4826100
Arm, Throttle
Diagram Reference: 25
Get Part
6X48254000
Neutral switch assembly
Diagram Reference: 26
Get Part
6A54812910
Screw, pan head (n151)
Diagram Reference: 27
Get Part
6X44282100
Band, clamp
Diagram Reference: 28
Get Part
9709508040
Bolt, hexagon
Diagram Reference: 29
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 30
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 31
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 32
Get Part
6H14832120
Cable
Diagram Reference: 33
Get Part
6X44853800
Clamp, cable 1
Diagram Reference: 34
Get Part
6X42636700
Protector
Diagram Reference: 35
Get Part
9046409M42
Clamp(6b0)
Diagram Reference: 36
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 37
Get Part
63D4853800
Clamp, cable 1
Diagram Reference: 38
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 39
Get Part
6H34832101
Cable
Diagram Reference: 40
Get Part
6X44853810
Clamp, cable 1
Diagram Reference: 41
Get Part
6X44215900
Stay
Diagram Reference: 46
Get Part
6X444159004D
Handle, gear shift
Diagram Reference: 47
Get Part
6X44417300
Lever, shift control
Diagram Reference: 48
Get Part
9778060920
Screw, tapping
Diagram Reference: 49
Get Part
6G84419100
Indicator, shift
Diagram Reference: 50
Get Part
9038626MA3
Bush
Diagram Reference: 51
Get Part
6X44213100
-
Diagram Reference: 52
Get Part
9788506040
Screw pan head
Diagram Reference: 53
Get Part
9788506016
Screw, pan head(6b0)
Diagram Reference: 55
Get Part
6X44272500
Grommet
Diagram Reference: 57
Get Part
65W42121114D
-
Diagram Reference: 58
Get Part
9010112014
Bolt
Diagram Reference: 59
Get Part
9299012200
Ybs66-12 washer,plain
Diagram Reference: 60
Get Part
9020612M22
Washer, wave(6b0)
Diagram Reference: 61
Get Part
9038712M02
Collar(6b0)
Diagram Reference: 62
Get Part
9020112035
Washer, plate
Diagram Reference: 63
Get Part
9038612003
Bush
Diagram Reference: 64
Get Part
9299012600
Washer, plate(663)
Diagram Reference: 65
Get Part
9018512M12
Nut, self-locking(6e5)
Diagram Reference: 66
Get Part
6X44272810
Cap
Diagram Reference: 67
