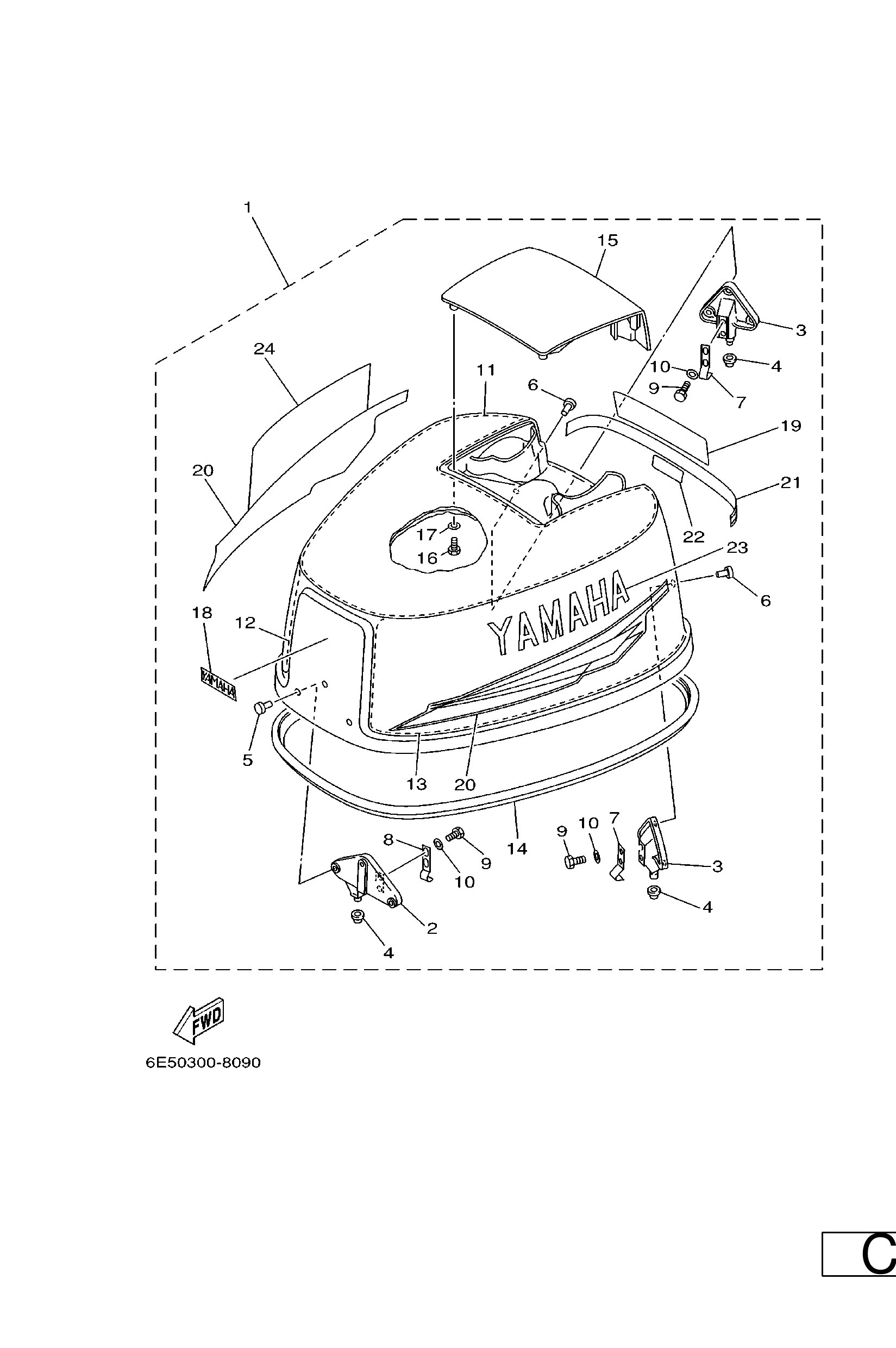

Diagram: TOP COWLING

Diagram

Parts List

6634266200
Damper
Diagram Reference: 4
Get Part
9026606M02
Rivet (697)
Diagram Reference: 5
Get Part
6E54265200
Hook 2
Diagram Reference: 7
Get Part
6884265200
Hook 2
Diagram Reference: 8
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
9299006600
Washer, plain (646)
Diagram Reference: 10
Get Part
6E54261700
Damper 1
Diagram Reference: 11
Get Part
6E54261900
Damper, Form
Diagram Reference: 12
Get Part
6E54262700
Damper, Form
Diagram Reference: 13
Get Part
6E54261500
Seal
Diagram Reference: 14
Get Part
68842677C0
Graphic, front
Diagram Reference: 18
Get Part
6E54267831
Graphic, Rear
Diagram Reference: 19
Get Part
6N7W007030
Graphic Set
Diagram Reference: 20
Get Part
6E54267A31
Graphic, Rear 2
Diagram Reference: 21
Get Part
6N74267830
Graphic, Rear
Diagram Reference: 22
Get Part
6N74268130
Mark, Cowling
Diagram Reference: 23
Get Part
6N74268230
Mark, Cowling
Diagram Reference: 24
Get Part
