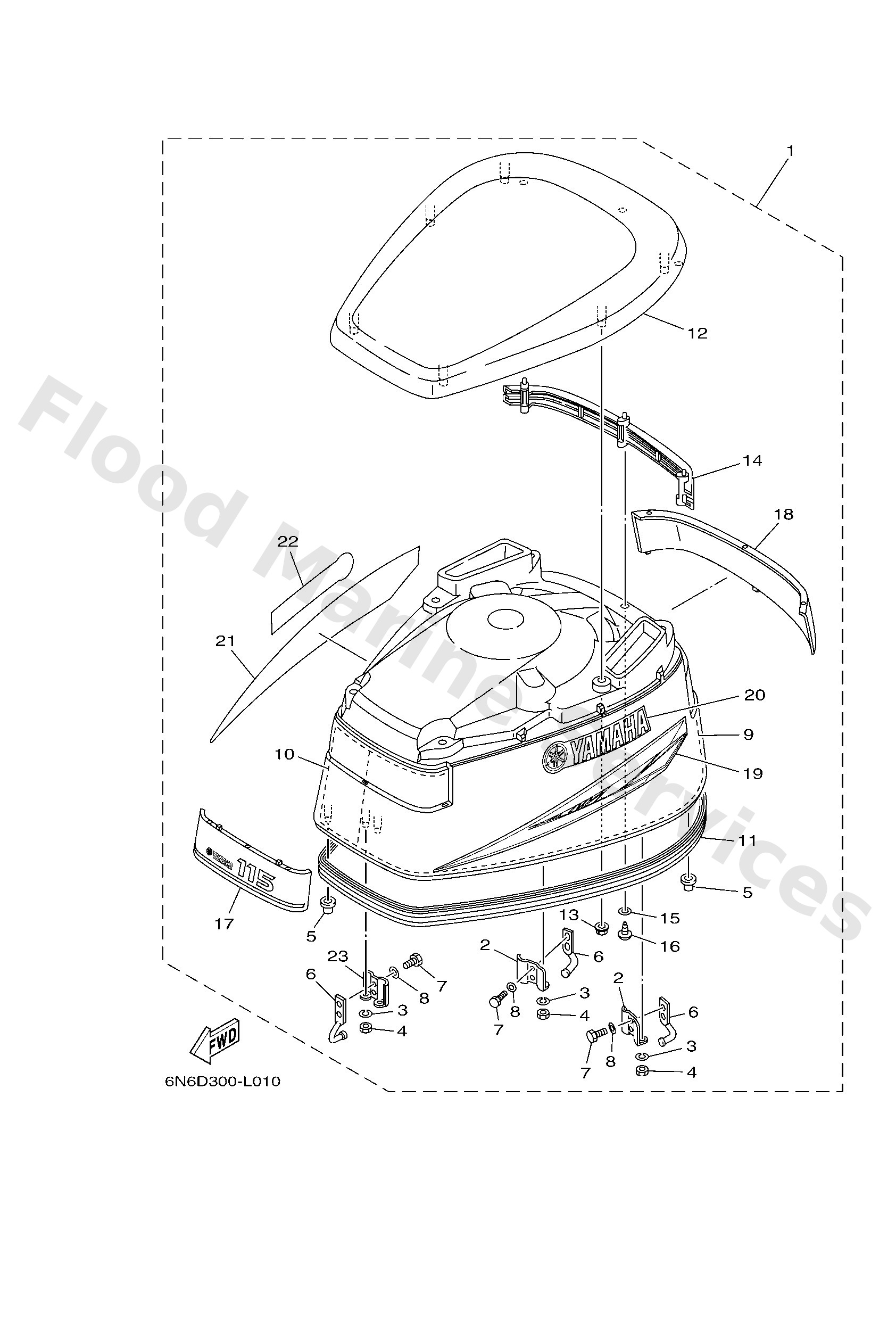

Diagram: TOP COWLING

Diagram

Parts List

6N64261000
Top Cowling assembly
Diagram Reference: 1
Get Part
6R34264700
Holder, clamp band
Diagram Reference: 2
Get Part
9299006100
Washer(6a1)
Diagram Reference: 3
Get Part
9538006600
Nut(661)
Diagram Reference: 4
Get Part
6R34266200
Damper
Diagram Reference: 5
Get Part
6R34281400
Hook, clamp
Diagram Reference: 6
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 7
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 8
Get Part
6N74261900
Damper, form
Diagram Reference: 9
Get Part
6N74262700
Damper, form
Diagram Reference: 10
Get Part
6N74261500
Seal
Diagram Reference: 11
Get Part
6N742613008D
Molding, air duct
Diagram Reference: 12
Get Part
9017906M24
Nut(6j8)
Diagram Reference: 13
Get Part
6N74263600
Louver, 2
Diagram Reference: 14
Get Part
9299004600
Washer, plain (646)
Diagram Reference: 15
Get Part
9778040520
Ybs83-420 screw,panh,tapping
Diagram Reference: 16
Get Part
6N64268640
Emblem, front
Diagram Reference: 17
Get Part
6N64268730
Emblem, rear
Diagram Reference: 18
Get Part
6N74267510
Graphic, side 1
Diagram Reference: 19
Get Part
6884268140
Mark, cowling
Diagram Reference: 20
Get Part
6N74267610
Graphic, side 2
Diagram Reference: 21
Get Part
6N74264700
Holder, clamp band
Diagram Reference: 23
Get Part
